Methoxy-X04 is a fluorescent dye reagent that penetrates the BBB (blood-brain barrier) and selectively binds to beta-sheets in dense central amyloid Aβ plaques.

Physicochemical Properties

Molecular Formula	C23H20O3
Molecular Weight	344.403106689453
Exact Mass	344.141
CAS #	863918-78-9
PubChem CID	16049314
Appearance	Light yellow to light brown solid powder
LogP	5.447
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	3
Rotatable Bond Count	5
Heavy Atom Count	26
Complexity	456
Defined Atom Stereocenter Count	0

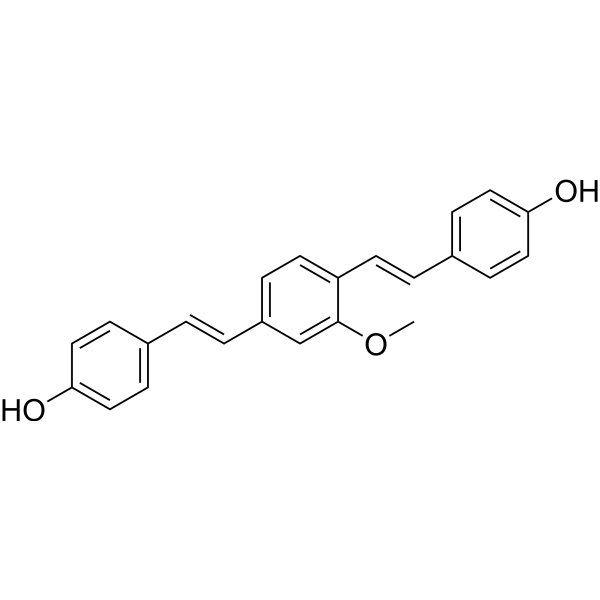

SMILES	COC1=C(C=CC(=C1)/C=C/C2=CC=C(C=C2)O)/C=C/C3=CC=C(C=C3)O
InChi Key	FGYNZFHVGOFCMD-KHVHPYDTSA-N
InChi Code	InChI=1S/C23H20O3/c1-26-23-16-19(3-2-17-6-12-21(24)13-7-17)5-11-20(23)10-4-18-8-14-22(25)15-9-18/h2-16,24-25H,1H3/b3-2+,10-4+
Chemical Name	4-[(E)-2-[4-[(E)-2-(4-hydroxyphenyl)ethenyl]-3-methoxyphenyl]ethenyl]phenol
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: This product requires protection from light (avoid light exposure) during transportation and storage.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

References

[1]. Correlative Light and Electron Microscopy to Study Microglial Interactions with β-Amyloid Plaques. J Vis Exp. 2016 Jun 1;(112):54060. [2]. Imaging Abeta plaques in living transgenic mice with multiphoton microscopy and methoxy-X04, a systemically administered Congo red derivative. J Neuropathol Exp Neurol. 2002 Sep;61(9):797-805.

Solubility Data

Solubility (In Vitro)

DMSO : ~25 mg/mL (~72.59 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 1.25 mg/mL (3.63 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 12.5 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: 1.25 mg/mL (3.63 mM) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), suspension solution; with ultrasonication. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 12.5 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.9036 mL	14.5180 mL	29.0360 mL
	5 mM	0.5807 mL	2.9036 mL	5.8072 mL
	10 mM	0.2904 mL	1.4518 mL	2.9036 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
