Maleimide-DOTA is a non-degradable ADC linker used in the preparation /synthesis of antibody active molecular conjugates (ADC).

Physicochemical Properties

Molecular Formula	C22H34N6O9
Molecular Weight	526.54
Exact Mass	526.238
CAS #	1006711-90-5
PubChem CID	66893931
Appearance	White to yellow solid powder
LogP	-9.3
Hydrogen Bond Donor Count	4
Hydrogen Bond Acceptor Count	13
Rotatable Bond Count	11
Heavy Atom Count	37
Complexity	846
Defined Atom Stereocenter Count	0

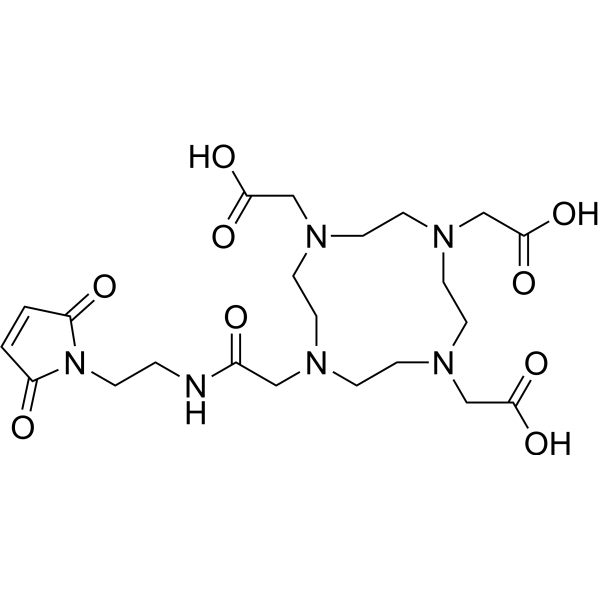

SMILES	O=C1C=CC(=O)N1CCNC(=O)CN1CCN(CC(O)=O)CCN(CC(O)=O)CCN(CC(O)=O)CC1
InChi Key	AUTDIWAXETZSGJ-UHFFFAOYSA-N
InChi Code	InChI=1S/C22H34N6O9/c29-17(23-3-4-28-18(30)1-2-19(28)31)13-24-5-7-25(14-20(32)33)9-11-27(16-22(36)37)12-10-26(8-6-24)15-21(34)35/h1-2H,3-16H2,(H,23,29)(H,32,33)(H,34,35)(H,36,37)
Chemical Name	2-[4,7-bis(carboxymethyl)-10-[2-[2-(2,5-dioxopyrrol-1-yl)ethylamino]-2-oxoethyl]-1,4,7,10-tetrazacyclododec-1-yl]acetic acid
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment (e.g. under nitrogen), avoid exposure to moisture and light.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	Non-cleavable Linker
ln Vitro	ADC is made up of an antibody and cytotoxic ADC that are linked together by an ADC linker.

Solubility Data

Solubility (In Vitro)

H2O : 100 mg/mL (189.92 mM) DMSO : 100 mg/mL (189.92 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 1.25 mg/mL (2.37 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 12.5 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 1.25 mg/mL (2.37 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 12.5 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 1.25 mg/mL (2.37 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 12.5 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly. Solubility in Formulation 4: 100 mg/mL (189.92 mM) in PBS (add these co-solvents sequentially from left to right, and one by one), clear solution; with ultrasonication.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.8992 mL	9.4960 mL	18.9919 mL
	5 mM	0.3798 mL	1.8992 mL	3.7984 mL
	10 mM	0.1899 mL	0.9496 mL	1.8992 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
