Mal-PEG6-acid is a PROTAC (PROteolysis TArgeting Chimera) linker based on PEG structure and can be used for the synthesis of PROTAC.

Physicochemical Properties

Molecular Formula	C19H31NO10
Molecular Weight	433.450146913528
Exact Mass	433.194
CAS #	518044-42-3
PubChem CID	70980870
Appearance	Colorless to light yellow liquid
Density	1.2±0.1 g/cm3
Boiling Point	578.2±50.0 °C at 760 mmHg
Flash Point	303.5±30.1 °C
Vapour Pressure	0.0±3.5 mmHg at 25°C
Index of Refraction	1.501
LogP	-2.16
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	7
Rotatable Bond Count	12
Heavy Atom Count	21
Complexity	376
Defined Atom Stereocenter Count	0

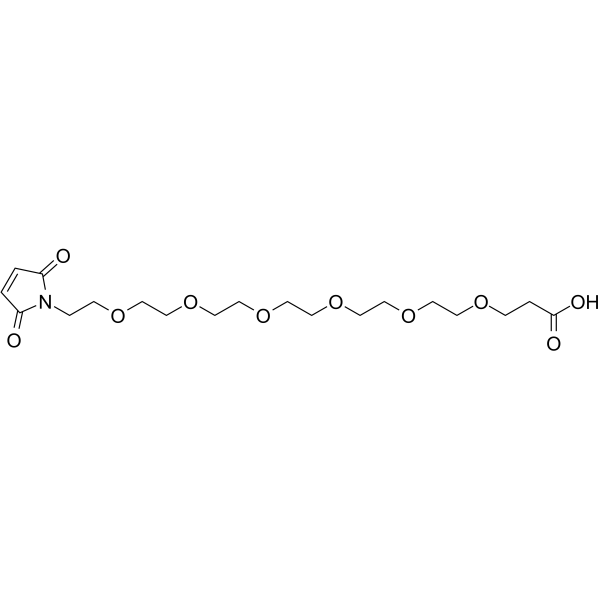

SMILES	O(CCOCCOCCOCCOCCOCCC(=O)O)CCN1C(C=CC1=O)=O
InChi Key	YSFOTVPQFVYTQX-UHFFFAOYSA-N
InChi Code	InChI=1S/C13H19NO7/c15-11-1-2-12(16)14(11)4-6-20-8-10-21-9-7-19-5-3-13(17)18/h1-2H,3-10H2,(H,17,18)
Chemical Name	3-[2-[2-[2-(2,5-dioxopyrrol-1-yl)ethoxy]ethoxy]ethoxy]propanoic acid
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: This product requires protection from light (avoid light exposure) during transportation and storage.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro

One ligand is for an E3 ubiquitin ligase, and the other is for the target protein; these two ligands are joined by a linker to form PROTACs. PROTACs target and selectively degrade target proteins by taking advantage of the intracellular ubiquitin-proteasome system.

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~230.71 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (5.77 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.5 mg/mL (5.77 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.5 mg/mL (5.77 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.3071 mL	11.5354 mL	23.0707 mL
	5 mM	0.4614 mL	2.3071 mL	4.6141 mL
	10 mM	0.2307 mL	1.1535 mL	2.3071 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
