ML354 is a selective PAR4 antagonist (inhibitor) with IC50 of 140 nM for PAR-4and a 71-fold selectivity versus PAR-1 (PAR-1IC50=10μM).

Physicochemical Properties

Molecular Formula	C16H14N2O3
Molecular Weight	282.29
Exact Mass	282.1
Elemental Analysis	C, 68.08; H, 5.00; N, 9.92; O, 17.00
CAS #	89159-60-4
PubChem CID	752812
Appearance	White to yellow solid
Density	1.29g/cm3
Boiling Point	544ºC at 760 mmHg
Flash Point	282.8ºC
Index of Refraction	1.646
LogP	3.769
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	3
Rotatable Bond Count	2
Heavy Atom Count	21
Complexity	378
Defined Atom Stereocenter Count	0

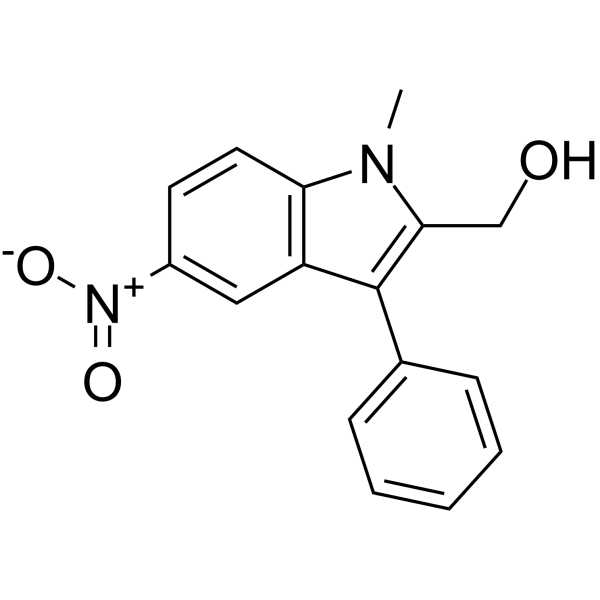

SMILES	CN1C2=C(C=C(C=C2)[N+](=O)[O-])C(=C1CO)C3=CC=CC=C3
InChi Key	GNJUKVGDCUKDLF-UHFFFAOYSA-N
InChi Code	InChI=1S/C16H14N2O3/c1-17-14-8-7-12(18(20)21)9-13(14)16(15(17)10-19)11-5-3-2-4-6-11/h2-9,19H,10H2,1H3
Chemical Name	(1-Methyl-5-nitro-3-phenylindol-2-yl)methanol
Synonyms	ML 354; ML-354; ML354;VU0099704;VU-0099704; VU 0099704
HS Tariff Code	2934.99.03.00
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	PAR4 (proteinase-activated receptor-4)
ln Vitro	ML354 is a probe compound with low molecular weight and a novel chemotype. As a PAR-4 antagonist, it can be utilized in vitro to further study PAR-4 activity. Based on the profile of ML354 and preliminary efforts described to replace the nitro functionality present we are encouraged by overall improvements made thus far, including plasma stability, free fraction, and potency. Efforts employing alternative azaindole regioisomers, as well as other substituted nitro indole replacements are ongoing.
References	[1]. Substituted indoles as selective protease activated receptor 4 (PAR-4) antagonists: Discovery and SAR of ML354. Bioorg Med Chem Lett. 2014 Oct 1;24(19):4708-4713.

Solubility Data

Solubility (In Vitro)

Soluble in DMSO

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	3.5425 mL	17.7123 mL	35.4246 mL
	5 mM	0.7085 mL	3.5425 mL	7.0849 mL
	10 mM	0.3542 mL	1.7712 mL	3.5425 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
