MPAK13-IN-1 is an inhibitor (blocker/antagonist) of MAPK13 (p38δ) with IC50 of 620 nM.

Physicochemical Properties

Molecular Formula	C20H23N5O2
Molecular Weight	365.42892
Exact Mass	365.185
CAS #	229002-10-2
PubChem CID	17941505
Appearance	Light yellow to yellow solid powder
LogP	3.3
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	4
Rotatable Bond Count	5
Heavy Atom Count	27
Complexity	481
Defined Atom Stereocenter Count	0
SMILES	O=C(NC1=CC=C(OC2=CC=NC=C2)C=C1)NC3=CC(C(C)(C)C)=NN3C
InChi Key	MHSLDASSAFCCDO-UHFFFAOYSA-N
InChi Code	InChI=1S/C20H23N5O2/c1-20(2,3)17-13-18(25(4)24-17)23-19(26)22-14-5-7-15(8-6-14)27-16-9-11-21-12-10-16/h5-13H,1-4H3,(H2,22,23,26)

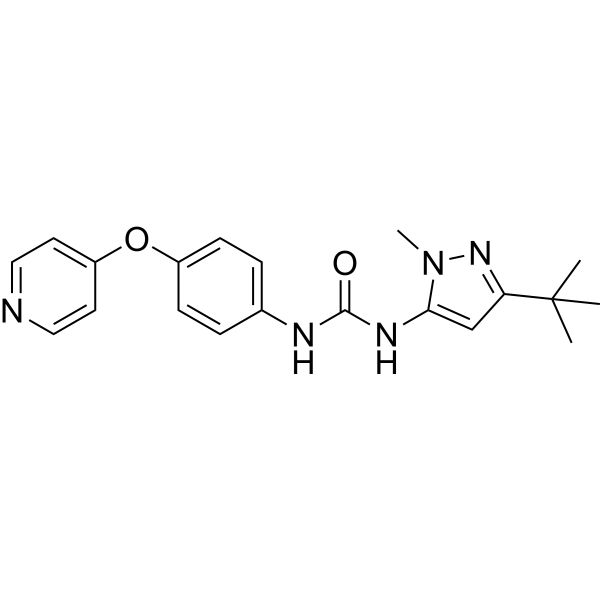

Chemical Name	1-(5-tert-butyl-2-methylpyrazol-3-yl)-3-(4-pyridin-4-yloxyphenyl)urea
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	In vero E6 cells, MPAK13-IN-1 had an IC50 of 4.63 μM[2].
Cell Assay	Cell viability assay [2] Cell Types: Vero E6 cells [2]. Tested Concentrations: 0-100 μM. Incubation Duration: Experimental Results: IC50 is 4.63 μM.
References	[1]. First comprehensive structural and biophysical analysis of MAPK13 inhibitors targeting DFG-in and DFG-out binding modes. Biochim Biophys Acta. 2016 Nov;1860(11 Pt A):2335-2344. [2]. The Global Phosphorylation Landscape of SARS-CoV-2 Infection. Cell. 2020 Aug 6;182(3):685-712.e19.

Solubility Data

Solubility (In Vitro)

DMSO : ≥ 250 mg/mL (~684.13 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.08 mg/mL (5.69 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.08 mg/mL (5.69 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.08 mg/mL (5.69 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.7365 mL	13.6825 mL	27.3650 mL
	5 mM	0.5473 mL	2.7365 mL	5.4730 mL
	10 mM	0.2737 mL	1.3683 mL	2.7365 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
