MAP4K4-IN-3 (Compound 17) is a potent and specific MAP4K4 inhibitor (antagonist) with IC50 of 14.9 nM in kinase assays and IC50 of 470 nM in cell assays. Has antidiabetic activity.

Physicochemical Properties

Molecular Formula	C15H12CLN5
Molecular Weight	297.742280960083
Exact Mass	297.078
CAS #	1811510-58-3
PubChem CID	127036775
Appearance	Off-white to light yellow solid powder
LogP	2.3
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	5
Rotatable Bond Count	2
Heavy Atom Count	21
Complexity	326
Defined Atom Stereocenter Count	0
SMILES	ClC1C=CC(=CC=1)C1C(N)=NC=C(C2=CN=C(N)N=C2)C=1
InChi Key	KSQDIECZAQKQQW-UHFFFAOYSA-N
InChi Code	InChI=1S/C15H12ClN5/c16-12-3-1-9(2-4-12)13-5-10(6-19-14(13)17)11-7-20-15(18)21-8-11/h1-8H,(H2,17,19)(H2,18,20,21)

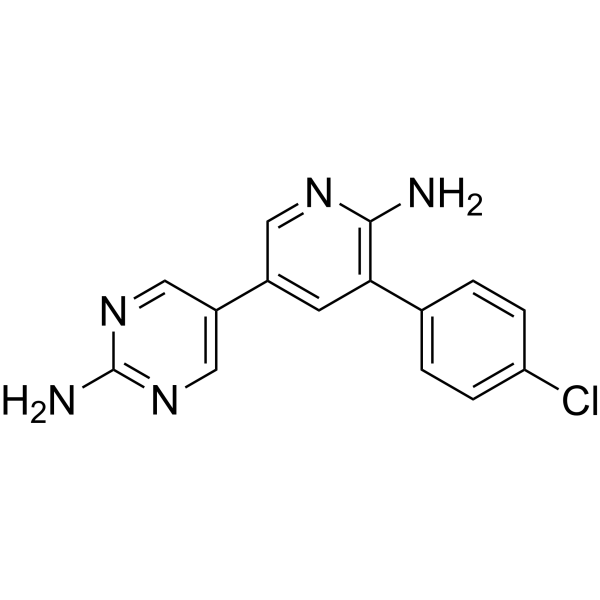

Chemical Name	5-[6-amino-5-(4-chlorophenyl)pyridin-3-yl]pyrimidin-2-amine
Synonyms	MAP4K4IN3; MAP4K4 IN 3
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: This product requires protection from light (avoid light exposure) during transportation and storage.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	MAP4K4 is a serine/threonine protein inhibitor that antidiabetic medications may find useful to target [1].
ln Vivo	Compound 2 (MAP4K4-IN-3; 25 mg/kg, dose) has a 5-day telemetry stability. There are numerous unfavorable drug responses. During the trial, there was a significant reduction in sleep and weight (7%) as compared to the controls. Treatment with MAP4K4-IN-3 increased maximal heart rate by 25 bpm for cardiovascular endpoints [2].
References	[1]. Discovery of an in Vivo Tool to Establish Proof-of-Concept for MAP4K4-Based AntidiabeticTreatment. ACS Med Chem Lett. 2015 Oct 6;6(11):1128-33. [2]. 2-Aminopyridine-Based Mitogen-Activated Protein Kinase Kinase Kinase Kinase 4 (MAP4K4) Inhibitors: Assessment of Mechanism-Based Safety. J Med Chem. 2018 Apr 12;61(7):3114-3125.

Solubility Data

Solubility (In Vitro)

DMSO : ~10 mg/mL (~33.59 mM)

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	3.3586 mL	16.7932 mL	33.5864 mL
	5 mM	0.6717 mL	3.3586 mL	6.7173 mL
	10 mM	0.3359 mL	1.6793 mL	3.3586 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
