LipidGreen 2 is a second generation small molecule probe for lipid imaging. Compared with previous LipidGreen, LipidGreen 2 has a better fluorescence signal and can selectively stain neutral lipids in cells and fat deposits in live zebrafish.

Physicochemical Properties

Molecular Formula	C22H29NO4
Molecular Weight	371.469966650009
Exact Mass	371.209
CAS #	1382764-52-4
PubChem CID	142712987
Appearance	Yellow to brown viscous liquid
LogP	5.4
Hydrogen Bond Donor Count	0
Hydrogen Bond Acceptor Count	5
Rotatable Bond Count	8
Heavy Atom Count	27
Complexity	616
Defined Atom Stereocenter Count	0
InChi Key	VFAFYBVPGKPJDO-UHFFFAOYSA-N
InChi Code	InChI=1S/C22H29NO4/c1-7-27-21(25)22(12-10-15(2)3)20(24)18-14-17(26-6)8-9-19(18)23(22)13-11-16(4)5/h8-11,14H,7,12-13H2,1-6H3

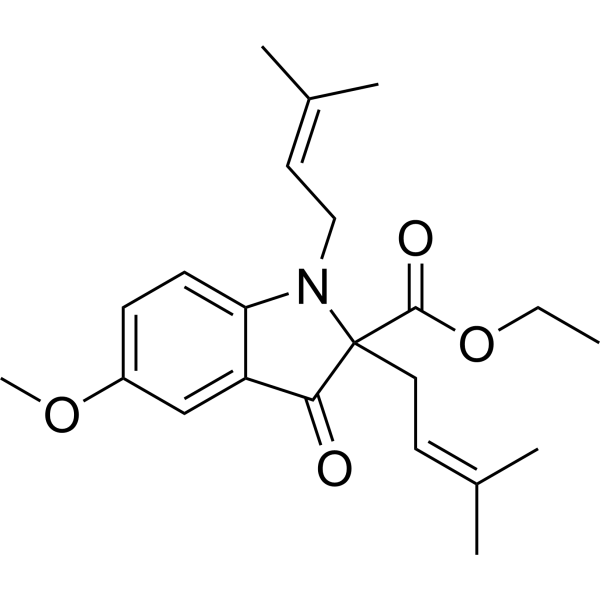

Chemical Name	ethyl 5-methoxy-1,2-bis(3-methylbut-2-enyl)-3-oxoindole-2-carboxylate
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: This product requires protection from light (avoid light exposure) during transportation and storage.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	In undifferentiated 3T3-L1 cells that are differentiated by treatment with IBMX, dexamethasone, and insulin, the surface of a spherical intracellular structure is stained by LipidGreen 2 (10 mM)[1].
References	[1]. Synthesis of LipidGreen2 and its application in lipid and fatty liver imaging. Mol Biosyst. 2013 Apr 5;9(4):630-3.

Solubility Data

Solubility (In Vitro)

DMSO: 100 mg/mL (269.20 mM) H2O: < 0.1 mg/mL

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (6.73 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: 2.5 mg/mL (6.73 mM) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), suspension solution; with ultrasonication. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.5 mg/mL (6.73 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.6920 mL	13.4600 mL	26.9201 mL
	5 mM	0.5384 mL	2.6920 mL	5.3840 mL
	10 mM	0.2692 mL	1.3460 mL	2.6920 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
