CCD Lipid01 is a cationic lipid used to deliver bioactive agents to cells and tissues (information disclosed in patent WO2015095340 A1).

Physicochemical Properties

Molecular Formula	C50H93NO9
Molecular Weight	852.2747
Exact Mass	851.685033
Elemental Analysis	C, 70.46; H, 11.00; N, 1.64; O, 16.89
CAS #	1799316-64-5
Related CAS #	CIN16645 HCl;1799316-64-5;
PubChem CID	118178658
Appearance	Colorless to light yellow liquid
LogP	15.5
Hydrogen Bond Donor Count	0
Hydrogen Bond Acceptor Count	10
Rotatable Bond Count	49
Heavy Atom Count	60
Complexity	998
Defined Atom Stereocenter Count	0
SMILES	O(C([H])([H])C([H])([H])C([H])([H])C([H])([H])C([H])([H])C([H])([H])C([H])([H])C([H])([H])[H])C([H])(C([H])([H])C([H])([H])C(=O)OC([H])([H])C([H])(C([H])([H])OC(=O)OC([H])([H])C([H])([H])C([H])([H])N(C([H])([H])C([H])([H])[H])C([H])([H])C([H])([H])[H])C([H])([H])OC(C([H])([H])C([H])([H])C([H])([H])C([H])([H])C([H])([H])C([H])([H])C([H])([H])/C(/[H])=C(/[H])\C([H])([H])/C(/[H])=C(/[H])\C([H])([H])C([H])([H])C([H])([H])C([H])([H])C([H])([H])[H])=O)OC([H])([H])C([H])([H])C([H])([H])C([H])([H])C([H])([H])C([H])([H])C([H])([H])C([H])([H])[H]
InChi Key	CHTXXFZHKGGQGX-IFLFXUNCSA-N
InChi Code	InChI=1S/C50H93NO9/c1-6-11-14-17-20-21-22-23-24-25-26-27-28-29-32-36-47(52)58-43-46(45-60-50(54)57-42-35-39-51(9-4)10-5)44-59-48(53)37-38-49(55-40-33-30-18-15-12-7-2)56-41-34-31-19-16-13-8-3/h20-21,23-24,46,49H,6-19,22,25-45H2,1-5H3/b21-20-,24-23-

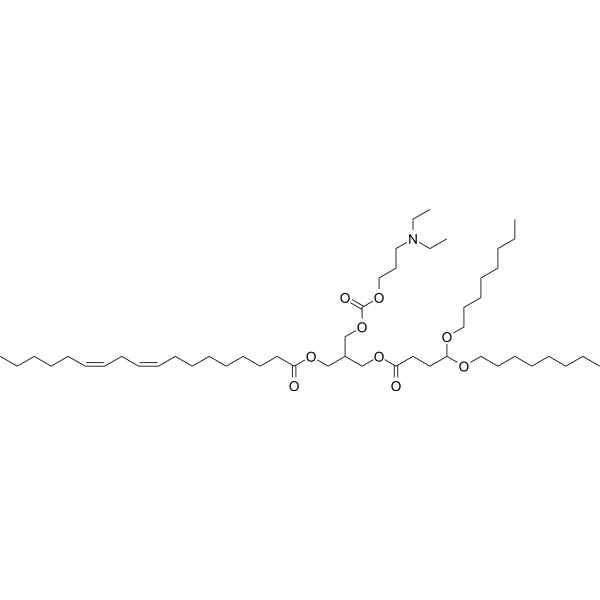

Chemical Name	[2-[3-(diethylamino)propoxycarbonyloxymethyl]-3-(4,4-dioctoxybutanoyloxy)propyl] (9Z,12Z)-octadeca-9,12-dienoate
Synonyms	1799316-64-5; CIN-16645; CCD Lipid01; CIN16645; (9Z,12Z)-3-((4,4-Bis(octyloxy)butanoyl)oxy)-2-((((3-(diethylamino)propoxy)carbonyl)oxy)methyl)propyl octadeca-9,12-dienoate; LP01; SCHEMBL16841239; EX-A7789;
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	Cationic lipid for gene delivery
ln Vitro	CCD Lipid01 (LP-01 lipid) is useful in lipid nanopparticle formulation for delivery of genes (e.g. DNA and RNA vaccines).
References	[1]. Lipids and lipid compositions for the delivery of active agents. WO2015095340A1.

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~117.33 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (2.93 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: 2.5 mg/mL (2.93 mM) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), suspension solution; with ultrasonication. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.5 mg/mL (2.93 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.1733 mL	5.8667 mL	11.7334 mL
	5 mM	0.2347 mL	1.1733 mL	2.3467 mL
	10 mM	0.1173 mL	0.5867 mL	1.1733 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
