L-NIL HCl is an inhibitor (blocker/antagonist) of inducible nitric oxide synthase (iNOS), with IC50 of 3.3 μM for miNOS.

Physicochemical Properties

Molecular Formula	C8H17N3O2.HCL
Molecular Weight	223.70042
Exact Mass	259.085
CAS #	150403-89-7
Related CAS #	L-NIL;53774-63-3;L-NIL dihydrochloride;159190-45-1
PubChem CID	9794509
Appearance	Typically exists as solid at room temperature
Boiling Point	369ºC at 760 mmHg
Melting Point	253-255ºC
Flash Point	177ºC
Vapour Pressure	1.86E-06mmHg at 25°C
LogP	2.95
Hydrogen Bond Donor Count	4
Hydrogen Bond Acceptor Count	4
Rotatable Bond Count	6
Heavy Atom Count	14
Complexity	192
Defined Atom Stereocenter Count	1

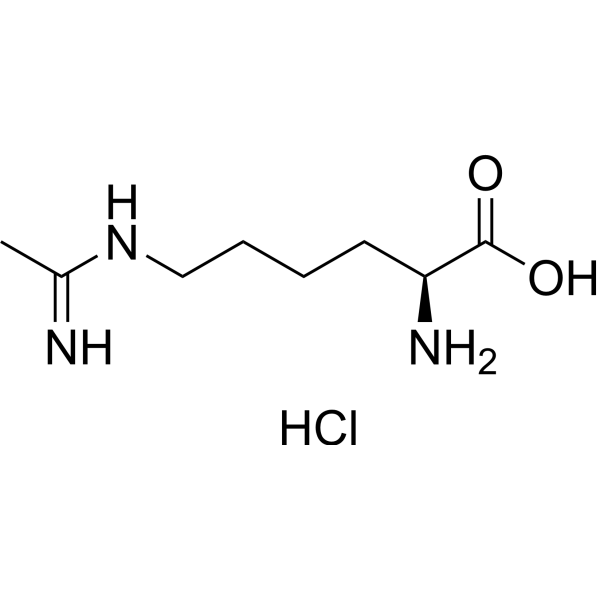

SMILES	CC(=N)NCCCC[C@@H](C(=O)O)N.Cl
InChi Key	HJYWSATZDBEAOS-FJXQXJEOSA-N
InChi Code	InChI=1S/C8H17N3O2.ClH/c1-6(9)11-5-3-2-4-7(10)8(12)13;/h7H,2-5,10H2,1H3,(H2,9,11)(H,12,13);1H/t7-;/m0./s1
Chemical Name	(2S)-2-amino-6-(1-aminoethylideneamino)hexanoic acid;hydrochloride
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	L-NIL inhibited rat brain constitutive NOS (rcNOS) and mouse inducible NOS in a concentration-dependent manner, with the inhibition of mouse inducible NOS being substantially stronger. L-NIL was 28 times more selective for mouse inducible NOS, as seen by its IC50 values of 3.3 and 92 pM for rcNOS and mouse inducible NOS, respectively. Furthermore, L-NIL has a potency against induced NOS in mice that is about six times greater than that of L-NMA or L-NNA [3].
ln Vivo	In mice with renal IR, L-NIL (10 and 30 mg/kg, IP) inhibits autophagy, oxidative stress, and inflammation [1].
Animal Protocol	Animal/Disease Models: Adult male Balb/c (20-25 g) [1]. Doses: 10 and 30 mg/kg. Route of Administration: intraperitoneal (ip) injection at the end of CLP and 6 hrs (hrs (hours)) after sepsis induction. Experimental Results: The increase in plasma NGAL was negligible compared to sham-operated mice. Resulting in a significant decrease in TLR4 and IL1β protein levels and clusterin transcripts. NFAT5 mRNA levels were increased compared to mice treated with vehicle. Promoted reduction in AR protein expression compared to vehicle-treated animals.
References	[1]. l-NIL prevents the ischemia and reperfusion injury involving TLR-4, GST, clusterin, and NFAT-5 in mice. Am J Physiol Renal Physiol. 2019 Apr 1;316(4):F624-F634. [2]. Intravenous Arginine Administration Downregulates NLRP3 Inflammasome Activity and Attenuates Acute Kidney Injury in Mice with Polymicrobial Sepsis. Mediators Inflamm. 2020 May 11;2020:3201635. [3]. L-N6-(1-iminoethyl)lysine: a selective inhibitor of inducible nitric oxide synthase. J Med Chem. 1994 Nov 11;37(23):3886-8.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	4.4703 mL	22.3514 mL	44.7027 mL
	5 mM	0.8941 mL	4.4703 mL	8.9405 mL
	10 mM	0.4470 mL	2.2351 mL	4.4703 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
