L-798106 is a potent and selective prostaglandin EP3 receptor blocker (antagonist) (Ki=0.3 nM). It also has micromolar activity at EP4, EP1 and EP2 receptors, with Kis of 916 nM, > 5000 nM and >5000 nM.

Physicochemical Properties

Molecular Formula	C27H22BRNO4S
Molecular Weight	536.44
Exact Mass	535.045
CAS #	244101-02-8
PubChem CID	15551229
Appearance	White to off-white solid powder
Density	1.425±0.06 g/cm3(Predicted)
LogP	7.191
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	4
Rotatable Bond Count	7
Heavy Atom Count	34
Complexity	810
Defined Atom Stereocenter Count	0

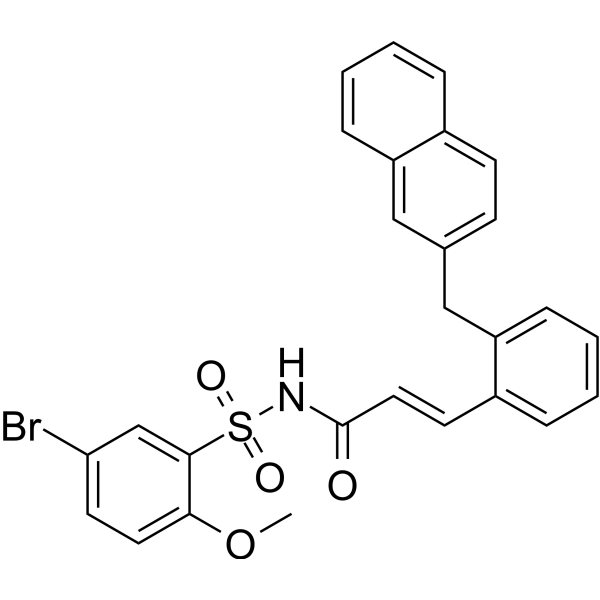

SMILES	COC1=C(C=C(C=C1)Br)S(=O)(=O)NC(=O)/C=C/C2=CC=CC=C2CC3=CC4=CC=CC=C4C=C3
InChi Key	ODTKFNUPVBULRJ-NTCAYCPXSA-N
InChi Code	InChI=1S/C27H22BrNO4S/c1-33-25-14-13-24(28)18-26(25)34(31,32)29-27(30)15-12-21-7-3-5-9-23(21)17-19-10-11-20-6-2-4-8-22(20)16-19/h2-16,18H,17H2,1H3,(H,29,30)/b15-12+
Chemical Name	(E)-N-(5-bromo-2-methoxyphenyl)sulfonyl-3-[2-(naphthalen-2-ylmethyl)phenyl]prop-2-enamide
Synonyms	L798,106; L 798,106; L-798,106
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	The contractile response brought on by an electric field stimulation is inhibited by L-798106 (200 nM) [2]. Acetylcholine release triggered by electric field stimulation is inhibited by L-798106 (10 μM) [2].
ln Vivo	In db/db mice, L-798106 (oral gavage; 50 and 100 μg/kg; once daily; 8 weeks) reduces AT inflammation and systemic insulin resistance [3].
Cell Assay	Cell viability assay [2] Cell Types: Guinea pig vas deferens Tested Concentrations: 200 nM Incubation Duration: Experimental Results: Apparent pA2 is 7.48±0.25. Cell viability assay [2] Cell Types: Guinea pig tracheal smooth muscle Tested Concentrations: 10 μM Incubation Duration: Experimental Results: The inhibitory effects of all tested drugs were Dramatically attenuated (% inhibition of EFS-induced release: 8-iso-PGE1 from 56.9 2-iso- PGE2 increased from 51.6 to 8.6; 8-iso-PGE2 increased from 51.6 to 9.2; PGE2 increased from 61.2 to 2.9; sulprostone increased from 55.9 to 18.8.
Animal Protocol	Animal/Disease Models: Male db/db mice [3] Doses: 50 and 100 μg/kg Route of Administration: po (oral gavage); 50 and 100 μg/kg; one time/day; 8 weeks Experimental Results: Inhibited fasting of db/db mice An increase in blood sugar levels. Suppression of increased pro-inflammatory gene expression in adipocytes isolated from epididymal AT of db/db mice.
References	[1]. Structure-activity relationship of cinnamic acylsulfonamide analogues on the human EP3 prostanoid receptor. Bioorg Med Chem. 2001 Aug;9(8):1977-84. [2]. E-ring 8-isoprostanes inhibit ACh release from parasympathetic nerves innervating guinea-pig trachea through agonism of prostanoid receptors of the EP3-subtype. Br J Pharmacol. 2004 Feb;141(4):600-9. [3]. Importance of adipocyte cyclooxygenase-2 and prostaglandin E2-prostaglandin E receptor 3 signaling in the development of obesity-induced adipose tissue inflammation and insulin resistance. FASEB J. 2016 Jun;30(6):2282-97.
Additional Infomation	L-798106 is an N-sulfonylcarboxamide resulting from the formal condensation of the carboxy group of o-naphthalen-2-ylcinnamic acid with the sulfonamide group of 5-bromo-2-methoxybenzenesulfonamide. It is a selective antagonist for the prostanoid receptor EP3, a prostaglandin receptor for prostaglandin E2 (PGE2). It has a role as a prostaglandin receptor antagonist. It is a N-sulfonylcarboxamide, a member of bromobenzenes and an aromatic ether.

Solubility Data

Solubility (In Vitro)

DMSO : ~10 mg/mL (~18.64 mM)

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.8641 mL	9.3207 mL	18.6414 mL
	5 mM	0.3728 mL	1.8641 mL	3.7283 mL
	10 mM	0.1864 mL	0.9321 mL	1.8641 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
