Kgp-IN-1 HCl is an arginine-specific P. gingivalis protease (Rgp) inhibitor. For more details, check and find compound 13-R from the patent WO2017201322A1.

Physicochemical Properties

Molecular Formula	C19H25CLF4N4O3
Molecular Weight	468.873417615891
Exact Mass	468.155
CAS #	2097865-47-7
Related CAS #	Kgp-IN-1;2097865-36-4
PubChem CID	135379556
Appearance	White to off-white solid powder
Hydrogen Bond Donor Count	4
Hydrogen Bond Acceptor Count	8
Rotatable Bond Count	10
Heavy Atom Count	31
Complexity	601
Defined Atom Stereocenter Count	1

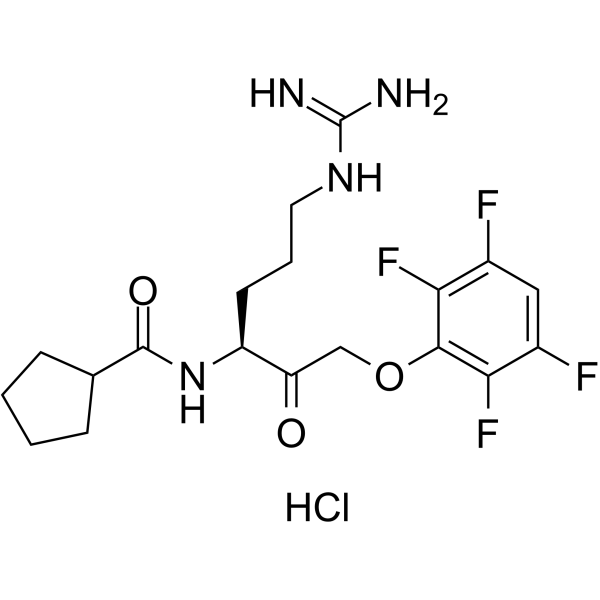

SMILES	C1CCC(C1)C(=O)N[C@@H](CCCN=C(N)N)C(=O)COC2=C(C(=CC(=C2F)F)F)F.Cl
InChi Key	PZWDKAZULMZGDB-ZOWNYOTGSA-N
InChi Code	InChI=1S/C19H24F4N4O3.ClH/c20-11-8-12(21)16(23)17(15(11)22)30-9-14(28)13(6-3-7-26-19(24)25)27-18(29)10-4-1-2-5-10;/h8,10,13H,1-7,9H2,(H,27,29)(H4,24,25,26);1H/t13-;/m0./s1
Chemical Name	N-[(3S)-6-(diaminomethylideneamino)-2-oxo-1-(2,3,5,6-tetrafluorophenoxy)hexan-3-yl]cyclopentanecarboxamide;hydrochloride
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment, avoid exposure to moisture.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	Rgp[1]
References	[1]. Stephen S. Dominy, et al. Treatment of osteoarthritis with gingipain blocking agents. WO2017201322A1.

Solubility Data

Solubility (In Vitro)

DMSO: 125 mg/mL (266.60 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.08 mg/mL (4.44 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.08 mg/mL (4.44 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.08 mg/mL (4.44 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.1328 mL	10.6639 mL	21.3279 mL
	5 mM	0.4266 mL	2.1328 mL	4.2656 mL
	10 mM	0.2133 mL	1.0664 mL	2.1328 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
