K114 is a potent amyloid fibril-specific fluorescent dye and a Congo Red analog, binding tightly to amyloid fibrils with an EC50 of 20-30 nM. K114 is an efficient detector of semen-derived enhancer of virus infection (SEVI).

Physicochemical Properties

Molecular Formula	C₂₂H₁₇BRO₂
Molecular Weight	393.27
Exact Mass	392.041
CAS #	872201-12-2
PubChem CID	44828481
Appearance	Light yellow to yellow solid powder
LogP	6.201
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	2
Rotatable Bond Count	4
Heavy Atom Count	25
Complexity	445
Defined Atom Stereocenter Count	0

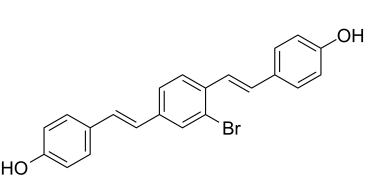

SMILES	C1=CC(=CC=C1/C=C/C2=CC(=C(C=C2)/C=C/C3=CC=C(C=C3)O)Br)O
InChi Key	OXPHQQMZTXMEGO-RJTULKDBSA-N
InChi Code	InChI=1S/C22H17BrO2/c23-22-15-18(2-1-16-5-11-20(24)12-6-16)4-10-19(22)9-3-17-7-13-21(25)14-8-17/h1-15,24-25H/b2-1+,9-3+
Chemical Name	4-[(E)-2-[3-bromo-4-[(E)-2-(4-hydroxyphenyl)ethenyl]phenyl]ethenyl]phenol
Synonyms	K114; K-114; K 114
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: This product requires protection from light (avoid light exposure) during transportation and storage.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	Due to self-quenching in depositable aggregates or micelles that experience increased fluorescence intensity and modifications in excitation and emission spectra following interaction with amyloid fibrils, K114 exhibits abnormally low buffer fluorescence [1].
References	[1]. Mechanism of A beta(1-40) fibril-induced fluorescence of (trans,trans)-1-bromo-2,5-bis(4-hydroxystyryl)benzene (K114). Biochemistry. 2005 Dec 6;44(48):15937-43. [2]. K114 (trans, trans)-bromo-2,5-bis(4-hydroxystyryl)benzene is an efficient detector of cationic amyloid fibrils. Protein Sci. 2015 Mar;24(3):420-5.
Additional Infomation	(E,E)-1-bromo-2,5-bis-(4-hydroxystyryl)benzene is an organobromine compound that is bromobenzene in which the hydrogens at positions 2 and 5 are replaced by 4-hydroxystyryl groups. It has a role as a fluorescent dye. It is an organobromine compound and a polyphenol.

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~254.28 mM)

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.5428 mL	12.7139 mL	25.4278 mL
	5 mM	0.5086 mL	2.5428 mL	5.0856 mL
	10 mM	0.2543 mL	1.2714 mL	2.5428 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
