IACS-9571 (ASIS-P040) HCl is an inhibitor (blocker/antagonist) of bromodomain proteins TRIM24 and BRPF1. The IC50 and Kds for TRIM24 are 8 nM and 31 nM respectively, and the Kd for BRPF1 is 14 nM.

Physicochemical Properties

Molecular Formula	C32H43CLN4O8S
Molecular Weight	679.223826646805
Exact Mass	678.249
CAS #	2319611-93-1
Related CAS #	IACS-9571;1800477-30-8
PubChem CID	131704487
Appearance	Light brown to brown solid powder
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	10
Rotatable Bond Count	16
Heavy Atom Count	46
Complexity	1030
Defined Atom Stereocenter Count	0
SMILES	Cl.S(C1C=CC(=C(C=1)OC)OC)(NC1C(=CC2=C(C=1)N(C)C(N2C)=O)OC1=CC(=CC(=C1)OCCCCN(C)C)OCCC)(=O)=O
InChi Key	MOYQIQKWUIYJMN-UHFFFAOYSA-N
InChi Code	InChI=1S/C32H42N4O8S.ClH/c1-8-14-42-22-16-23(43-15-10-9-13-34(2)3)18-24(17-22)44-30-21-28-27(35(4)32(37)36(28)5)20-26(30)33-45(38,39)25-11-12-29(40-6)31(19-25)41-7;/h11-12,16-21,33H,8-10,13-15H2,1-7H3;1H

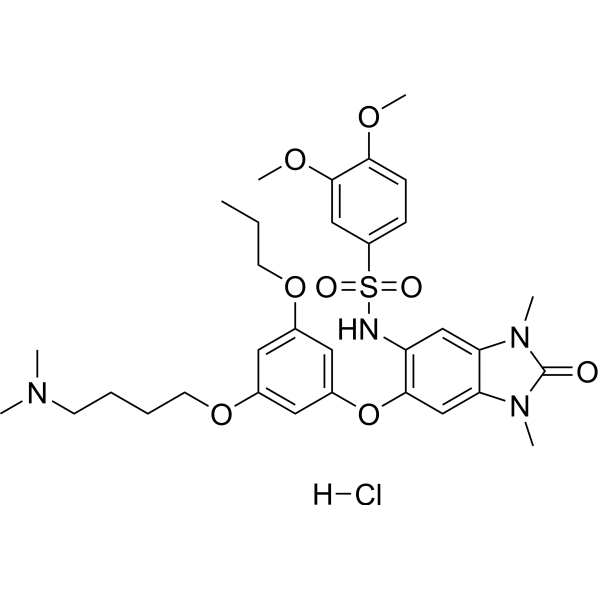

Chemical Name	N-[6-[3-[4-(dimethylamino)butoxy]-5-propoxyphenoxy]-1,3-dimethyl-2-oxobenzimidazol-5-yl]-3,4-dimethoxybenzenesulfonamide;hydrochloride
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment, avoid exposure to moisture.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	IC50: 8 nM (TRIM24)[1] Kd: 31 nM (TRIM24), 14 nM (BRPF1)[1]
ln Vitro	IACS-9571 hydrochloride hydrochloride has an EC50 of 50 nM, which indicates good cellular potency. Strongly active against a group of 32 bromodomains is IACS-9571 hydrochloride (1 μM). With a selectivity of 9 and 21 fold for BRPF2 and BRPF3, respectively, IACS-9571 hydrochloride is a dual TRIM24/BRPF1 inhibitor that is selective (Kd=1.3/2.1 nM). With respect to BRD4, IACS-9571 hydrochloride hydrochloride exhibits about 7700-fold selectivity over TRIM24 and does not interact with the BET subfamily of bromodomains (1, 2) [1].
References	[1]. Structure-Guided Design of IACS-9571, a Selective High-Affinity Dual TRIM24-BRPF1 Bromodomain Inhibitor. J Med Chem. 2016 Feb 25;59(4):1440-54.

Solubility Data

Solubility (In Vitro)

DMSO : 125 mg/mL (184.03 mM ) H2O : 10 mg/mL (14.72 mM)

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.4723 mL	7.3614 mL	14.7228 mL
	5 mM	0.2945 mL	1.4723 mL	2.9446 mL
	10 mM	0.1472 mL	0.7361 mL	1.4723 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
