Glycosyldiosgenin is a synthetic surfactant and detergent used for protein extraction from membranes for structural and functional studies, as well as for single-particle cryo-electron microscopy (cryoEM) studies of membrane proteins.

Physicochemical Properties

Molecular Formula	C56H92O25
Molecular Weight	1165.31470108032
Exact Mass	1164.592
CAS #	1402423-29-3
PubChem CID	162642462
Appearance	White to off-white solid powder
LogP	-2
Hydrogen Bond Donor Count	14
Hydrogen Bond Acceptor Count	25
Rotatable Bond Count	18
Heavy Atom Count	81
Complexity	2020
Defined Atom Stereocenter Count	31

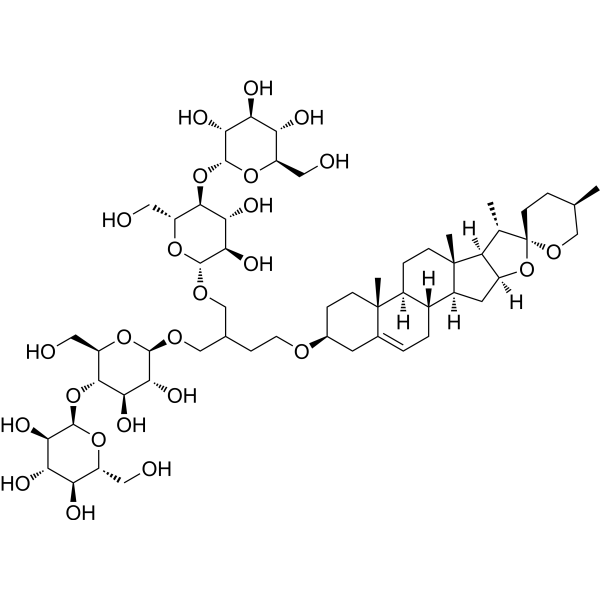

SMILES	C[C@@H]1CC[C@@]2([C@H]([C@H]3[C@@H](O2)C[C@@H]4[C@@]3(CC[C@H]5[C@H]4CC=C6[C@@]5(CC[C@@H](C6)OCCC(CO[C@H]7[C@@H]([C@H]([C@@H]([C@H](O7)CO)O[C@@H]8[C@@H]([C@H]([C@@H]([C@H](O8)CO)O)O)O)O)O)CO[C@H]9[C@@H]([C@H]([C@@H]([C@H](O9)CO)O[C@@H]2[C@@H]([C@H]([C@@H]([C@H](O2)CO)O)O)O)O)O)C)C)C)OC1
InChi Key	LKBFXDNKNZXHHW-OWZYDGQDSA-N
InChi Code	InChI=1S/C56H92O25/c1-24-7-13-56(74-21-24)25(2)37-32(81-56)16-31-29-6-5-27-15-28(8-11-54(27,3)30(29)9-12-55(31,37)4)71-14-10-26(22-72-50-46(69)42(65)48(35(19-59)77-50)79-52-44(67)40(63)38(61)33(17-57)75-52)23-73-51-47(70)43(66)49(36(20-60)78-51)80-53-45(68)41(64)39(62)34(18-58)76-53/h5,24-26,28-53,57-70H,6-23H2,1-4H3/t24-,25+,28+,29-,30+,31+,32+,33-,34-,35-,36-,37+,38-,39-,40+,41+,42-,43-,44-,45-,46-,47-,48-,49-,50-,51-,52-,53-,54+,55+,56-/m1/s1
Chemical Name	(2R,3R,4S,5S,6R)-2-[(2R,3S,4R,5R,6R)-6-[2-[[(2R,3R,4R,5S,6R)-3,4-dihydroxy-6-(hydroxymethyl)-5-[(2R,3R,4S,5S,6R)-3,4,5-trihydroxy-6-(hydroxymethyl)oxan-2-yl]oxyoxan-2-yl]oxymethyl]-4-[(1S,2S,4S,5'R,6R,7S,8R,9S,12S,13R,16S)-5',7,9,13-tetramethylspiro[5-oxapentacyclo[10.8.0.02,9.04,8.013,18]icos-18-ene-6,2'-oxane]-16-yl]oxybutoxy]-4,5-dihydroxy-2-(hydroxymethyl)oxan-3-yl]oxy-6-(hydroxymethyl)oxane-3,4,5-triol
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: This product requires protection from light (avoid light exposure) during transportation and storage.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	In 16 hours, the bispermate translocation BC (TatBC) complex is solubilized and clamped by glyco-diosgenin [1].
References	[1]. In meso crystallogenesis. Compatibility of the lipid cubic phase with the synthetic digitonin analogue, glyco-diosgenin. J Appl Crystallogr. 2020 Mar 25;53(Pt 2):530-535. [2]. Precursor-Receptor Interactions in the Twin Arginine Protein Transport Pathway Probed with a New Receptor Complex Preparation. Biochemistry. 2018 Mar 13;57(10):1663-1671.

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~85.81 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.08 mg/mL (1.78 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.08 mg/mL (1.78 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.08 mg/mL (1.78 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	0.8581 mL	4.2907 mL	8.5813 mL
	5 mM	0.1716 mL	0.8581 mL	1.7163 mL
	10 mM	0.0858 mL	0.4291 mL	0.8581 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
