Gap19 is a nine-amino-acid peptide developed from the Cx43 cytoplasmic loop (CL) and a potent, selective connexin 43 (Cx43) hemichannel blocker. Gap19 prevents the intramolecular interaction of the C terminus (CT) with CL. Gap19 does not block GJ channels or Cx40/pannexin-1 hemichannels. Gap19 has a protective effect on myocardium.

Physicochemical Properties

Molecular Formula	C55H96N14O13
Molecular Weight	1161.43675327301
Exact Mass	1160.728
CAS #	1507930-57-5
Related CAS #	Gap19 TFA
PubChem CID	91691126
Appearance	Typically exists as solid at room temperature
LogP	-5.7
Hydrogen Bond Donor Count	16
Hydrogen Bond Acceptor Count	18
Rotatable Bond Count	45
Heavy Atom Count	82
Complexity	2010
Defined Atom Stereocenter Count	11

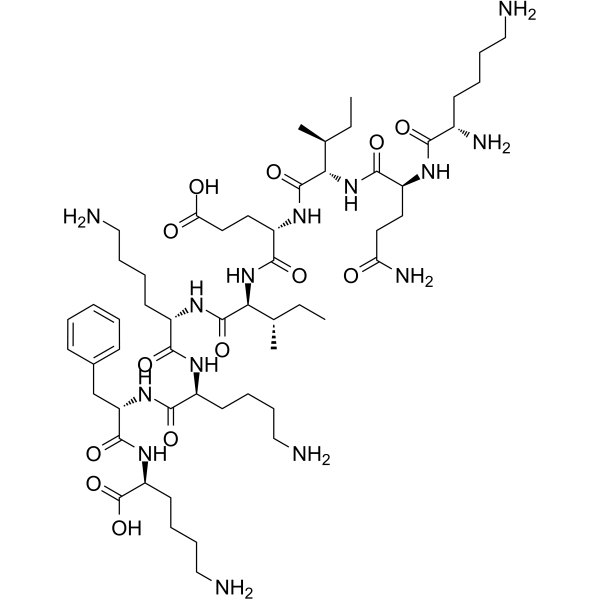

SMILES	CC[C@H](C)[C@@H](C(=O)N[C@@H](CCC(=O)O)C(=O)N[C@@H]([C@@H](C)CC)C(=O)N[C@@H](CCCCN)C(=O)N[C@@H](CCCCN)C(=O)N[C@@H](CC1=CC=CC=C1)C(=O)N[C@@H](CCCCN)C(=O)O)NC(=O)[C@H](CCC(=O)N)NC(=O)[C@H](CCCCN)N
InChi Key	IEAKEKFIXUZWEH-PKMKMBMKSA-N
InChi Code	InChI=1S/C55H96N14O13/c1-5-33(3)45(69-51(77)40(25-27-44(71)72)65-54(80)46(34(4)6-2)68-50(76)39(24-26-43(61)70)62-47(73)36(60)20-10-14-28-56)53(79)64-38(22-12-16-30-58)48(74)63-37(21-11-15-29-57)49(75)67-42(32-35-18-8-7-9-19-35)52(78)66-41(55(81)82)23-13-17-31-59/h7-9,18-19,33-34,36-42,45-46H,5-6,10-17,20-32,56-60H2,1-4H3,(H2,61,70)(H,62,73)(H,63,74)(H,64,79)(H,65,80)(H,66,78)(H,67,75)(H,68,76)(H,69,77)(H,71,72)(H,81,82)/t33-,34-,36-,37-,38-,39-,40-,41-,42-,45-,46-/m0/s1
Chemical Name	(2S)-6-amino-2-[[(2S)-2-[[(2S)-6-amino-2-[[(2S)-6-amino-2-[[(2S,3S)-2-[[(2S)-2-[[(2S,3S)-2-[[(2S)-5-amino-2-[[(2S)-2,6-diaminohexanoyl]amino]-5-oxopentanoyl]amino]-3-methylpentanoyl]amino]-4-carboxybutanoyl]amino]-3-methylpentanoyl]amino]hexanoyl]amino]hexanoyl]amino]-3-phenylpropanoyl]amino]hexanoic acid
Synonyms	Gap19; Gap-19
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	Gap19 lowers mitochondrial potassium uptake by 250 μM for 30 minutes [1]. In HeLa-Cx43 cells, Gap19 (400 μM) inhibits single half-channel currents [2]. Ventricular cardiomyocytes' hemichannel single currents are inhibited by Gap19 (100 μM) [2]. Both in vitro and in vivo, Gap19 (250 μM, 30 min) guards against myocardial ischemia/reperfusion injury [2].
ln Vivo	Gap19 (intravenous; 25 mg/kg; 10 minutes before ligation) significantly reduces infarct size by approximately one-fifth [2].
Animal Protocol	Animal/Disease Models: C57/BL6 black mouse [2] Doses: 25 mg/kg Route of Administration: IV; 10 minutes before ligation Experimental Results: The infarct area was Dramatically diminished by about one-fifth.
References	[1]. Connexin 43 impacts on mitochondrial potassium uptake. Front Pharmacol. 2013 Jun 6;4:73. [2]. Selective inhibition of Cx43 hemichannels by Gap19 and its impact on myocardial ischemia/reperfusion injury. Basic Res Cardiol. 2013 Jan;108(1):309.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	0.8610 mL	4.3050 mL	8.6100 mL
	5 mM	0.1722 mL	0.8610 mL	1.7220 mL
	10 mM	0.0861 mL	0.4305 mL	0.8610 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
