GRGDSPK (EMD 56574) is an arginine-glycine-aspartic acid (RGD)-containing peptide. GRGDSPK is a competitive and reversible inhibitory peptide that can inhibit integrin-fibronectin binding. GRGDSPK may be utilized to study the role of integrins in bone formation and resorption.

Physicochemical Properties

Molecular Formula	C28H49N11O11
Molecular Weight	715.75576
Exact Mass	715.361
CAS #	111119-28-9
Related CAS #	GRGDSPK TFA
PubChem CID	130667
Appearance	White to off-white solid powder
Density	1.59 g/cm3
Index of Refraction	1.672
LogP	-10.7
Hydrogen Bond Donor Count	12
Hydrogen Bond Acceptor Count	14
Rotatable Bond Count	23
Heavy Atom Count	50
Complexity	1250
Defined Atom Stereocenter Count	5

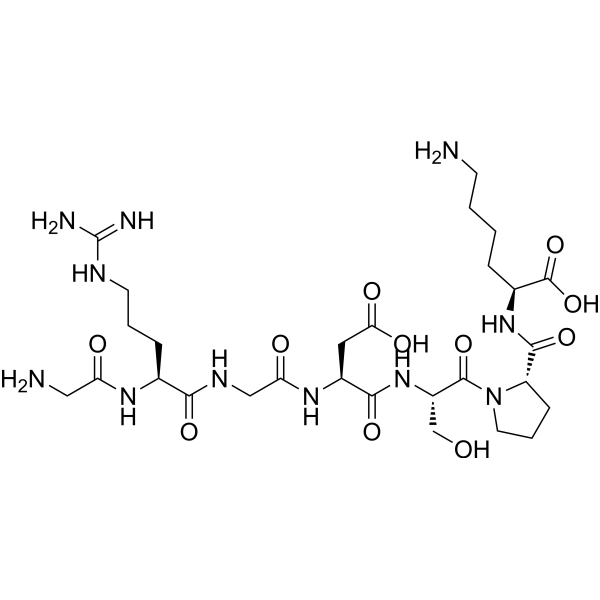

SMILES	C1C[C@H](N(C1)C(=O)[C@H](CO)NC(=O)[C@H](CC(=O)O)NC(=O)CNC(=O)[C@H](CCCN=C(N)N)NC(=O)CN)C(=O)N[C@@H](CCCCN)C(=O)O
InChi Key	ZRVZOBGMZWVJOS-VMXHOPILSA-N
InChi Code	InChI=1S/C28H49N11O11/c29-8-2-1-5-16(27(49)50)37-25(47)19-7-4-10-39(19)26(48)18(14-40)38-24(46)17(11-22(43)44)36-21(42)13-34-23(45)15(35-20(41)12-30)6-3-9-33-28(31)32/h15-19,40H,1-14,29-30H2,(H,34,45)(H,35,41)(H,36,42)(H,37,47)(H,38,46)(H,43,44)(H,49,50)(H4,31,32,33)/t15-,16-,17-,18-,19-/m0/s1
Chemical Name	(2S)-6-amino-2-[[(2S)-1-[(2S)-2-[[(2S)-2-[[2-[[(2S)-2-[(2-aminoacetyl)amino]-5-(diaminomethylideneamino)pentanoyl]amino]acetyl]amino]-3-carboxypropanoyl]amino]-3-hydroxypropanoyl]pyrrolidine-2-carbonyl]amino]hexanoic acid
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment, avoid exposure to moisture.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro

GRGDSPK (EMD 56574; RGD; 0.1-50 μM; for 4 days) inhibits mineralization in parietal bones separated from pregnant Sprague-Dawley rats on day 18 in a dose-dependent manner as determined by calcium content and 70 bone tissue area. 1]. For four days, GRGDSPK (10, 50 μM) can drastically alter the shape of bones and kill osteoblasts and mineralized matrix tissue [1]. When added to the culture medium, GRGDSPK (RGD; 250 μM) greatly increases the average size of wild-type cell aggregates and effectively prevents integrin-fibronectin binding [2]. Wild-type mesendodermal progenitors show significantly decreased adhesion and work upon the addition of GRGDSPK (250 μM), suggesting that the observed detachment parameters are specific for fibronectin and involve integrins expressed in mesendodermal progenitors [2]. Reduced cleavage, which is a dose-dependent effect of GRGDSPK (containing RGD, 1.5 mM, 1.0 mM, and 0.5 mM) and RGD-modified peptides, prevents sperm from fertilizing bovine oocytes [3].

References

[1]. Synthetic Peptide Containing Arg-Gly-Asp Inhibits Bone Formation and Resorption in a Mineralizing Organ Culture System of Fetal Rat Parietal Bones. J Bone Miner Res. 1994 Feb;9(2):193-201. [2]. Measuring Cell Adhesion Forces of Primary Gastrulating Cells From Zebrafish Using Atomic Force Microscopy. J Cell Sci. 2005 Sep 15;118(Pt 18):4199-206. [3]. Effects of amino acid substitutions in and around the arginine-glycine-aspartic acid (RGD) sequence on fertilization and parthenogenetic development in mature bovine oocytes. Mol Reprod Dev. 2006 May;73(5):651-7.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.3971 mL	6.9856 mL	13.9712 mL
	5 mM	0.2794 mL	1.3971 mL	2.7942 mL
	10 mM	0.1397 mL	0.6986 mL	1.3971 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
