Edoxaban impurity 4 is an impurity in Edoxaban. Edoxaban (DU-176) is a selective and orally bioactive factor Xa (FXa) inhibitor (antagonist) with Ki of 0.561 nM and 2.98 nM for free FXa and prothrombin, respectively. Edoxaban is an anticoagulant used to prevent strokes.

Physicochemical Properties

Molecular Formula	C21H30CLN5O5
Molecular Weight	467.95
Exact Mass	467.193
CAS #	480452-36-6
PubChem CID	46911214
Appearance	White to off-white solid powder
Density	1.3±0.1 g/cm3
Index of Refraction	1.569
LogP	1.24
Hydrogen Bond Donor Count	3
Hydrogen Bond Acceptor Count	6
Rotatable Bond Count	6
Heavy Atom Count	32
Complexity	711
Defined Atom Stereocenter Count	3
SMILES	CC(C)(C)OC(=O)N[C@@H]1C[C@H](CC[C@@H]1NC(=O)C(=O)NC2=NC=C(C=C2)Cl)C(=O)N(C)C
InChi Key	YJDLJNAWLBVIRF-AEGPPILISA-N
InChi Code	InChI=1S/C21H30ClN5O5/c1-21(2,3)32-20(31)25-15-10-12(19(30)27(4)5)6-8-14(15)24-17(28)18(29)26-16-9-7-13(22)11-23-16/h7,9,11-12,14-15H,6,8,10H2,1-5H3,(H,24,28)(H,25,31)(H,23,26,29)/t12-,14-,15+/m0/s1

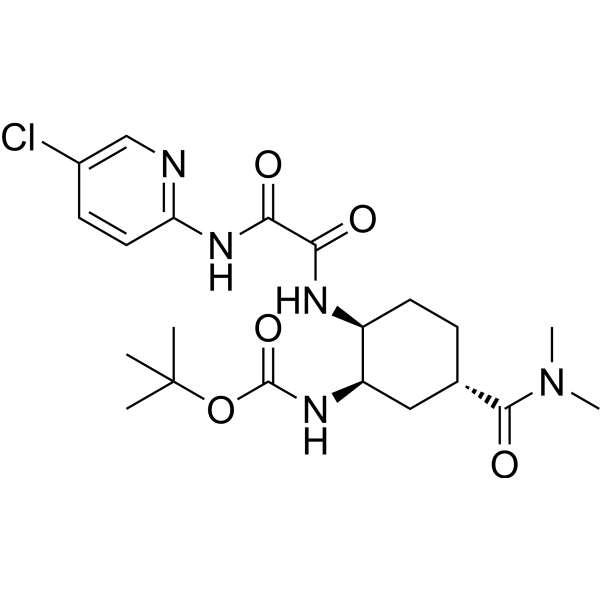

Chemical Name	tert-butyl N-[(1R,2S,5S)-2-[[2-[(5-chloropyridin-2-yl)amino]-2-oxoacetyl]amino]-5-(dimethylcarbamoyl)cyclohexyl]carbamate
Synonyms	480452-36-6; tert-Butyl ((1R,2S,5S)-2-((2-((5-chloropyridin-2-yl)amino)-2-oxoacetyl)amino)-5-(dimethylaminocarbonyl)cyclohexyl)carbamate; tert-Butyl [(1R,2S,5S)-2-[[2-[(5-chloropyridin-2-yl)amino]-2-oxoacetyl]amino]-5-(dimethylaminocarbonyl)cyclohexyl]carbamate; 836-116-0; Edoxaban impurity 4; tert-butyl (1R,2S,5S)-2-(2-(5-chloropyridin-2-ylamino)-2-oxoacetamido)-5-(dimethylcarbamoyl)cyclohexylcarbamate; tert-butyl N-[(1R,2S,5S)-2-[[2-[(5-chloropyridin-2-yl)amino]-2-oxoacetyl]amino]-5-(dimethylcarbamoyl)cyclohexyl]carbamate; (1R, 2S, 5S)-tert-Butyl Edoxaban;
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: This product requires protection from light (avoid light exposure) during transportation and storage.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	Edoxaban impurity
References	[1]. DU-176b, a potent and orally active factor Xa inhibitor: in vitro and in vivo pharmacological profiles. J Thromb Haemost. 2008 Sep;6(9):1542-9. [2]. The Effects of the Antiplatelet Agents, Aspirin and Naproxen, on Pharmacokinetics and Pharmacodynamics of the Anticoagulant Edoxaban, a Direct Factor Xa Inhibitor. J Cardiovasc Pharmacol. 2013 Apr 23.
Additional Infomation	Edoxaban is an oral factor Xa (FXa) inhibitor in clinical development for stroke prevention in patients with atrial fibrillation, an elderly population that frequently receives aspirin (ASA) and/or nonsteroidal anti-inflammatory drugs for concurrent illnesses. Three studies were conducted to evaluate the pharmacokinetic and pharmacodynamic interactions of edoxaban 60 mg coadministered with low-dose (100 mg) ASA, high-dose (325 mg) ASA, or naproxen (500 mg) in healthy subjects (n = 126). Template bleeding times (BT) were measured. Mean baseline (predose) BT for the 3 studies ranged from 4.72 to 6.13 minutes. Edoxaban administered alone increased BT by 21%-35% (4 hours post dose) from baseline. Concomitant administration of edoxaban with high-dose ASA, low-dose ASA, or naproxen increased BT approximately 2-fold showing an additive effect greater than either agent administered alone. Edoxaban pharmacokinetics were not affected by concomitant low-dose ASA or naproxen, but high-dose ASA increased systemic exposure of edoxaban by approximately 30%. The effects of edoxaban on prothrombin time, activated partial thromboplastin time, international normalized ratio, anti-FXa, and intrinsic FXa activity were not influenced by administration with ASA or naproxen. Inhibition of platelet aggregation by high-dose ASA, low-dose ASA, or naproxen was not affected by edoxaban. Concomitant administration of edoxaban and ASA or naproxen was well tolerated. [2] Background: Factor Xa (FXa), a key serine protease that converts prothrombin to thrombin in the coagulation cascade, is a promising target enzyme for the prophylaxis and treatment of thromboembolic diseases. DU-176b is a novel antithrombotic agent that directly inhibits FXa activity. Objective: To evaluate the in vitro pharmacological profiles and in vivo effects of DU-176b in animal models of thrombosis and bleeding. Methods: In vitro, FXa inhibition, specificity and anticoagulant activities were examined. Oral absorption was studied in rats and cynomolgus monkeys. In vivo effects were studied in rat and rabbit models of venous thrombosis and tail bleeding. Results: DU-176b inhibited FXa with Ki values of 0.561 nm for free FXa, 2.98 nm for prothrombinase, and exhibited >10 000-fold selectivity for FXa. In human plasma, DU-176b doubled prothrombin time and activated partial thromboplastin time at concentrations of 0.256 and 0.508 microm, respectively. DU-176b did not impair platelet aggregation by ADP, collagen or U46619. DU-176b was highly absorbed in rats and monkeys, as demonstrated by more potent anti-Xa activity and higher drug concentration in plasma following oral administration than a prototype FXa inhibitor, DX-9065a. In vivo, DU-176b dose-dependently inhibited thrombus formation in rat and rabbit thrombosis models, although bleeding time in rats was not significantly prolonged at an antithrombotic dose. Conclusions: DU-176b is a more potent and selective FXa inhibitor with high oral bioavailability compared with its prototype, DX-9065a. DU-176b represents a promising new anticoagulant for the prophylaxis and treatment of thromboembolic diseases. [1]

Solubility Data

Solubility (In Vitro)

DMSO: 50 mg/mL (106.85 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (5.34 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.1370 mL	10.6849 mL	21.3698 mL
	5 mM	0.4274 mL	2.1370 mL	4.2740 mL
	10 mM	0.2137 mL	1.0685 mL	2.1370 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
