Mirk-IN-1 (Dyrk1B/A-IN-1) is a highly efficient and selective inhibitor of Dyrk1B and Dyrk1A, with IC50s of 68 and 22nM respectively.

Physicochemical Properties

Molecular Formula	C23H17CL2N5O4
Molecular Weight	498.32
Exact Mass	497.065
CAS #	1386979-55-0
PubChem CID	57523919
Appearance	White to off-white solid powder
Density	1.5±0.1 g/cm3
Index of Refraction	1.678
LogP	4.21
Hydrogen Bond Donor Count	3
Hydrogen Bond Acceptor Count	6
Rotatable Bond Count	6
Heavy Atom Count	34
Complexity	812
Defined Atom Stereocenter Count	0
InChi Key	CQKBSRPVZZLCJE-UHFFFAOYSA-N
InChi Code	InChI=1S/C23H17Cl2N5O4/c1-34-23-27-11-14-8-16(22(33)29-19(14)30-23)21(32)28-18-9-13(5-6-17(18)25)20(31)26-10-12-3-2-4-15(24)7-12/h2-9,11H,10H2,1H3,(H,26,31)(H,28,32)(H,27,29,30,33)

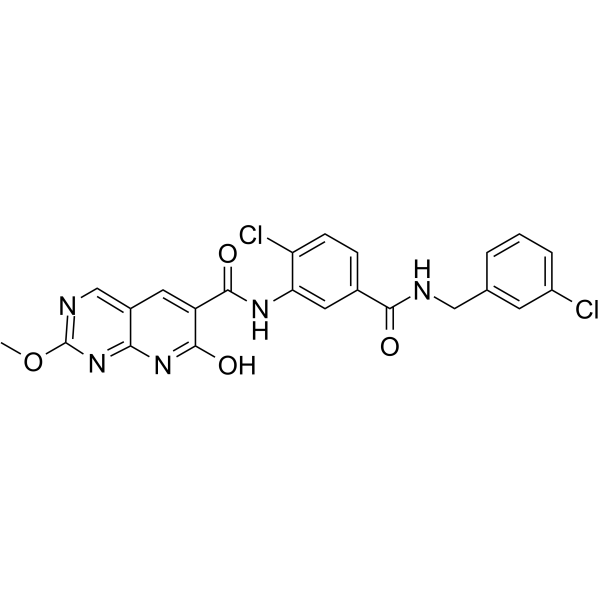

Chemical Name	N-[2-chloro-5-[(3-chlorophenyl)methylcarbamoyl]phenyl]-2-methoxy-7-oxo-8H-pyrido[2,3-d]pyrimidine-6-carboxamide
Synonyms	1A-IN-9; Dyrk1B inhibitor; Dyrk1B/1A-IN-9
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

References

[1]. Inactivation of mirk/dyrk1b kinase targets quiescent pancreatic cancer cells. Mol Cancer Ther. 2011 Nov;10(11):2104-14. [2]. Pyrido[2,3-d]pyrimidines: discovery and preliminary SAR of a novel series of DYRK1B and DYRK1A inhibitors. Bioorg Med Chem Lett. 2013 Dec 15;23(24):6610-5.

Solubility Data

Solubility (In Vitro)

DMSO : ~5 mg/mL (~10.03 mM) H2O : < 0.1 mg/mL

Solubility (In Vivo)

Solubility in Formulation 1: 0.5 mg/mL (1.00 mM) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), suspension solution; with sonication. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 5.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 0.5 mg/mL (1.00 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 5.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.0067 mL	10.0337 mL	20.0674 mL
	5 mM	0.4013 mL	2.0067 mL	4.0135 mL
	10 mM	0.2007 mL	1.0034 mL	2.0067 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
