Dovitinib lactate (TKI258 lactate) is a multi-target tyrosine kinase inhibitor, inhibiting FLT3, c-Kit, FGFR1/3, VEGFR1/2/3 and PDGFRα/β with IC50s of 1, 2, 8/9 respectively. , 10/13/8, 27/210 nM.

Physicochemical Properties

Molecular Formula	C24H27FN6O4
Molecular Weight	482.51
Exact Mass	482.207
Elemental Analysis	C, 59.74; H, 5.64; F, 3.94; N, 17.42; O, 13.26
CAS #	692737-80-7
Related CAS #	Dovitinib;405169-16-6;Dovitinib dilactic acid;852433-84-2;Dovitinib lactate hydrate;915769-50-5; 405169-16-6
PubChem CID	135431668
Appearance	White solid powder
LogP	2.58
Hydrogen Bond Donor Count	5
Hydrogen Bond Acceptor Count	9
Rotatable Bond Count	3
Heavy Atom Count	35
Complexity	737
Defined Atom Stereocenter Count	0
InChi Key	ZRHDKBOBHHFLBW-UHFFFAOYSA-N
InChi Code	InChI=1S/C21H21FN6O.C3H6O3/c1-27-7-9-28(10-8-27)12-5-6-14-16(11-12)25-20(24-14)18-19(23)17-13(22)3-2-4-15(17)26-21(18)29;1-2(4)3(5)6/h2-6,11H,7-10H2,1H3,(H,24,25)(H3,23,26,29);2,4H,1H3,(H,5,6)

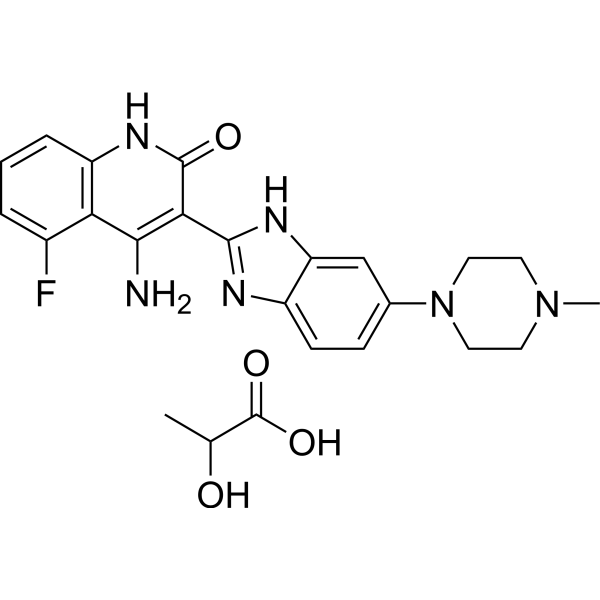

Chemical Name	4-amino-5-fluoro-3-[6-(4-methylpiperazin-1-yl)-1H-benzimidazol-2-yl]-1H-quinolin-2-one;2-hydroxypropanoic acid
Synonyms	Dovitinib lactate; 692737-80-7; Dovitinib lactate anhydrous; Dovitinib (TKI258) Lactate; 4-Amino-5-fluoro-3-(6-(4-methylpiperazin-1-yl)-1H-benzo[d]imidazol-2-yl)quinolin-2(1H)-one 2-hydroxypropanoate; Dovitinib (lactate); UNII-B82T791274; 4-AMINO-5-FLUORO-3-(6-(4-METHYLPIPERAZIN-1-YL)-1H-BENZO-[D]IMIDAZOL-2-YL)QUINOLIN-2(1H)-ONE 2-HYDROXYPROPANOATE;
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment, avoid exposure to moisture.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	FLT3 1 nM (IC50) c-Kit 2 nM (IC50) FGFR1 8 nM (IC50) FGFR3 9 nM (IC50) VEGFR1 1 nM (IC50) VEGFR3 8 nM (IC50) VEGFR2 13 nM (IC50) PDGFRα 27 nM (IC50) PDGFRβ 210 nM (IC50)
ln Vitro	At IC50 values of 25 nM, dovitinib potently suppresses the proliferation of FGF-stimulated B9 cells expressing F384L-FGFR3 as well as WT cells. Even at concentrations as high as 1 μM, B9-MINV cells exhibit resistance to the inhibitory action of dovitinib. Dovitinib has been shown to reduce the growth of KMS11 (FGFR3-Y373C), OPM2 (FGFR3-K650E), and KMS18 (FGFR3-G384D) cells. For KMS11 and OPM2, this means an IC50 of 90 nM and 550 nM, respectively[1]. When dovitinib is administered to SK-HEP1 cells, it causes G2/M cell cycle arrest, inhibits colony formation in soft agar, and blocks bFGF-induced cell migration. Dovitinib phosphorylates FGFR-1, FRS2-α, and ERK1/2 at their basal expression levels and in response to FGF[2].
ln Vivo	In the KMS11-bearing mouse model, dovitinib (10 mg/kg, 30 mg/kg, 60 mg/kg, po) demonstrates a strong antitumor effect. The growth inhibition is 48%, 78.5%, and 94% in the 10 mg/kg, 30 mg/kg, and 60 mg/kg treatment arms, respectively, in comparison to the mice receiving a placebo[1]. In HCC xenograft models, dovitinib exhibits strong anticancer and antimetastatic effects. Six HCC lines exhibit potent inhibition of tumor development by dovitinib. The inactivation of FGFR/PDGFR-β/VEGFR-2 signaling pathways is correlated with the inhibition of angiogenesis development. In addition, dovitinib causes p-histone H2A-X and p27 to be upregulated, retinoblastoma to be dephosphorylated, p-cdk-2 and cyclin B1 to be downregulated, and cellular proliferation to be reduced as well as tumor cell apoptosis to be induced[2].
Enzyme Assay	In a time-resolved fluorescence (TRF) or radioactive format, the inhibitory concentration of 50% (IC50) values for the inhibition of RTKs by dovitinib are calculated, measuring the inhibition of phosphate transfer to a substrate by the corresponding enzyme caused by dovitinib. The assay conditions for the kinase domains of FGFR3, FGFR1, PDGFRβ, and VEGFR1-3 are 50 mM HEPES (N-2-hydroxyethylpiperazine-N′-2-ethanesulfonic acid), pH 7.0, 2 mM MgCl2, 10 mM MnCl2, 1 mM NaF, 1 mM dithiothreitol (DTT), 1 mg/mL of bovine serum albumin (BSA), 0.25 μM biotinylated peptide substrate (GGGGQDGKDYIVLPI), and 1 to 30 μM adenosine triphosphate (ATP), contingent on the Km corresponding to each enzyme. The concentration of ATP is at or slightly below Km. The pH is increased to 7.5 for the c-KIT and FLT3 reactions, and 0.2 to 8 μM ATP is added along with 0.25 to 1 μM biotinylated peptide substrate (GGLFDDPSYVNVQNL). The phosphorylated peptide is captured on streptavidin-coated microtiter plates containing stop reaction buffer (25 mM EDTA [ethylenediaminetetraacetic acid], 50 mM HEPES, pH 7.5) after reactions are incubated at room temperature for one to four hours. The DELFIA TRF system measures phosphorylated peptide using an antiphosphotyrosine antibody (PT66) labeled with europium. Using XL-Fit data analysis software version 4.1 (IDBS), nonlinear regression is used to calculate the concentration of dovitinib for IC50. At ATP concentrations near the ATP Km, the kinase activity of insulin receptor (InsR), PDGFRα, colony-stimulating factor-1 receptor (CSF-1R), and insulin-like growth factor receptor 1 (IGFR1) is inhibited.[1]
Cell Assay	The 3-(4,5-dimethylthiazol)-2,5-diphenyl tetrazolium (MTT) dye absorbance represents the cell viability. Densities of 5 × 103 (B9 cells) or 2 × 104 (MM cell lines) cells per well are used for seeding cells in 96-well plates. To culture the cells, different concentrations of Dovitinib are added along with 30 ng/mL aFGF, 100 μg/mL heparin, or 1% IL-6 as needed. Aliquots of 10 μL of drug or DMSO diluted in culture medium are added for each concentration of dovitinib. Drug combination studies involve incubating cells with either 100 nM Dovitinib or 0.5 μM dexamethasone, or both at the same time if necessary. In order to assess the impact of Dovitinib on the growth of MM cells adherent to BMSCs, 104 KMS11 cells are cultured in the presence or absence of Dovitinib on 96-well plates coated with BMSCs. The incubation period for plates is 48–96 hours. 5 × 103 M-NFS-60 cells/well are cultured with serial dilutions of Dovitinib with 10 ng/mL M-CSF and without granulocyte-macrophage colony-stimulating factor (GM-CSF) in order to evaluate the growth of M-CSF-mediated macrophage colony-growth. Using the Cell Titer-Glo Assay, cell viability is assessed after 72 hours. Every experimental condition is run through three times.
Animal Protocol	Xenograft mouse model[1] The xenograft mouse model was prepared as previously described. Briefly, 6- to 8-week-old female BNX mice obtained from Frederick Cancer Research and Development Centre were inoculated subcutaneously into the right flank with 3 × 107 KMS11 cells in 150 μL IMDM, together with 150 μL Matrigel basement membrane matrix . Treatment was initiated when tumors reached volumes of 200 mm3 at which time mice were randomized to receive 10, 30, or 60 mg/kg Dovitinib (CHIR-258) or 5 mM citrate buffer. Dosing was performed daily for 21 days by gavage. Eight to 10 mice were included in each treatment group. Caliper measurements were performed twice weekly to estimate tumor volume, using the formula: 4π/3 × (width/2)2 × (length/2). One-way analysis of variance was used to compare differences between vehicle- and CHIR-258-treated groups. 21-0208 and SK-HEP1 cells as well as patient-derived HCC models were employed to study the antitumor effect of dovitinib. Changes of biomarkers relevant to FGFR/VEGFR/PDGFR pathways were determined by Western blotting. Microvessel density, apoptosis and cell proliferation were analyzed by immunohistochemistry. Results: Treatment of SK-HEP1 cells with dovitinib resulted in G2/M cell cycle arrest, inhibition of colony formation in soft agar and blockade of bFGF-induced cell migration. Dovitinib inhibited basal expression and FGF-induced phosphorylation of FGFR-1, FRS2-α and ERK1/2. In vivo, dovitinib potently inhibited tumor growth of six HCC lines. Inhibition of angiogenesis correlated with inactivation of FGFR/PDGFR-β/VEGFR-2 signaling pathways. Dovitinib also caused dephosphorylation of retinoblastoma, upregulation of p-histone H2A-X and p27, and downregulation of p-cdk-2 and cyclin B1, which resulted in a reduction in cellular proliferation and the induction of tumor cell apoptosis. In an orthotopic model, dovitinib potently inhibited primary tumor growth and lung metastasis and significantly prolonged mouse survival. Conclusions: Dovitinib demonstrated significant antitumor and antimetastatic activities in HCC xenograft models. This study provides a compelling rationale for clinical investigation in patients with advanced HCC.[2] The pharmacologic activity of Dovitinib (CHIR-258) was characterized by monitoring target modulation as well as by evaluating the antitumor and antiangiogenic effects in human colon xenograft models. Results: CHIR-258 inhibits vascular endothelial growth factor receptor 1/2, fibroblast growth factor receptor 1/3, and platelet-derived growth factor receptor beta (PDGFRbeta) and shows both antitumor and antiangiogenic activities in vivo. Treatment of KM12L4a human colon cancer cells with CHIR-258 resulted in a dose-dependent inhibition of vascular endothelial growth factor receptor 1 and PDGFRbeta phosphorylation and reduction of phosphorylated extracellular signal-regulated kinase (ERK) levels, indicating modulation of target receptors and downstream signaling. In vivo administration of CHIR-258 resulted in significant tumor growth inhibition and tumor regressions, including large, established tumors (500-1,000 mm(3)). Immunohistochemical analysis showed a reduction of phosphorylated PDGFRbeta and phosphorylated ERK in tumor cells after oral dosing with CHIR-258 compared with control tumors. These changes were accompanied by decreased tumor cell proliferation rate and reduced intratumoral microvessel density. CHIR-258 inhibited the phosphorylation of PDGFRbeta and ERK phosphorylation in tumors within 2 hours following dosing and the inhibitory activity was sustained for >24 hours. Significant antitumor activity was observed with intermittent dosing schedules, indicating a sustained biological activity. Conclusion: These studies provide evidence that biological activity of CHIR-258 in tumors correlates with efficacy and aids in the identification of potential biomarkers of this multitargeted receptor tyrosine kinase inhibitor. CHIR-258 exhibits properties that make it a promising candidate for clinical development in a variety of solid and hematologic malignancies.[3] Dissolved in 5 mM citrate buffer; 10, 30, or 60 mg/kg; p.o. Female BNX mice bearing KMS11 cells
References	[1]. CHIR-258, a novel, multitargeted tyrosine kinase inhibitor for the potential treatment of t(4;14) multiple myeloma. Blood. 2005, 105(7), 2941-2948. [2]. Dovitinib demonstrates antitumor and antimetastatic activities in xenograft models of hepatocellular carcinoma. J Hepatol. 2012, 56(3), 595-601.
Additional Infomation	Dovitinib Lactate is the orally bioavailable lactate salt of a benzimidazole-quinolinone compound with potential antineoplastic activity. Dovitinib strongly binds to fibroblast growth factor receptor 3 (FGFR3) and inhibits its phosphorylation, which may result in the inhibition of tumor cell proliferation and the induction of tumor cell death. In addition, this agent may inhibit other members of the RTK superfamily, including the vascular endothelial growth factor receptor; fibroblast growth factor receptor 1; platelet-derived growth factor receptor type 3; FMS-like tyrosine kinase 3; stem cell factor receptor (c-KIT); and colony-stimulating factor receptor 1; this may result in an additional reduction in cellular proliferation and angiogenesis, and the induction of tumor cell apoptosis. The activation of FGFR3 is associated with cell proliferation and survival in certain cancer cell types.

Solubility Data

Solubility (In Vitro)

DMSO: ≥ 30 mg/mL (62.17 mM)

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.0725 mL	10.3625 mL	20.7250 mL
	5 mM	0.4145 mL	2.0725 mL	4.1450 mL
	10 mM	0.2072 mL	1.0362 mL	2.0725 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
