Dianicline diHCl is a partial agonist of the α4β2 nicotinic acetylcholine receptor, a class of active molecules including varenicline and cytosine, used for smoking cessation. Dianicline diHCl increases smoking cessation rates in a dose-dependent fashion.

Physicochemical Properties

Molecular Formula	C13H16N2O
Molecular Weight	216.278943061829
Exact Mass	216.126
CAS #	292634-27-6
PubChem CID	10176764
Appearance	White to off-white solid powder
LogP	1.4
Hydrogen Bond Donor Count	0
Hydrogen Bond Acceptor Count	3
Rotatable Bond Count	0
Heavy Atom Count	16
Complexity	296
Defined Atom Stereocenter Count	2
SMILES	O1C2C=CC=NC=2C[C@@]23CCN(CC[C@H]12)C3
InChi Key	SUPRUPHAEXPGPF-QWHCGFSZSA-N
InChi Code	InChI=1S/C13H16N2O/c1-2-11-10(14-5-1)8-13-4-7-15(9-13)6-3-12(13)16-11/h1-2,5,12H,3-4,6-9H2/t12-,13+/m0/s1

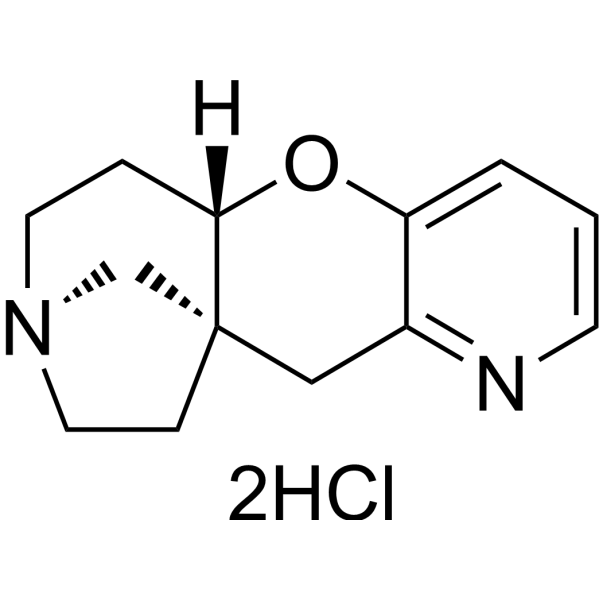

Chemical Name	(1R,10S)-9-oxa-4,13-diazatetracyclo[11.2.1.01,10.03,8]hexadeca-3(8),4,6-triene
Synonyms	SSR 591,813; SSR-591,813; Dianicline
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment, avoid exposure to moisture.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

References	[1]. Dianicline, a novel α4β2 nicotinic acetylcholine receptor partial agonist, for smoking cessation: a randomized placebo-controlled clinical trial. Nicotine Tob Res. 2011 Jan;13(1):1-6.
Additional Infomation	Dianicline has been used in trials studying the treatment of Smoking, Smoking Cessation, and Tobacco Use Cessation.

Solubility Data

Solubility (In Vitro)

DMSO : ~25 mg/mL (~86.45 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (8.64 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.5 mg/mL (8.64 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.5 mg/mL (8.64 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	4.6236 mL	23.1182 mL	46.2364 mL
	5 mM	0.9247 mL	4.6236 mL	9.2473 mL
	10 mM	0.4624 mL	2.3118 mL	4.6236 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
