Physicochemical Properties
| Molecular Formula | C20H24N4O4 |
| Molecular Weight | 384.428964614868 |
| Exact Mass | 384.179 |
| CAS # | 254098-36-7 |
| PubChem CID | 54278326 |
| Appearance | Blue to dark blue liquid |
| LogP | 2.4 |
| Hydrogen Bond Donor Count | 6 |
| Hydrogen Bond Acceptor Count | 8 |
| Rotatable Bond Count | 8 |
| Heavy Atom Count | 28 |
| Complexity | 512 |
| Defined Atom Stereocenter Count | 0 |
| InChi Key | ROZRZRSHNGDJJJ-UHFFFAOYSA-N |
| InChi Code | InChI=1S/C20H24N4O4/c1-21-7-9-23-11-3-5-13(25)17-15(11)19(27)18-14(26)6-4-12(16(18)20(17)28)24-10-8-22-2/h3-6,21-26H,7-10H2,1-2H3 |

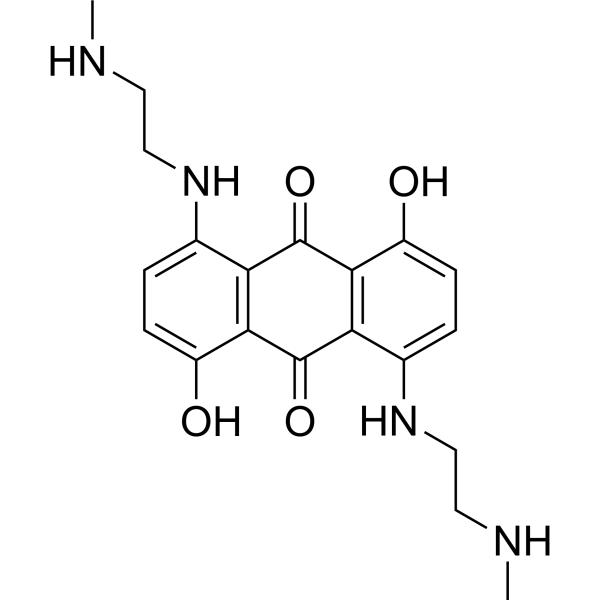

| Chemical Name | 1,5-dihydroxy-4,8-bis[2-(methylamino)ethylamino]anthracene-9,10-dione |
| Synonyms | DRAQ5 |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| ln Vitro | Mammalian cell full culture medium staining technique [2]: (1) Cell plating: Break down and separate the cells, then resuspend them in complete culture medium at a concentration of 2-4 x 105/ml. NOTE: By soaking 1-2 ml of dye for 4 cm2, attached cultured cells (such as coverslips or chambers) can be stained in situ. (2) To prepare the staining solution, add 4 µl of the 5 mM dye stock solution to each milliliter of culture medium, resulting in a final concentration of 20 µM. Note: Nuclear staining often does not surpass 30 µM and can be observed at 2.5–5 µM. (3) For fluorescent staining, incubate for five to fifteen minutes at 37°C. It should not happen to stain too much. (4) Optional cleaning: centrifuge for three to five minutes at 800 g and 37°C. Get rid of the supernatant and resuspend the cells in full media with 10 mM HEPES (HY-D0857) at a volume of 4 × 105/ml. (5) Flow cytometry: Employ standard pulse analysis for dual identification, and make use of the proper software to assess parameters. (6) Laser scanning microscope: Take fluorescence pictures with a 695 nm filter. Method for staining fixed cells [2]: (1) Fixed cells: fix for 30 minutes in PBS containing 4% paraformaldehyde, then resuspend in buffer (like PBS). (2) Fluorescent staining: Use dye concentrations and culture conditions that are comparable to those of living cells. |
| References |
[1]. A novel cell permeant and far red-fluorescing DNA probe, DRAQ5, for blood cell discrimination by flow cytometry. J Immunol Methods. 1999 Oct 29;229(1-2):131-9. [2]. DRAQ5 labeling of nuclear DNA in live and fixed cells. Curr Protoc Cytom. 2004 May;Chapter 7:Unit 7.25. |
Solubility Data
| Solubility (In Vivo) |
Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently. (Please use freshly prepared in vivo formulations for optimal results.) |
| Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
| 1 mM | 2.6013 mL | 13.0063 mL | 26.0125 mL | |
| 5 mM | 0.5203 mL | 2.6013 mL | 5.2025 mL | |
| 10 mM | 0.2601 mL | 1.3006 mL | 2.6013 mL |
