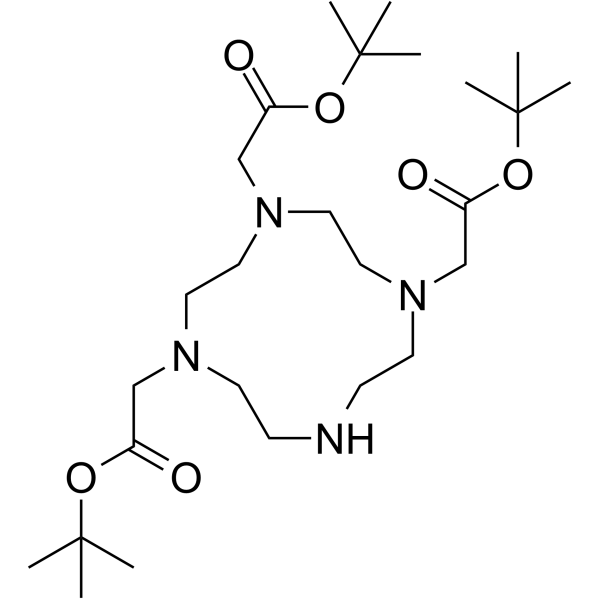

DOTA tert-Butyl ester is a cyclic tosamide benzyl analogue.

Physicochemical Properties

Molecular Formula	C26H50N4O6
Molecular Weight	514.6984
Exact Mass	514.373
CAS #	122555-91-3
PubChem CID	11237632
Appearance	White to yellow solid powder
Density	1.0±0.1 g/cm3
Boiling Point	561.6±50.0 °C at 760 mmHg
Flash Point	293.4±30.1 °C
Vapour Pressure	0.0±1.5 mmHg at 25°C
Index of Refraction	1.467
LogP	4.21
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	10
Rotatable Bond Count	12
Heavy Atom Count	36
Complexity	665
Defined Atom Stereocenter Count	0
SMILES	O=C(OC(C)(C)C)CN1CCN(CC(OC(C)(C)C)=O)CCNCCN(CC(OC(C)(C)C)=O)CC1
InChi Key	NMHVTLJFPDOJOD-UHFFFAOYSA-N
InChi Code	InChI=1S/C26H50N4O6/c1-24(2,3)34-21(31)18-28-12-10-27-11-13-29(19-22(32)35-25(4,5)6)15-17-30(16-14-28)20-23(33)36-26(7,8)9/h27H,10-20H2,1-9H3
Chemical Name	tert-butyl 2-[4,7-bis[2-[(2-methylpropan-2-yl)oxy]-2-oxoethyl]-1,4,7,10-tetrazacyclododec-1-yl]acetate
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

References

[1]. A new synthetic route to 2-(p-nitrobenzyl)-1,4,7,10-tetraazacyclododecane. doi:10.1016/S0040-4039(00)73873-1.

Solubility Data

Solubility (In Vitro)

DMSO : ~62.5 mg/mL (~121.43 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.08 mg/mL (4.04 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.08 mg/mL (4.04 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.08 mg/mL (4.04 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.9429 mL	9.7144 mL	19.4288 mL
	5 mM	0.3886 mL	1.9429 mL	3.8858 mL
	10 mM	0.1943 mL	0.9714 mL	1.9429 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
