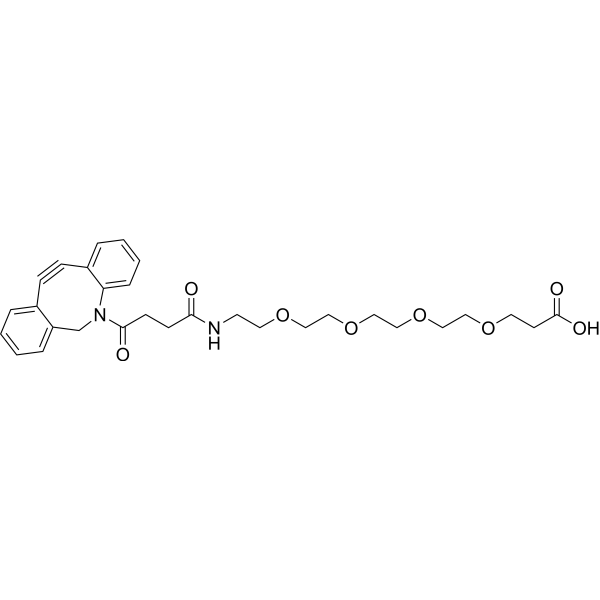

DBCO-PEG4-C2-acid is a PROTAC (PROteolysis TArgeting Chimera) linker of the Polyethylene glycol (PEG) category, may be utilized to prepare PROTAC protein degraders. DBCO-PEG4-C2-acid is a reagent for click chemistry. It has Alkyne groups and could undergo CuAAc (copper-catalyzed azide-alkyne cycloaddition reaction) with compounds bearing Azide groups.

Physicochemical Properties

Molecular Formula	C30H36N2O8
Molecular Weight	552.615448951721
Exact Mass	552.247
CAS #	1537170-85-6
PubChem CID	77078152
Appearance	White to yellow solid powder
Density	1.3±0.1 g/cm3
Boiling Point	839.7±65.0 °C at 760 mmHg
Flash Point	461.7±34.3 °C
Vapour Pressure	0.0±3.3 mmHg at 25°C
Index of Refraction	1.597
LogP	2.08
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	8
Rotatable Bond Count	18
Heavy Atom Count	40
Complexity	853
Defined Atom Stereocenter Count	0
InChi Key	LKSAMQQFMTVPKD-UHFFFAOYSA-N
InChi Code	InChI=1S/C30H36N2O8/c33-28(31-14-16-38-18-20-40-22-21-39-19-17-37-15-13-30(35)36)11-12-29(34)32-23-26-7-2-1-5-24(26)9-10-25-6-3-4-8-27(25)32/h1-8H,11-23H2,(H,31,33)(H,35,36)
Chemical Name	3-[2-[2-[2-[2-[[4-(2-azatricyclo[10.4.0.04,9]hexadeca-1(16),4,6,8,12,14-hexaen-10-yn-2-yl)-4-oxobutanoyl]amino]ethoxy]ethoxy]ethoxy]ethoxy]propanoic acid
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	One ligand is for an E3 ubiquitin ligase, and the other is for the target protein; these two ligands are joined by a linker to form PROTACs. The intracellular ubiquitin-proteasome system is utilized by PROTACs to specifically destroy target proteins[1].
References	[1]. Small-molecule PROTACs: An emerging and promising approach for the development of targeted therapy drugs. EBioMedicine. 2018 Oct;36:553-562.

Solubility Data

Solubility (In Vitro)

DMSO : ~41.67 mg/mL (~75.40 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 4.17 mg/mL (7.55 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 41.7 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: 4.17 mg/mL (7.55 mM) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), suspension solution; with ultrasonication. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 41.7 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 4.17 mg/mL (7.55 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 41.7 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.8096 mL	9.0478 mL	18.0956 mL
	5 mM	0.3619 mL	1.8096 mL	3.6191 mL
	10 mM	0.1810 mL	0.9048 mL	1.8096 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
