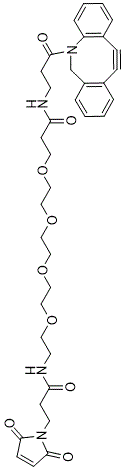

DBCO-PEG4-Maleimide is an ADC linker and a PEG analog containing a maleimide group and a a DBCO moiety. The hydrophilic PEG spacer arm improves solubility in aqueous buffers. Maleimide group specifically and efficiently reacts with thiols to form stable thioether bonds. The low mass weight will add minimal spacer to modified molecules and will enable simple and efficient incorporation of DBCO moiety onto cysteine-containing peptides or other thiol-containing biomolecules.
Physicochemical Properties
| Molecular Formula | C36H42N4O9 |
| Molecular Weight | 674.740089893341 |
| Exact Mass | 674.295 |
| CAS # | 1480516-75-3 |
| PubChem CID | 86580488 |
| Appearance | Colorless to light yellow ointment |
| Density | 1.3±0.1 g/cm3 |
| Boiling Point | 965.2±65.0 °C at 760 mmHg |
| Flash Point | 537.6±34.3 °C |
| Vapour Pressure | 0.0±0.3 mmHg at 25°C |
| Index of Refraction | 1.616 |
| LogP | 1.22 |
| Hydrogen Bond Donor Count | 2 |
| Hydrogen Bond Acceptor Count | 9 |
| Rotatable Bond Count | 21 |
| Heavy Atom Count | 49 |
| Complexity | 1190 |
| Defined Atom Stereocenter Count | 0 |
| InChi Key | VVFZXPZWVJMYPX-UHFFFAOYSA-N |
| InChi Code | InChI=1S/C36H42N4O9/c41-32(14-18-39-34(43)11-12-35(39)44)38-17-20-47-22-24-49-26-25-48-23-21-46-19-15-33(42)37-16-13-36(45)40-27-30-7-2-1-5-28(30)9-10-29-6-3-4-8-31(29)40/h1-8,11-12H,13-27H2,(H,37,42)(H,38,41) |
| Chemical Name | N-[2-[2-[2-[2-[3-[[3-(2-azatricyclo[10.4.0.04,9]hexadeca-1(16),4,6,8,12,14-hexaen-10-yn-2-yl)-3-oxopropyl]amino]-3-oxopropoxy]ethoxy]ethoxy]ethoxy]ethyl]-3-(2,5-dioxopyrrol-1-yl)propanamide |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment, avoid exposure to moisture. |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| ln Vitro | An ADC cytotoxin is connected to an antibody by use of an ADC linker to form an ADC. |
| References |
[1]. Capped and uncapped antibody cysteines, and their use in antibody-drug conjugation. WO2017025897A2. |
Solubility Data
| Solubility (In Vitro) | DMSO : ~50 mg/mL (~74.10 mM) |
| Solubility (In Vivo) |
Solubility in Formulation 1: ≥ 2.5 mg/mL (3.71 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: 2.5 mg/mL (3.71 mM) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), suspension solution; with ultrasonication. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.5 mg/mL (3.71 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly. (Please use freshly prepared in vivo formulations for optimal results.) |
| Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
| 1 mM | 1.4821 mL | 7.4103 mL | 14.8205 mL | |
| 5 mM | 0.2964 mL | 1.4821 mL | 2.9641 mL | |
| 10 mM | 0.1482 mL | 0.7410 mL | 1.4821 mL |
