D13-9001 is an inhibitor (blocker/antagonist) of AcrB (AcrAB-TolC efflux pump subunit) and MexB (MexAB-OprM efflux pump subunit). The corresponding Kds in Escherichia coli and Pseudomonas aeruginosa are 1.15 μM and 3.57 respectively. μM. D13-9001 has antibiotic activity.

Physicochemical Properties

Molecular Formula	C31H39N11O6S
Molecular Weight	693.776463747025
Exact Mass	693.28
CAS #	957471-96-4
PubChem CID	17757337
Appearance	Typically exists as solid at room temperature
LogP	2.5
Hydrogen Bond Donor Count	3
Hydrogen Bond Acceptor Count	13
Rotatable Bond Count	12
Heavy Atom Count	49
Complexity	1460
Defined Atom Stereocenter Count	1

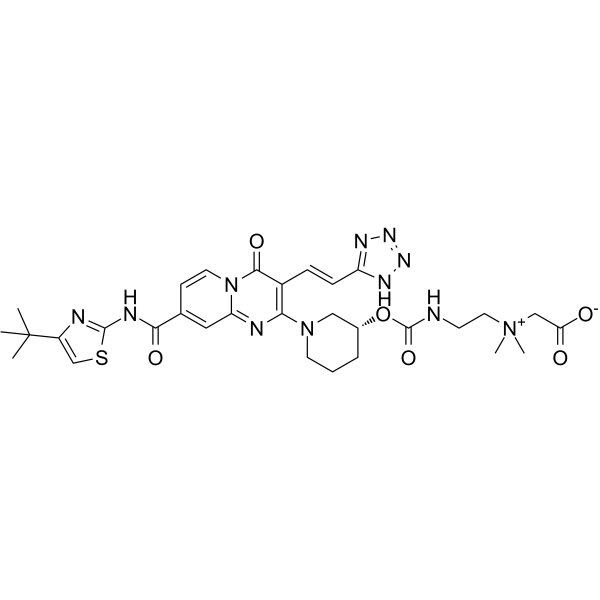

SMILES	CC(C)(C)C1=CSC(=N1)NC(=O)C2=CC3=NC(=C(C(=O)N3C=C2)/C=C/C4=NNN=N4)N5CCC[C@H](C5)OC(=O)NCC[N+](C)(C)CC(=O)[O-]
InChi Key	RVJNIKFVEAWLQC-HXUWFJFHSA-N
InChi Code	InChI=1S/C31H39N11O6S/c1-31(2,3)22-18-49-29(33-22)35-27(45)19-10-13-41-24(15-19)34-26(21(28(41)46)8-9-23-36-38-39-37-23)40-12-6-7-20(16-40)48-30(47)32-11-14-42(4,5)17-25(43)44/h8-10,13,15,18,20H,6-7,11-12,14,16-17H2,1-5H3,(H3-,32,33,35,36,37,38,39,43,44,45,47)/t20-/m1/s1
Chemical Name	2-[2-[[(3R)-1-[8-[(4-tert-butyl-1,3-thiazol-2-yl)carbamoyl]-4-oxo-3-[(E)-2-(2H-tetrazol-5-yl)ethenyl]pyrido[1,2-a]pyrimidin-2-yl]piperidin-3-yl]oxycarbonylamino]ethyl-dimethylazaniumyl]acetate
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	D13-9001 has good safety and great solubility [3].
ln Vivo	Rats with lethal pneumonia at the end of day seven respond better to treatment with D13-9001 (1.25–20 mg/kg; intravenous infusion; 2 hours) than to AZT alone [3].
Animal Protocol	Animal/Disease Models: SD rat (Pseudomonas aeruginosa PAM1020 lung infection) [3] Doses: 1.25 mg/kg, 5 mg/kg, 20 mg/kg Route of Administration: intravenous (iv) (iv)infusion; 2 hour Experimental Results: 1.25, The combination of 5 and 20 mg/kg of D13-9001 with 1000 mg/kg of AZT improved survival at the end of day seven, whereas no significant effect was observed with treatment with AZT alone.
References	[1]. Recent advances toward a molecular mechanism of efflux pump inhibition. Front Microbiol. 2015 May 5; 6:421. [2]. Insights into the Inhibitory Mechanism of D13-9001 to the Multidrug Transporter AcrB through Molecular Dynamics Simulations. J Phys Chem B. 2016 Mar 10;120(9):2145-54. [3]. MexAB-OprM specific efflux pump inhibitors in Pseudomonas aeruginosa. Part 7: highly soluble and in vivo active quaternary ammonium analogue D13-9001, a potential preclinical candidate. Bioorg Med Chem. 2007 Nov 15;15(22):7087-97.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.4414 mL	7.2069 mL	14.4138 mL
	5 mM	0.2883 mL	1.4414 mL	2.8828 mL
	10 mM	0.1441 mL	0.7207 mL	1.4414 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
