Cyclo[Arg-Gly-Asp-D-Phe-Lys(Azide)] is a derivative of Cyclo(-RGDfK). Cyclo[Arg-Gly-Asp-D-Phe-Lys(Azide)] is a click chemistry reagent containing an azide group. Click chemistry has great application potential in the conjugation between nucleic acids, lipids, proteins and other molecules, and has been applied in many research fields due to its beneficial properties such as high yield, high specificity and simplicity.

Physicochemical Properties

Molecular Formula	C30H44N12O8
Molecular Weight	700.75
Exact Mass	700.34050
CAS #	2767993-86-0
PubChem CID	102261528
Sequence	Cyclo[Arg-Gly-Asp-{d-Phe}-Lys(Azide)]
SequenceShortening	Cyclo[RGD-{d-Phe}-Lys(Azide)]
Appearance	White to off-white solid powder
LogP	-1.3
Hydrogen Bond Donor Count	9
Hydrogen Bond Acceptor Count	11
Rotatable Bond Count	16
Heavy Atom Count	50
Complexity	1280
Defined Atom Stereocenter Count	4

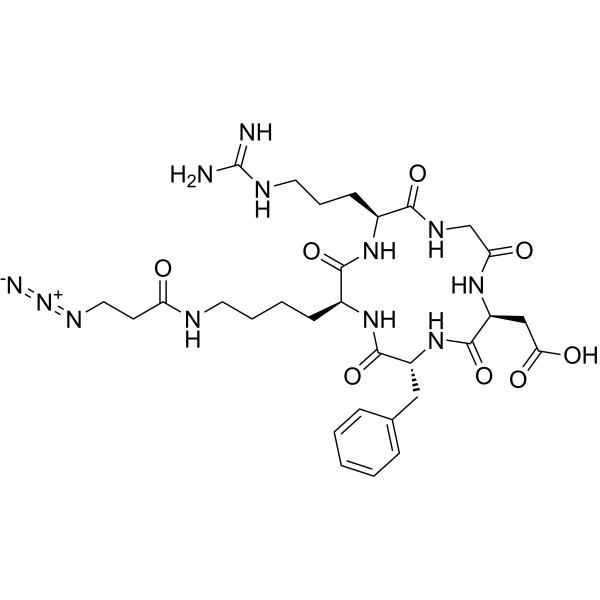

SMILES	C(C1C=CC=CC=1)[C@H]1NC([C@@H](NC(CNC(=O)[C@H](CCCNC(N)=N)NC(=O)[C@H](CCCCNC(=O)CCN=[N+]=[N-])NC1=O)=O)CC(=O)O)=O
InChi Key	PMCLQALAMBMZHA-KJJMTIBFSA-N
InChi Code	InChI=1S/C30H44N12O8/c31-30(32)35-13-6-10-19-26(47)36-17-24(44)38-22(16-25(45)46)29(50)41-21(15-18-7-2-1-3-8-18)28(49)40-20(27(48)39-19)9-4-5-12-34-23(43)11-14-37-42-33/h1-3,7-8,19-22H,4-6,9-17H2,(H,34,43)(H,36,47)(H,38,44)(H,39,48)(H,40,49)(H,41,50)(H,45,46)(H4,31,32,35)/t19-,20-,21+,22-/m0/s1
Chemical Name	2-[(2S,5R,8S,11S)-8-[4-(3-azidopropanoylamino)butyl]-5-benzyl-11-[3-(diaminomethylideneamino)propyl]-3,6,9,12,15-pentaoxo-1,4,7,10,13-pentazacyclopentadec-2-yl]acetic acid
Synonyms	Cyclo[RGDfK(Azide)]; Cyclo[Arg-Gly-Asp-D-Phe-Lys(Azide)];
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment, avoid exposure to moisture.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	Click chemistry reagent
References	[1]. Recent applications of click chemistry in drug discovery. Expert Opin Drug Discov. 2019 Aug;14(8):779-789.
Additional Infomation	Introduction: Click chemistry has been exploited widely in the past to expedite lead discovery and optimization. Indeed, Copper-catalyzed azide-alkyne cycloaddition (CuAAC) click chemistry is a bioorthogonal reaction of widespread utility throughout medicinal chemistry and chemical biology. Areas covered: The authors review recent applications of CuAAC click chemistry to drug discovery based on the literature published since 2013. Furthermore, the authors provide the reader with their expert perspectives on the area including their outlook on future developments. Expert opinion: Click chemistry reactions are an important part of the medicinal chemistry toolbox and offer substantial advantages to medicinal chemists in terms of overcoming the limitations of useful chemical synthesis, increasing throughput, and improving the quality of compound libraries. To explore new chemical spaces for drug-like molecules containing a high degree of structural diversity, it may be useful to merge the diversity-oriented synthesis and 'privileged' substructure-based strategy with bioorthogonal reactions using sophisticated automation and flow systems to improve productivity. Large compound libraries obtained in this way should be of great value for the discovery of bioactive compounds and therapeutic agents. [1]

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~142.70 mM; with ultrasonication)

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.4270 mL	7.1352 mL	14.2704 mL
	5 mM	0.2854 mL	1.4270 mL	2.8541 mL
	10 mM	0.1427 mL	0.7135 mL	1.4270 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
