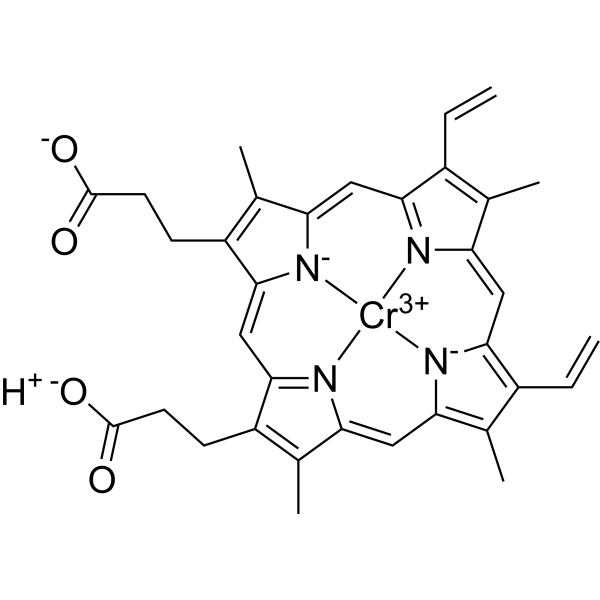

 protoporphyrin IX Chemical Structure.png)
Physicochemical Properties
| Molecular Formula | C34H31CRN4O4 |
| Molecular Weight | 611.63 |
| Exact Mass | 611.175 |
| CAS # | 84640-43-7 |
| Related CAS # | Mn(II) protoporphyrin IX;21393-64-6; Cu(II) protoporphyrin IX;14494-37-2;Ni(II) protoporphyrin IX;15415-30-2;Ga(III) protoporphyrin IX;222556-71-0;Cd(II) protoporphyrin IX;80216-25-7;Pt(II) protoporphyrin IX; 98303-94-7; 41628-83-5 |
| PubChem CID | 158488 |
| Appearance | Typically exists as solid at room temperature |
| Boiling Point | 1128.5ºC at 760 mmHg |
| Flash Point | 636.3ºC |
| LogP | 1.196 |
| Hydrogen Bond Donor Count | 1 |
| Hydrogen Bond Acceptor Count | 8 |
| Rotatable Bond Count | 6 |
| Heavy Atom Count | 43 |
| Complexity | 995 |
| Defined Atom Stereocenter Count | 0 |
| SMILES | C(C1C(=C2C=C3C(C=C)=C(C)C4C=C5C(C=C)=C(C)C6=CC7C(C)=C(CCC(=O)[O-])C8N=7[Cr+3]([N-]56)(N3=4)[N-]2C=1C=8)C)CC(=O)[O-].[H+] |
| InChi Key | OSBWPUFXHPIDKO-UHFFFAOYSA-K |
| InChi Code | InChI=1S/C34H34N4O4.Cr/c1-7-21-17(3)25-13-26-19(5)23(9-11-33(39)40)31(37-26)16-32-24(10-12-34(41)42)20(6)28(38-32)15-30-22(8-2)18(4)27(36-30)14-29(21)35-25;/h7-8,13-16H,1-2,9-12H2,3-6H3,(H4,35,36,37,38,39,40,41,42);/q;+3/p-3 |
| Chemical Name | 3-[18-(2-carboxylatoethyl)-8,13-bis(ethenyl)-3,7,12,17-tetramethylporphyrin-21,24-diid-2-yl]propanoate;chromium(3+);hydron |
| Synonyms | Cr-Protoporphyrin; 84640-43-7; Chromium protoporphyrin IX; Cr(III) protoporphyrin IX; 3-[18-(2-carboxylatoethyl)-8,13-bis(ethenyl)-3,7,12,17-tetramethylporphyrin-21,24-diid-2-yl]propanoate;chromium(3+);hydron; Chromate(1-), (7,12-diethenyl-3,8,13,17-tetramethyl-21H,23H-porphine-2,18-dipropanoato(4-)-N21,N22,N23,N24)-, hydrogen, (SP-4-2)- |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| Targets | Protoporphyrin IX derivative; metalloporphyrin |
| ln Vivo | Gossypol prevents the liberation of oxygen from oxyhemoglobin and exerts a hemolytic effect on erythrocytes. In excessive dosages of gossypol, an extreme burden is placed upon the respiratory and circulatory organs owing to the reduced oxygen carrying capacity of blood. Chromium protoporphyrin (CrPP) has been shown to either competitively suppress or to significantly ameliorate a variety of naturally occurring or experimentally induced forms of jaundice in animals and man. In this communication, a novel tissue dependent response to gossypol (50 micromol/kg bw) and gossypol in association with CrPP (50 micromol/kg bw) is described. Our results revealed that gossypol stimulated the hepatic, splenic, and renal delta-aminolevulinic acid synthase (ALA-S) activity, the heme biosynthetic enzyme, and simultaneous administration of CrPP and gossypol synergized the gossypol-mediated increase of ALA-S activity. Gossypol was found to be a potent stimulator of heme oxygenase (HMOX) activity in rat liver and kidney to varying degrees. This tissue response contrasted with that of the spleen, where gossypol decreased the activity of the enzyme. In consonance with the increased hepatic and renal HMOX activity, a marked increase was observed in total serum bilirubin concentration in gossypol treated rats. When rats were given CrPP simultaneously with gossypol, the gossypol mediated increase in hepatic and renal HMOX activity was effectively blocked. Furthermore, the increase in enzymatic activity was accomplished by a decline in the total microsomal protein content on gossypol administration. These findings emphasize the toxic effect of gossypol in eliciting increased heme degradation by stimulating HMOX activity in the liver and the kidney and the potential usefulness of CrPP in experimental and perhaps clinical conditions in which hyperbilirubinemia occurs [1]. |
| Animal Protocol |
Experimental Animals [1] Male Wistar Rats of weight range 150–200 g from our laboratory maintained colony were used as experimental models in the investigation. Only healthy animals were taken in individual cages having raised wire mesh floors. The animals were kept on fasting for 20 h but had free access to water. After 20 h the animals were divided into four groups with eight animals per group. Animal Treatment [1] Group I: Animals of this group were treated as control and were administered equivalent amount of saline subcutaneously. Group II: 50 µmol/kg bw of gossypol was given subcutaneously to animals in this group. Group III: Animals in this group were administered 50 µmol/kg bw of CrPP subcutaneously. Group IV: Animals in this group were given 50 µmol/kg bw of gossypol along with 50 µmol/kg bw of CrPP subcutaneously. The solutions of gossypol and CrPP for administration were prepared fresh in small volumes, in dark, because of their photosensitivity and unstable nature. Metalloporphyrins require an alkaline media for dissolving i.e., for making 1 mL solution, the porphyrin was dissolved in 0.2 mL of 0.02 N NaOH and the volume was then made up by potassium phosphate buffer (pH 7.4). Stock solution of gossypol was prepared in 95% ethanol. The gossypol concentration was determined by measuring absorbance at 372 nm and using a value of € = 1.48 × 104 L mol−1cm−1 (Finaly et al., Citation[[1993]]). |
| References |
[1]. Effect of gossypol in association with chromium protoporphyrin on heme metabolic enzymes. Artif Cells Blood Substit Immobil Biotechnol. 2004 Feb;32(1):159-72. [2]. Protoporphyrin IX: the Good, the Bad, and the Ugly. J Pharmacol Exp Ther. 2016;356(2):267-275. |
| Additional Infomation | Protoporphyrin IX (PPIX) is ubiquitously present in all living cells in small amounts as a precursor of heme. PPIX has some biologic functions of its own, and PPIX-based strategies have been used for cancer diagnosis and treatment (the good). PPIX serves as the substrate for ferrochelatase, the final enzyme in heme biosynthesis, and its homeostasis is tightly regulated during heme synthesis. Accumulation of PPIX in human porphyrias can cause skin photosensitivity, biliary stones, hepatobiliary damage, and even liver failure (the bad and the ugly). In this work, we review the mechanisms that are associated with the broad aspects of PPIX. Because PPIX is a hydrophobic molecule, its disposition is by hepatic rather than renal excretion. Large amounts of PPIX are toxic to the liver and can cause cholestatic liver injury. Application of PPIX in cancer diagnosis and treatment is based on its photodynamic effects. [2] |
Solubility Data
| Solubility (In Vitro) | May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples |
| Solubility (In Vivo) |
Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently. (Please use freshly prepared in vivo formulations for optimal results.) |
| Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
| 1 mM | 1.6350 mL | 8.1749 mL | 16.3498 mL | |
| 5 mM | 0.3270 mL | 1.6350 mL | 3.2700 mL | |
| 10 mM | 0.1635 mL | 0.8175 mL | 1.6350 mL |
