CLR1501, a fluorescently labeled analog of CLR1404, is a fluorescent cell marker selective for cancer/tumor cells.

Physicochemical Properties

Molecular Formula	C38H60BF2N3O4P-
Molecular Weight	702.69
Exact Mass	701.43
CAS #	1250963-36-0
Related CAS #	1250963-36-0;
PubChem CID	49785785
Appearance	Brown to reddish brown ointment
Hydrogen Bond Donor Count	0
Hydrogen Bond Acceptor Count	7
Rotatable Bond Count	25
Heavy Atom Count	49
Complexity	1100
Defined Atom Stereocenter Count	0

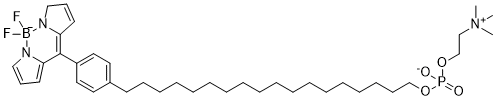

SMILES	P(CCCCCCCCCCCCCCCCCCC1C=CC(=CC=1)C1=C2C=CC=[N+]2[B-](N2C=CC=C21)(F)F)(=O)([O-])OCC[N+](C)(C)C
InChi Key	MOFPGNQNEMXVDS-UHFFFAOYSA-N
InChi Code	InChI=1S/C38H59BF2N3O4P/c1-44(2,3)31-33-48-49(45,46)47-32-19-17-15-13-11-9-7-5-4-6-8-10-12-14-16-18-22-34-25-27-35(28-26-34)38-36-23-20-29-42(36)39(40,41)43-30-21-24-37(38)43/h20-21,23-30H,4-19,22,31-33H2,1-3H3
Chemical Name	5,5-difluoro-10-(4-(18-((oxido(2-(trimethylammonio)ethoxy)phosphoryl)oxy)octadecyl)phenyl)-3H,5H-dipyrrolo[1,2-c
Synonyms	CLR1501 CLR-1501 CLR 1501
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	When compared to normal fibroblasts, CLR1501 shows five- to nine-fold preferential absorption in various cancer cell lines in vitro [1]. CLR1501 has an excitation/emission peak at 500/517 nm. In vitro and in vivo, CLR1501 demonstrates tumor selectivity against human glioblastoma stem cell (GSC) cell lines and xenografts [2].
References	[1]. Alkylphosphocholine analogs for broad-spectrum cancer imaging and therapy. Sci Transl Med. 2014 Jun 11;6(240):240ra75. [2]. Fluorescent cancer-selective alkylphosphocholine analogs for intraoperative glioma detection. Neurosurgery. 2015 Feb;76(2):115-23; discussion 123-4. [3]. Phospholipid ether analogs for the detection of colorectal tumors. PLoS One. 2014;9(10):e109668.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.4231 mL	7.1155 mL	14.2310 mL
	5 mM	0.2846 mL	1.4231 mL	2.8462 mL
	10 mM	0.1423 mL	0.7116 mL	1.4231 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
