CEP-11981 (ESK981; BOL 303213X) is an orally bioactive tyrosine kinase inhibitor (TKI) that targets TIE2, VEGFR1-3 and FGFR1 and has potential anti-tumor and anti-angiogenic effects.

Physicochemical Properties

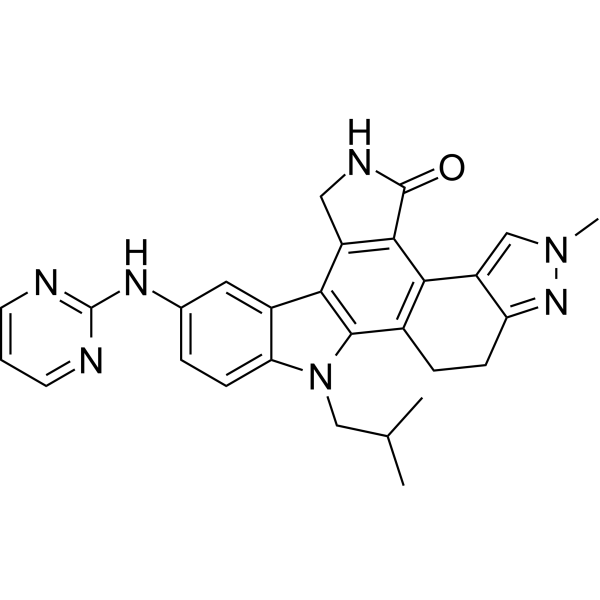

Molecular Formula	C28H27N7O
Molecular Weight	477.56
Exact Mass	477.228
CAS #	856691-93-5
Related CAS #	901128-79-8;856691-93-5;
PubChem CID	11751922
Appearance	Off-white to light yellow solid powder
LogP	4.079
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	5
Rotatable Bond Count	4
Heavy Atom Count	36
Complexity	833
Defined Atom Stereocenter Count	0
InChi Key	AEULIVPVIDOLIN-UHFFFAOYSA-N
InChi Code	InChI=1S/C28H27N7O/c1-15(2)13-35-22-8-5-16(32-28-29-9-4-10-30-28)11-18(22)24-19-12-31-27(36)25(19)23-17(26(24)35)6-7-21-20(23)14-34(3)33-21/h4-5,8-11,14-15H,6-7,12-13H2,1-3H3,(H,31,36)(H,29,30,32)
Chemical Name	19-methyl-3-(2-methylpropyl)-7-(pyrimidin-2-ylamino)-3,13,19,20-tetrazahexacyclo[14.7.0.02,10.04,9.011,15.017,21]tricosa-1(16),2(10),4(9),5,7,11(15),17,20-octaen-14-one
Synonyms	CEP11981; CEP 11981; CEP11981
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	CEP-11981 (1μM, 72 h) can considerably impede RT4 cell proliferation [1].
ln Vivo	In the RT4 human UC tumor model, CEP-11981 (2.5 mg/kg, 5 mg/kg, or 10 mg/kg by upper gavage, daily, five days per week for one week) significantly slows the growth of UC xenografts in comparison to control, without affecting the mice's body weight [1].
References	[1]. The angiopoietin-TIE2 pathway is a potential therapeutic target in urothelial carcinoma. Anticancer Res. 2014 Jul;34(7):3377-82.
Additional Infomation	Pan-VEGFR/TIE2 Tyrosine Kinase Inhibitor CEP-11981 is an orally bioavailable inhibitor of vascular endothelial growth factor receptor (VEGFR) and Tie2 receptor tyrosine kinases with potential antiangiogenic and antineoplastic activities. Pan-VEGFR/Tie2 tyrosine kinase inhibitor CEP-11981 selectively binds to VEGFR and Tie2 receptor tyrosine kinases, which may result in the inhibition of endothelial cell migration, proliferation and survival and the inhibition of tumor cell proliferation and tumor cell death. VEGFR and Tie2 are frequently overexpressed by a variety of tumor cell types and play crucial roles in the regulation of angiogenesis and the maintenance of tumor blood vessels. Tie2 (tyrosine kinase with immunoglobulin-like and EGF-like domains) is activated by angiopoietin-1 (Ang-1).

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.0940 mL	10.4699 mL	20.9398 mL
	5 mM	0.4188 mL	2.0940 mL	4.1880 mL
	10 mM	0.2094 mL	1.0470 mL	2.0940 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
