CC0651 is an allosteric inhibitor of human Cdc34 ubiquitin-conjugating enzyme. CC0651 effectively inhibits the ubiquitination of p27Kip1 with IC50 of 1.72 μM.

Physicochemical Properties

Molecular Formula	C20H21CL2NO6
Molecular Weight	442.28
Exact Mass	441.075
CAS #	1319207-44-7
PubChem CID	53239927
Appearance	White to off-white solid powder
LogP	2.531
Hydrogen Bond Donor Count	4
Hydrogen Bond Acceptor Count	6
Rotatable Bond Count	9
Heavy Atom Count	29
Complexity	533
Defined Atom Stereocenter Count	3

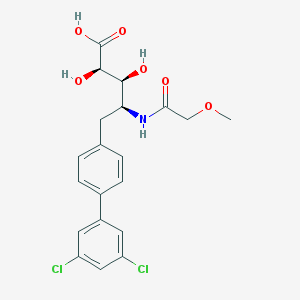

SMILES	COCC(=O)N[C@@H](CC1=CC=C(C=C1)C2=CC(=CC(=C2)Cl)Cl)[C@@H]([C@H](C(=O)O)O)O
InChi Key	NTCBTNCWNRCBGX-YTQUADARSA-N
InChi Code	InChI=1S/C20H21Cl2NO6/c1-29-10-17(24)23-16(18(25)19(26)20(27)28)6-11-2-4-12(5-3-11)13-7-14(21)9-15(22)8-13/h2-5,7-9,16,18-19,25-26H,6,10H2,1H3,(H,23,24)(H,27,28)/t16-,18-,19+/m0/s1
Chemical Name	(2R,3S,4S)-5-[4-(3,5-dichlorophenyl)phenyl]-2,3-dihydroxy-4-[(2-methoxyacetyl)amino]pentanoic acid
Synonyms	CC 0651 CC-0651 CC0651
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	IC50: 1.72 μM (p27Kip1 ubiquitination)[1]
ln Vitro	CC0651 significantly reduces the rate of ubiquitin chain initiation on substrates by SCFCdc4, as evaluated by the monoubiquitination of Sic1 by K0 ubiquitin. CC0651 really increases the synthesis of both ubiquitin dimers and monoubiquitinated hCdc34, which is consistent with the observed buildup of the hCdc34 conjugate in cells treated with the ester derivative of CC0651. CC0651 totally inhibits polyubiquitin chain assembly and reduces the generation of free triubiquitin and, to a lesser extent, hCdc34 monoubiquitin, while having no effect on diubiquitin production[1]. CC0651 is an inhibitor of the E2 ubiquitin conjugating enzyme Cdc34A. It works by trapping a weak contact between ubiquitin and the E2 donor ubiquitin binding site. A quantitative SCF ubiquitination assay with a β-Catenin substrate peptide reveals an IC50 of 18±1 μM for CC0651 inhibition, which is consistent with the effective doses seen in the NMR and TR-FRET assays[2].
Cell Assay	PC-3 and HCT116 cell lines are grown in DMEM supplemented with Penicillin/Streptomycin, 2 mM glutamine, and 10% fetal bovine serum (FBS). Lentiviral shRNA constructs for human CDC34, UBE2R2, and nontarget control are used. For proliferation assays, PC-3 cultures are seeded at 5000 cells/well in quadruplicate in 24-well plates, grown for 24 hr, and then infected with lentiviral supernatant. For small-molecule inhibition, cells are seeded in quadruplicate at 500 cells/well in 96-well plates, grown for 24 hr, and treated with compound. Proliferation is measured by MTT assay. PC-3 or HCT 116 cultures are synchronized in G0/G1 by serum starvation for 30 hr and then released by addition of 10% serum. For epistasis experiments, PC-3 cells are infected with CDC34 shRNA for 24 hr, followed by addition of inhibitor and assessment of proliferation after 4 days. Anti-Cdc34, anti-p27, anti-α-tubulin, anti-ubiquitin, and anti-cyclin E antibodies are used[1].
References	[1]. An allosteric inhibitor of the human Cdc34 ubiquitin-conjugating enzyme. Cell. 2011 Jun 24;145(7):1075-87. [2]. E2 enzyme inhibition by stabilization of a low-affinity interface with ubiquitin. Nat Chem Biol. 2014 Feb;10(2):156-63.

Solubility Data

Solubility (In Vitro)

DMSO : ≥ 56 mg/mL (~126.61 mM)

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.2610 mL	11.3051 mL	22.6101 mL
	5 mM	0.4522 mL	2.2610 mL	4.5220 mL
	10 mM	0.2261 mL	1.1305 mL	2.2610 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
