C6 NBD galactosylceramide is an active analogue of galactosylceramide labeled with fluorescent C6 nitrobenzoxadiazole (C6 NBD). C6 NBD galactosylceramide can be used as a substrate for neutral β-glycoceramidase (GCase) to study the intracellular localization and metabolism of galactosylceramide.

Physicochemical Properties

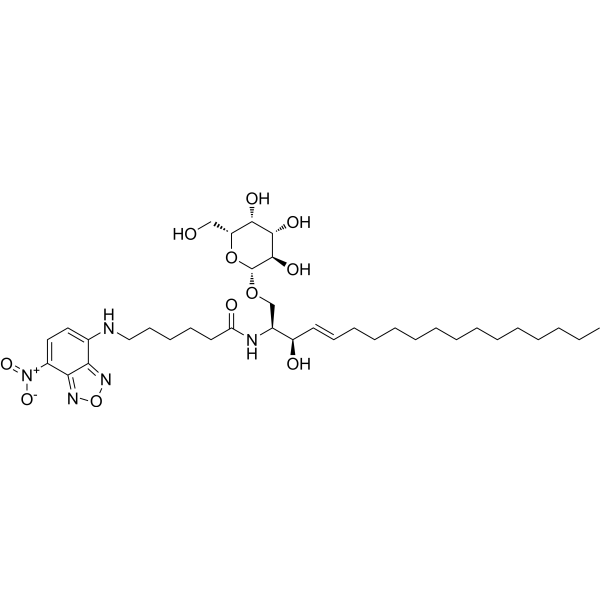

Molecular Formula	C36H59N5O11
Molecular Weight	737.880570650101
Exact Mass	737.421
CAS #	170212-26-7
PubChem CID	71312185
Appearance	Typically exists as solid at room temperature
Density	1.3±0.1 g/cm3
Index of Refraction	1.585
LogP	5.7
Hydrogen Bond Donor Count	7
Hydrogen Bond Acceptor Count	14
Rotatable Bond Count	26
Heavy Atom Count	52
Complexity	1020
Defined Atom Stereocenter Count	7
SMILES	CCCCCCCCCCCCC/C=C/[C@H]([C@H](CO[C@H]1[C@@H]([C@H]([C@H]([C@H](O1)CO)O)O)O)NC(=O)CCCCCNC2=CC=C(C3=NON=C23)[N+](=O)[O-])O
InChi Key	ZYEQNDHFYIPTAY-LFUFHFQKSA-N
InChi Code	InChI=1S/C36H59N5O11/c1-2-3-4-5-6-7-8-9-10-11-12-13-15-18-28(43)26(24-50-36-35(47)34(46)33(45)29(23-42)51-36)38-30(44)19-16-14-17-22-37-25-20-21-27(41(48)49)32-31(25)39-52-40-32/h15,18,20-21,26,28-29,33-37,42-43,45-47H,2-14,16-17,19,22-24H2,1H3,(H,38,44)/b18-15+/t26-,28+,29+,33-,34-,35+,36+/m0/s1
Chemical Name	N-[(E,2S,3R)-3-hydroxy-1-[(2R,3R,4S,5R,6R)-3,4,5-trihydroxy-6-(hydroxymethyl)oxan-2-yl]oxyoctadec-4-en-2-yl]-6-[(4-nitro-2,1,3-benzoxadiazol-7-yl)amino]hexanamide
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro

In HT29 cells, C6-NBD-glucosylceramide (4 μM) is transported to the Golgi apparatus. [1]. Advice (The protocol we recommend is as follows. You should adjust this approach to meet your unique needs as it simply offers suggestions. Reference [2]. after endocytosis, exogenous C6-NBD-GaICer transcytoses: 1. At 10°C, insert C6-NBD-glucosylceramide. 2. Rinse cells three times in cold HBSS, then incubate them at 37°C in HBSS to facilitate endocytosis. 3. If there is still probe on the cell surface after 10 minutes, wash the area for 20 minutes at 10°C with either 2 (apical) or 3 (basal) BSA. 4. A collection of filters for endocytosis measurement using lipid analysis. To find out if intracellular C6-NBD-glucosylceramide reappeared on either cell surface, a second set of filters was subsequently incubated in HBSS + BSA at 37°C for 0.5 or 1 hour. 5. NBD lipids were extracted into chloroform/methanol, TLC analysis was performed, and quantification was performed on the combined apical medium, basal medium, and cells after incubation and a 10°C BSA wash.

References

[1]. Sorting of sphingolipids in the endocytic pathway of HT29 cells. J Cell Biol. 1991 Jul;114(2):231-9. [2]. Differential targeting of glucosylceramide and galactosylceramide analogues after synthesis but not during transcytosis in Madin-Darby canine kidney cells. J Cell Biol. 1995 Nov;131(3):645-54.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.3552 mL	6.7762 mL	13.5523 mL
	5 mM	0.2710 mL	1.3552 mL	2.7105 mL
	10 mM	0.1355 mL	0.6776 mL	1.3552 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
