C6 NBD Ceramide is a cell membrane permeable/penetrable Golgi fluorescent probe (Ex=466 nm, Em=536 nm). C6 NBD Ceramide can quickly and conveniently label the Golgi apparatus with green fluorescence in living cells and fixed cells, and may be utilized to observe changes in Golgi apparatus morphology in living cells. C6 NBD Ceramide can be metabolized into fluorescent sphingomyelin and glucosylglyceramide, which may be utilized to study sphingolipid transport and metabolic mechanisms.

Physicochemical Properties

Molecular Formula	C30H49N5O6
Molecular Weight	575.73996
Exact Mass	575.368
CAS #	94885-02-6
PubChem CID	16219783
Appearance	Brown to orange solid powder
Density	1.2±0.1 g/cm3
Index of Refraction	1.562
LogP	8.25
Hydrogen Bond Donor Count	4
Hydrogen Bond Acceptor Count	9
Rotatable Bond Count	23
Heavy Atom Count	41
Complexity	737
Defined Atom Stereocenter Count	2
SMILES	CCCCCCCCCCCCC/C=C/[C@H]([C@H](CO)NC(=O)CCCCCNC1=CC=C(C2=NON=C12)[N+](=O)[O-])O
InChi Key	HZIRBXILQRLFIK-VPZZKNKNSA-N
InChi Code	InChI=1S/C30H49N5O6/c1-2-3-4-5-6-7-8-9-10-11-12-13-15-18-27(37)25(23-36)32-28(38)19-16-14-17-22-31-24-20-21-26(35(39)40)30-29(24)33-41-34-30/h15,18,20-21,25,27,31,36-37H,2-14,16-17,19,22-23H2,1H3,(H,32,38)/b18-15+/t25-,27+/m0/s1

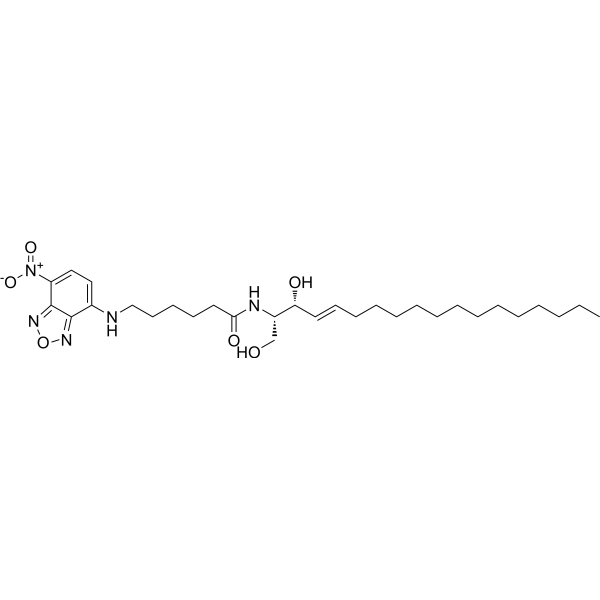

Chemical Name	N-[(E,2S,3R)-1,3-dihydroxyoctadec-4-en-2-yl]-6-[(4-nitro-2,1,3-benzoxadiazol-7-yl)amino]hexanamide
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment (e.g. under nitrogen), avoid exposure to moisture and light.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	Advice (This is our suggested protocol, which should be adjusted to suit your particular circumstances as it simply offers guidance). Golgi tagging [3]: 1. Cells on coverslips should be rinsed with HMEM before being fixed for five to ten minutes at 25°C with either glutaraldehyde or paraformaldehyde. 2. Use a balanced salt solution (HCMF, for example) to wash the fixed cells. 3. Place the culture plate with the glass coverslip in an ice-water bath and incubate it for 3 × 5 minutes (for cells that have been glutaraldehyde-fixed) using freshly made NaBH4. 4. Rinse cells multiple times (20–30 minutes) in cold HCMF, then preheat to 25°C and incubate for 60 minutes in the presence of C6 NBD-Ceramide/BSA. 5. Cleansed fixed cells with HCMF, incubate (30-90 minutes; 25°C) with 10% fetal bovine serum or 2 mg/mL BSA to improve Golgi apparatus dyeing equipment and counter-exchange excess C6 NBD-ceramide in the preparation. 6. Using a fluorescence microscope (E=536 nm, Ex=466 nm), mount the glass coverslip on the recessed slide and examine.
References	[1]. A vital stain for the Golgi apparatus. Science. 1985 May 10;228(4700):745-7. [2]. Influence of sphingomyelin metabolism during epithelial-mesenchymal transition associated with aging in the renal papilla. J Cell Physiol. 2022 Jul 31. [3]. Pagano RE. A fluorescent derivative of ceramide: physical properties and use in studying the Golgi apparatus of animal cells. Methods Cell Biol. 1989;29:75-85.
Additional Infomation	N-{6-[(7-nitro-2,1,3-benzoxadiazol-4-yl)amino]hexanoyl}sphingosine is an N-acylsphingosine that is sphingosine with the amino nitrogen converted into a 6-{[N-(7-nitrobenzo-2,1,3-oxadiazol-4-yl)amino]}hexananamido group. It has a role as a fluorescent probe.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.7369 mL	8.6845 mL	17.3690 mL
	5 mM	0.3474 mL	1.7369 mL	3.4738 mL
	10 mM	0.1737 mL	0.8684 mL	1.7369 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
