C-021 diHCl (C021) is a novel and potent CC chemokine receptor-4 (CCR4) antagonist with IC50 of 0.14 uM and 0.039 uM for inhibiting human and mouse chemotaxis, respectively.
Physicochemical Properties
| Molecular Formula | C₂₇H₄₃CL₂N₅O₂ |
| Molecular Weight | 540.57 |
| Exact Mass | 539.279 |
| CAS # | 1784252-84-1 |
| Related CAS # | C-021;864289-85-0 |
| PubChem CID | 56972238 |
| Appearance | White to off-white solid powder |
| Hydrogen Bond Donor Count | 3 |
| Hydrogen Bond Acceptor Count | 7 |
| Rotatable Bond Count | 6 |
| Heavy Atom Count | 36 |
| Complexity | 602 |
| Defined Atom Stereocenter Count | 0 |
| InChi Key | GKJKNYQUFAPLOQ-UHFFFAOYSA-N |
| InChi Code | InChI=1S/C27H41N5O2.2ClH/c1-33-24-18-22-23(19-25(24)34-2)29-27(30-26(22)28-20-10-6-3-4-7-11-20)32-16-12-21(13-17-32)31-14-8-5-9-15-31;;/h18-21H,3-17H2,1-2H3,(H,28,29,30);2*1H |

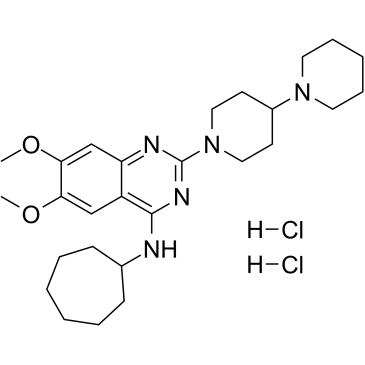

| Chemical Name | N-cycloheptyl-6,7-dimethoxy-2-(4-piperidin-1-ylpiperidin-1-yl)quinazolin-4-amine;dihydrochloride |
| Synonyms | C021 diHCl C 021 diHCl |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment, avoid exposure to moisture. |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| ln Vitro | Intrinsic clearance values (CLint) were obtained by monitoring the drug consumption rate in human liver microsomes (HML) in order to evaluate the in vitro oxidative metabolic stability of C-021 (compound 1b). The CLint value of C-021 is 17,377 mL/h/kg[1]. |
| ln Vivo | The effectiveness of C-021 (Compound 1b) was observed following subcutaneous treatment in a mouse oxazolone-induced contact hypersensitivity experiment, an established model of acute skin inflammation. However, when C-021 is taken orally, little inhibitory impact is detected [1]. C-021 (1 mg/kg; i.p.; daily; for 3 days) significantly lowers microgliosis in mice with acute liver failure [2]. |
| Animal Protocol |
Animal/Disease Models: Male C57Bl/6 mice with acute liver failure (20-25 g) [2] Doses: 1 mg/kg Route of Administration: intraperitoneal (ip) injection; daily; continued for 3 days Experimental Results: Microglia Hyperplasia was Dramatically diminished, and the ratio of pERK1/2 to tERK1/2 was Dramatically diminished. |
| References |
[1]. Potent and orally bioavailable CCR4 antagonists: Synthesis and structure-activity relationship study of 2-aminoquinazolines. Bioorg Med Chem. 2009 Jan 1;17(1):64-73. [2]. Neuronal CCL2 is upregulated during hepatic encephalopathy and contributes to microglia activation and neurological decline. J Neuroinflammation. 2014 Jul 10;11:121. |
Solubility Data
| Solubility (In Vitro) | May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples |
| Solubility (In Vivo) |
Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently. (Please use freshly prepared in vivo formulations for optimal results.) |
| Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
| 1 mM | 1.8499 mL | 9.2495 mL | 18.4990 mL | |
| 5 mM | 0.3700 mL | 1.8499 mL | 3.6998 mL | |
| 10 mM | 0.1850 mL | 0.9249 mL | 1.8499 mL |
