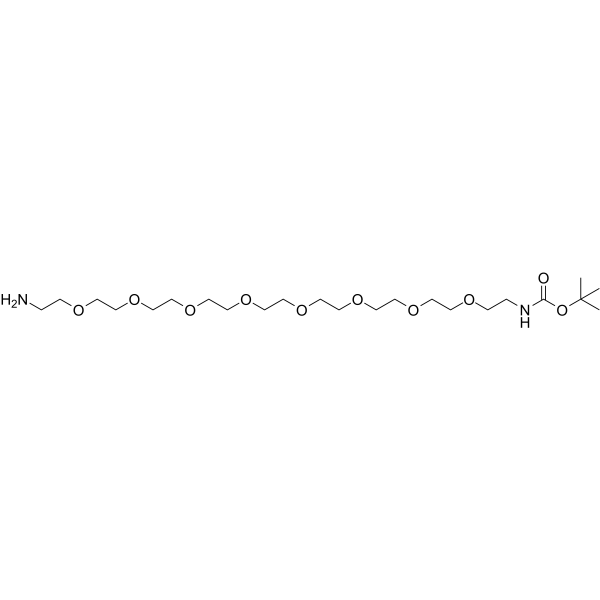

Boc-NH-PEG8-CH2CH2NH2 is a PROTAC (PROteolysis TArgeting Chimera) linker of the Polyethylene glycol (PEG) category, may be utilized to prepare PROTAC protein degraders.

Physicochemical Properties

Molecular Formula	C23H48N2O10
Molecular Weight	512.634628295898
Exact Mass	512.33
CAS #	1052207-59-6
PubChem CID	137346778
Appearance	Colorless to light yellow liquid（Density：1.078±0.06 g/cm3）
LogP	-1.2
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	11
Rotatable Bond Count	28
Heavy Atom Count	35
Complexity	453
Defined Atom Stereocenter Count	0
InChi Key	RJDFELJBUQILOQ-UHFFFAOYSA-N
InChi Code	InChI=1S/C23H48N2O10/c1-23(2,3)35-22(26)25-5-7-28-9-11-30-13-15-32-17-19-34-21-20-33-18-16-31-14-12-29-10-8-27-6-4-24/h4-21,24H2,1-3H3,(H,25,26)
Chemical Name	tert-butyl N-[2-[2-[2-[2-[2-[2-[2-[2-(2-aminoethoxy)ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethyl]carbamate
Synonyms	BocNHPEG8CH2CH2NH2; Boc NH PEG8 CH2CH2NH2
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment, avoid exposure to moisture.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	One ligand is for an E3 ubiquitin ligase, and the other is for the target protein; these two ligands are joined by a linker to form PROTACs. The intracellular ubiquitin-proteasome system is utilized by PROTACs to specifically destroy target proteins[1].
References	[1]. An S, et al. Small-molecule PROTACs: An emerging and promising approach for the development of targeted therapy drugs. EBioMedicine. 2018 Oct;36:553-562

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~195.07 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (4.88 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.5 mg/mL (4.88 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.5 mg/mL (4.88 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.9507 mL	9.7536 mL	19.5072 mL
	5 mM	0.3901 mL	1.9507 mL	3.9014 mL
	10 mM	0.1951 mL	0.9754 mL	1.9507 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
