Boc-NH-O-C1-NHS ester is a PROTAC (PROteolysis TArgeting Chimera) linker of the alkyl/ether class, may be utilized to prepare PROTAC protein degraders.

Physicochemical Properties

Molecular Formula	C₁₁H₁₆N₂O₇
Molecular Weight	288.25
Exact Mass	288.096
CAS #	80366-85-4
PubChem CID	12098210
Appearance	White to off-white solid powder
Melting Point	114 °C
LogP	0.192
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	7
Rotatable Bond Count	7
Heavy Atom Count	20
Complexity	411
Defined Atom Stereocenter Count	0

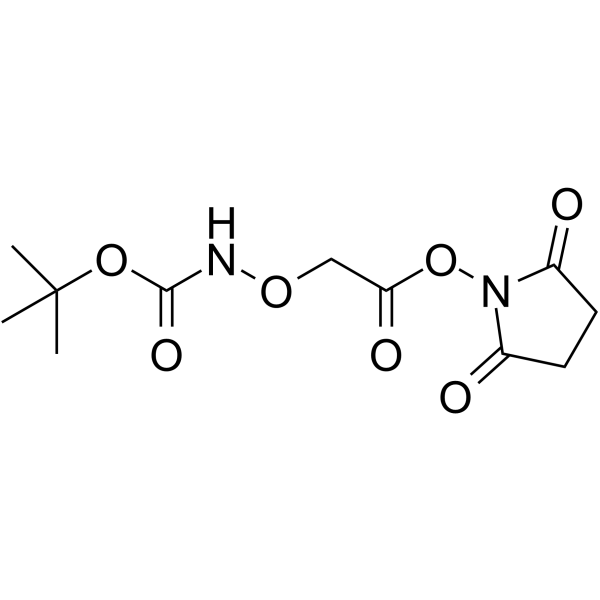

SMILES	O=C(NOCC(ON1C(=O)CCC1=O)=O)OC(C)(C)C
InChi Key	ZZBOTLREHORFCK-UHFFFAOYSA-N
InChi Code	InChI=1S/C11H16N2O7/c1-11(2,3)19-10(17)12-18-6-9(16)20-13-7(14)4-5-8(13)15/h4-6H2,1-3H3,(H,12,17)
Chemical Name	(2,5-dioxopyrrolidin-1-yl) 2-[(2-methylpropan-2-yl)oxycarbonylamino]oxyacetate
Synonyms	BocNHOC1NHS ester; Boc NH O C1 NHS ester
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	One ligand is for an E3 ubiquitin ligase, and the other is for the target protein; these two ligands are joined by a linker to form PROTACs. The intracellular ubiquitin-proteasome system is utilized by PROTACs to specifically destroy target proteins[1].
References	[1]. An S, et al. Small-molecule PROTACs: An emerging and promising approach for the development of targeted therapy drugs. EBioMedicine. 2018 Oct;36:553-562

Solubility Data

Solubility (In Vitro)

DMSO : ~250 mg/mL (~867.30 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.08 mg/mL (7.22 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.08 mg/mL (7.22 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.08 mg/mL (7.22 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	3.4692 mL	17.3461 mL	34.6921 mL
	5 mM	0.6938 mL	3.4692 mL	6.9384 mL
	10 mM	0.3469 mL	1.7346 mL	3.4692 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
