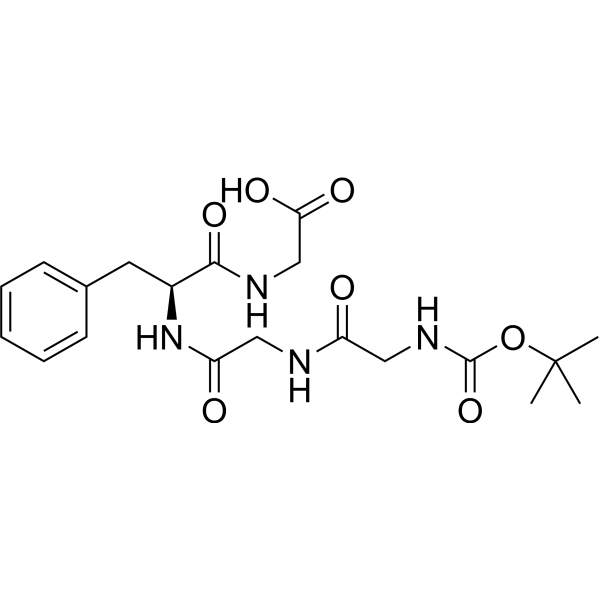

Boc-Gly-Gly-Phe-Gly-OH is a cleavable (degradable) ADC (Antibody-drug conjugate) linker that may be utilized to prepare antibody-conjugated active molecules (ADC).

Physicochemical Properties

Molecular Formula	C20H28N4O7
Molecular Weight	436.45892
Exact Mass	436.196
Elemental Analysis	C, 55.04; H, 6.47; N, 12.84; O, 25.66
CAS #	187794-49-6
Related CAS #	Boc-Gly-Gly-Phe-Gly-OH TFA;2450273-39-7
PubChem CID	10873788
Appearance	White to off-white solid powder
LogP	2.28
Hydrogen Bond Donor Count	5
Hydrogen Bond Acceptor Count	7
Rotatable Bond Count	12
Heavy Atom Count	31
Complexity	654
Defined Atom Stereocenter Count	1
SMILES	CC(C)(OC(NCC(NCC(N[C@H](C(NCC(O)=O)=O)CC1=CC=CC=C1)=O)=O)=O)C
InChi Key	PTUJJIPXBJJLLV-AWEZNQCLSA-N
InChi Code	InChI=1S/C20H28N4O7/c1-20(2,3)31-19(30)23-10-15(25)21-11-16(26)24-14(18(29)22-12-17(27)28)9-13-7-5-4-6-8-13/h4-8,14H,9-12H2,1-3H3,(H,21,25)(H,22,29)(H,23,30)(H,24,26)(H,27,28)/t14-/m0/s1
Chemical Name	2-[[(2S)-2-[[2-[[2-[(2-methylpropan-2-yl)oxycarbonylamino]acetyl]amino]acetyl]amino]-3-phenylpropanoyl]amino]acetic acid
Synonyms	Boc-Gly-Gly-Phe-Gly-OH;
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment, avoid exposure to moisture.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Solubility Data

Solubility (In Vitro)

DMSO : ≥ 100 mg/mL (~229.12 mM) H2O : ~25 mg/mL (~57.28 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (5.73 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.5 mg/mL (5.73 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly. Solubility in Formulation 3: 33.33 mg/mL (76.36 mM) in PBS (add these co-solvents sequentially from left to right, and one by one), clear solution; with ultrasonication.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.2912 mL	11.4558 mL	22.9116 mL
	5 mM	0.4582 mL	2.2912 mL	4.5823 mL
	10 mM	0.2291 mL	1.1456 mL	2.2912 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
