Bisindolylmaleimide II is a universal inhibitor of all protein kinase C isoforms.

Physicochemical Properties

Molecular Formula	C27H26N4O2
Molecular Weight	438.520946025848
Exact Mass	438.205
CAS #	137592-45-1
PubChem CID	2397
Appearance	Yellow to orange solid powder
Density	1.4±0.1 g/cm3
Boiling Point	709.9±60.0 °C at 760 mmHg
Flash Point	383.1±32.9 °C
Vapour Pressure	0.0±2.3 mmHg at 25°C
Index of Refraction	1.725
LogP	4.35
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	3
Rotatable Bond Count	5
Heavy Atom Count	33
Complexity	825
Defined Atom Stereocenter Count	0
SMILES	O=C1C(=C(C(N1)=O)C1=CNC2C=CC=CC1=2)C1C2C=CC=CC=2N(C=1)CCC1CCCN1C
InChi Key	LBFDERUQORUFIN-UHFFFAOYSA-N
InChi Code	InChI=1S/C27H26N4O2/c1-30-13-6-7-17(30)12-14-31-16-21(19-9-3-5-11-23(19)31)25-24(26(32)29-27(25)33)20-15-28-22-10-4-2-8-18(20)22/h2-5,8-11,15-17,28H,6-7,12-14H2,1H3,(H,29,32,33)

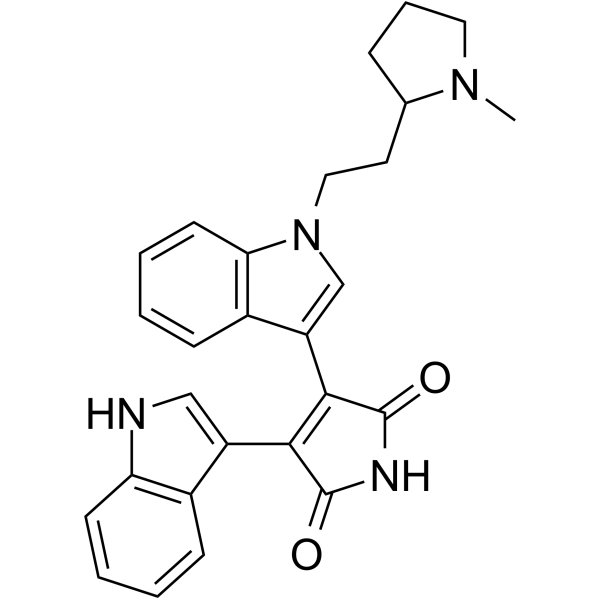

Chemical Name	3-(1H-indol-3-yl)-4-[1-[2-(1-methylpyrrolidin-2-yl)ethyl]indol-3-yl]pyrrole-2,5-dione
Synonyms	bisindolylmaleimide ii; 137592-45-1; 3-(1H-Indol-3-yl)-4-[1-[2-(1-methyl-2-pyrrolidinyl)ethyl]-1H-indol-3-yl]-1H-pyrrole-2,5-dione; 3-(1H-indol-3-yl)-4-[1-[2-(1-methylpyrrolidin-2-yl)ethyl]indol-3-yl]pyrrole-2,5-dione; CHEMBL218328; Bisindolyl deriv. 22; 2-(1-[2-(1-Methylpyrrolidino)ethyl]-1H-indol-3-yl-3-(1H-indol-3-yl)maleimide; BIM-2;
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	PKC
References	[1]. The protein kinase C inhibitor bisindolyl maleimide 2 binds with reversed orientations to different conformations of protein kinase A. J Biol Chem. 2004 May 28;279(22):23679-90.
Additional Infomation	As the key mediators of eukaryotic signal transduction, the protein kinases often cause disease, and in particular cancer, when disregulated. Appropriately selective protein kinase inhibitors are sought after as research tools and as therapeutic drugs; several have already proven valuable in clinical use. The AGC subfamily protein kinase C (PKC) was identified early as a cause of cancer, leading to the discovery of a variety of PKC inhibitors. Despite its importance and early discovery, no crystal structure for PKC has yet been reported. Therefore, we have co-crystallized PKC inhibitor bisindolyl maleimide 2 (BIM2) with PKA variants to study its binding interactions. BIM2 co-crystallized as an asymmetric pair of kinase-inhibitor complexes. In this asymmetric unit, the two kinase domains have different lobe configurations, and two different inhibitor conformers bind in different orientations. One kinase molecule (A) is partially open with respect to the catalytic conformation, the other (B) represents the most open conformation of PKA reported so far. In monomer A, the BIM2 inhibitor binds tightly via an induced fit in the ATP pocket. The indole moieties are rotated out of the plane with respect to the chemically related but planar inhibitor staurosporine. In molecule B a different conformer of BIM2 binds in a reversed orientation relative to the equivalent maleimide atoms in molecule A. Also, a critical active site salt bridge is disrupted, usually indicating the induction of an inactive conformation. Molecular modeling of the clinical phase III PKC inhibitor LY333531 into the electron density of BIM2 reveals the probable binding mechanism and explains selectivity properties of the inhibitor. [1]

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.2804 mL	11.4020 mL	22.8040 mL
	5 mM	0.4561 mL	2.2804 mL	4.5608 mL
	10 mM	0.2280 mL	1.1402 mL	2.2804 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
