Bis(pinacolato)diborane is a biochemical compound that can be used as a biomaterial or organic/chemical reagent for biomedical research.

Physicochemical Properties

Molecular Formula	C12H24B2O4
Molecular Weight	253.94
Exact Mass	254.186
CAS #	73183-34-3
PubChem CID	2733548
Appearance	White to off-white solid powder
Density	1.0±0.1 g/cm3
Boiling Point	222.6±7.0 °C at 760 mmHg
Melting Point	137-140 °C(lit.)
Flash Point	88.4±18.2 °C
Vapour Pressure	0.2±0.4 mmHg at 25°C
Index of Refraction	1.432
LogP	2.249
Hydrogen Bond Donor Count	0
Hydrogen Bond Acceptor Count	4
Rotatable Bond Count	1
Heavy Atom Count	18
Complexity	286
Defined Atom Stereocenter Count	0
SMILES	C1(C(OB(O1)B1OC(C)(C)C(C)(C)O1)(C)C)(C)C
InChi Key	IPWKHHSGDUIRAH-UHFFFAOYSA-N
InChi Code	InChI=1S/C12H24B2O4/c1-9(2)10(3,4)16-13(15-9)14-17-11(5,6)12(7,8)18-14/h1-8H3

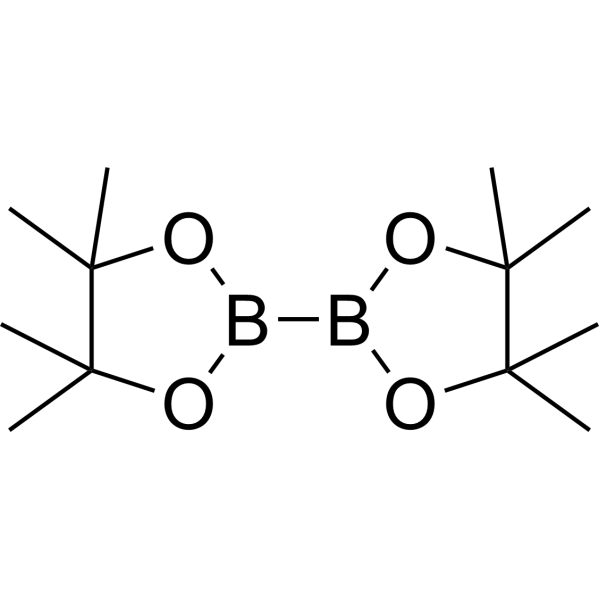

Chemical Name	4,4,5,5-tetramethyl-2-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)-1,3,2-dioxaborolane
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Additional Infomation

Bis(pinacolato)diboron is a 1,3,2-dioxaborolane that is 4,4,5,5-tetramethyl-1,3,2-dioxaborolane in which the boron hydrogen at position 2 is replaced by a 4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl group. It is a reagent used in organic synthesis to synthesise pinacol boronic esters. It has a role as an EC 3.4.24.24 (gelatinase A) inhibitor.

Solubility Data

Solubility (In Vitro)

DMSO: 100 mg/mL (393.79 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (9.84 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.5 mg/mL (9.84 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.5 mg/mL (9.84 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	3.9379 mL	19.6897 mL	39.3794 mL
	5 mM	0.7876 mL	3.9379 mL	7.8759 mL
	10 mM	0.3938 mL	1.9690 mL	3.9379 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
