Bcl-2-IN-10 is an active Bcl-2 inhibitor that releases up to four molecules of nitric oxide (NO). Bcl-2-IN-10 is cytotoxic against human leukemia, breast, and lung cancer/tumor cells. Bcl-2-IN-10 can cause apoptosis and arrest the cell cycle in the G2/M phase, and may be utilized in cancer-related research.

Physicochemical Properties

Molecular Formula	C22H25N11O12
Molecular Weight	635.50
Exact Mass	635.168
CAS #	2773354-28-0
PubChem CID	138521331
Appearance	Typically exists as solid at room temperature
LogP	4.3
Hydrogen Bond Donor Count	0
Hydrogen Bond Acceptor Count	17
Rotatable Bond Count	8
Heavy Atom Count	45
Complexity	1120
Defined Atom Stereocenter Count	0

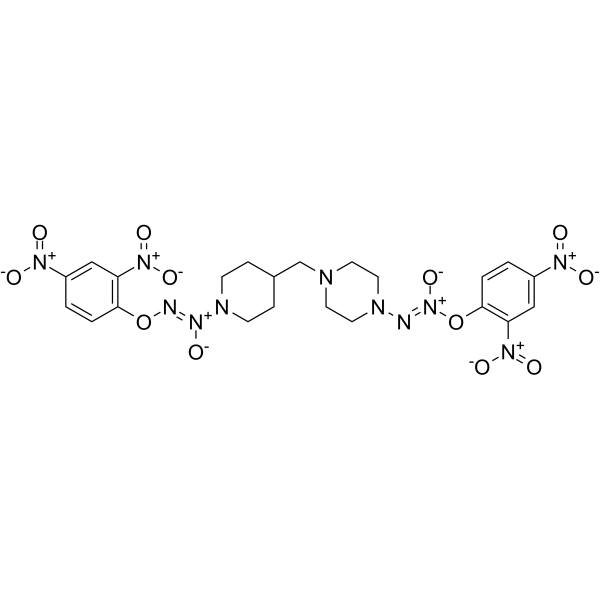

SMILES	C1CN(CCC1CN2CCN(CC2)/N=[N+](\[O-])/OC3=C(C=C(C=C3)[N+](=O)[O-])[N+](=O)[O-])/[N+](=N/OC4=C(C=C(C=C4)[N+](=O)[O-])[N+](=O)[O-])/[O-]
InChi Key	JEIOWLGOKGZEEN-QBLFJXEASA-N
InChi Code	InChI=1S/C22H25N11O12/c34-28(35)17-1-3-21(19(13-17)30(38)39)44-24-32(42)27-7-5-16(6-8-27)15-25-9-11-26(12-10-25)23-33(43)45-22-4-2-18(29(36)37)14-20(22)31(40)41/h1-4,13-14,16H,5-12,15H2/b32-24-,33-23+
Chemical Name	(E)-(2,4-dinitrophenoxy)-[4-[[1-[(Z)-(2,4-dinitrophenoxy)imino-oxidoazaniumyl]piperidin-4-yl]methyl]piperazin-1-yl]imino-oxidoazanium
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	Steroid sulfatase-IN-2 (compound 1) inhibits several cancer cells with an IC50 range from 1.26 μM to 17.86 μM, over a 72-hour period (about 0-20 μM) [1]. Up to four molecules of nitric oxide are released by steroid sulfatase-IN-2 (1 μM, 5 hours) [1]. Steroid sulfatase-IN-2 (8 μM, 8-72 h) stops leukemia cells in the G2/M phase, raises the Bax/Bcl-2 ratio, and causes apoptosis in CCRF-CEM cells via the MAPKs pathway [1].
Cell Assay	Apoptosis analysis[1] Cell Types: CEM Cell Tested Concentrations: 8 μM Incubation Duration: 8, 24, 48 or 72 hrs (hours) Experimental Results: Apoptosis was induced in a time- and dose-dependent manner. Cell cycle analysis[1] Cell Types: CEM Cell Tested Concentrations: 8 μM Incubation Duration: 8, 24, 48 or 72 hrs (hours) Experimental Results: Cell arrest in G2/M phase. Western Blot Analysis [1] Cell Types: CEM Cell Tested Concentrations: 0-8 μM Incubation Duration: 72 h Experimental Results: The levels of JNK and p38 increased, and the levels of phosphorylated JNK and p38 increased. Bcl-2 levels diminished and pro-apoptotic Bax levels increased in a time- and dose-dependent manner.
References	[1]. Xun Ji, et al. Double-component diazeniumdiolate derivatives as anti-cancer agents. Bioorg Med Chem. 2020 Apr 15;28(8):115405.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.5736 mL	7.8678 mL	15.7356 mL
	5 mM	0.3147 mL	1.5736 mL	3.1471 mL
	10 mM	0.1574 mL	0.7868 mL	1.5736 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
