BP Fluor 350 NHS ester is an amine-reactive, water-soluble, blue-emitting dye designed to specifically and efficiently modify primary amines at pH 7-9 to form stable covalent amide bonds.

Physicochemical Properties

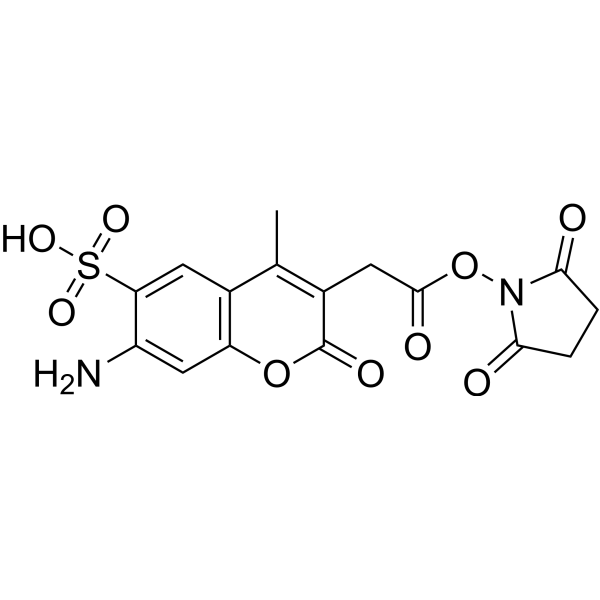

Molecular Formula	C16H14N2O9S
Molecular Weight	410.36
CAS #	200554-19-4
PubChem CID	15512551
Appearance	Typically exists as solids at room temperature
Density	1.74±0.1 g/cm3(Predicted)
LogP	0
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	10
Rotatable Bond Count	5
Heavy Atom Count	28
Complexity	857
Defined Atom Stereocenter Count	0
SMILES	CC1=C(C(=O)OC2=CC(=C(C=C12)S(=O)(=O)O)N)CC(=O)ON3C(=O)CCC3=O
Synonyms	Alexa Fluor 350; BP Fluor 350 NHS Ester; 200554-19-4; 7-Amino-3-(2-((2,5-dioxopyrrolidin-1-yl)oxy)-2-oxoethyl)-4-methyl-2-oxo-2H-chromene-6-sulfonic acid; 7-amino-3-[2-(2,5-dioxopyrrolidin-1-yl)oxy-2-oxoethyl]-4-methyl-2-oxochromene-6-sulfonic acid; APDye 350 NHS Ester; 7-amino-4-methyl-6-sulfocoumarin-3-acetic acid; SCHEMBL1505464;
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	Fluorescent Dye
ln Vitro	Sensitive methods have been developed to measure laser-induced fluorescence from trapped ions by reducing the detection of background scattering to zero levels during the laser excitation pulse. The laser beam diameter has been reduced to approximately 150 microm to eliminate scattering on trap apertures and the resulting laser-ion interaction is limited to a volume of approximately 10(-5) cm which is approximately 0.03-0.15 of the total ion cloud volume depending on experimental conditions. The detection optics collected fluorescence only from within the solid angle defined by laser-ion interaction volume. Rhodamine 640 and Alexa Fluor 350 ions, commonly used as fluorescence resonance energy transfer (FRET) fluorophores, were generated in the gas phase by using electrospray ionization and injected into a radiofrequency Paul trap where they were stored and exposed to Nd:YAG laser pulses at 532 and 355 nm for times up to 10 m. Fluorescence emitted by these ions was investigated for several trap q(z) values and ion cloud temperatures. Analysis of photon statistics indicated an average of approximately 10 photons were incident on the PMT detector per 15 ns pulse for approximately 10(3) trapped ions in the interaction volume. Fluorescence measurements displayed a dependence on trapped ion number which were consistent with calculations of the space charge limited ion density. To investigate the quantitative capability of these fluorescence techniques, the laser-induced fragmentation of trapped Alexa Fluor 350 ions was measured and compared with a rate equation model of the dynamics. Decay of the fluorescence signal as well as the parent ion number compared closely with quantitative predictions of the photofragmentation model [1].
References	[1]. Pulsed fluorescence measurements of trapped molecular ions with zero background detection. J Am Soc Mass Spectrom. 2002 Jun;13(6):696-708.
Additional Infomation	Alexa Fluor 350 is a chromenone, a pyrrolidinone and an organosulfonic acid. It has a role as a fluorochrome.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.4369 mL	12.1844 mL	24.3688 mL
	5 mM	0.4874 mL	2.4369 mL	4.8738 mL
	10 mM	0.2437 mL	1.2184 mL	2.4369 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
