Physicochemical Properties
| Molecular Formula | C36H51BF2N2O |
| Molecular Weight | 576.61 |
| Exact Mass | 576.406 |
| CAS # | 878557-19-8 |
| PubChem CID | 11642697 |
| Appearance | Yellow to orange solid powder |
| LogP | 8.162 |
| Hydrogen Bond Donor Count | 1 |
| Hydrogen Bond Acceptor Count | 4 |
| Rotatable Bond Count | 4 |
| Heavy Atom Count | 42 |
| Complexity | 1240 |
| Defined Atom Stereocenter Count | 8 |

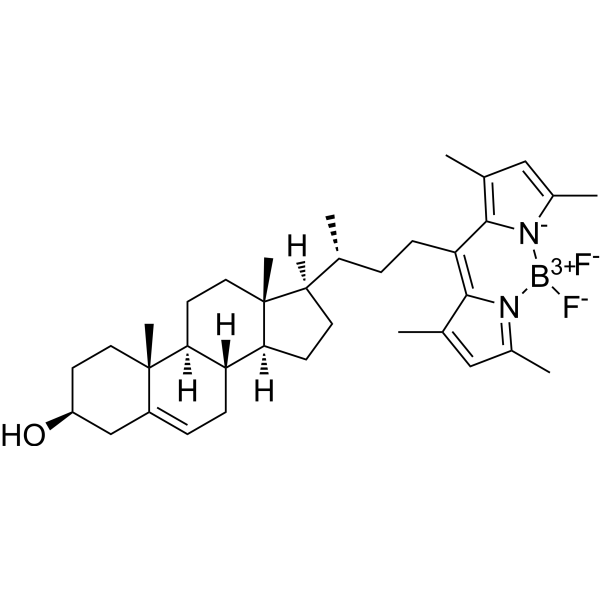

| SMILES | [B-]1(N2C(=CC(=C2C(=C3[N+]1=C(C=C3C)C)CC[C@@H](C)[C@H]4CC[C@@H]5[C@@]4(CC[C@H]6[C@H]5CC=C7[C@@]6(CC[C@@H](C7)O)C)C)C)C)(F)F |
| InChi Key | CFFWELDLDWZNRO-ZVEUZXBYSA-N |
| InChi Code | InChI=1S/C36H51BF2N2O/c1-21(8-10-29-33-22(2)18-24(4)40(33)37(38,39)41-25(5)19-23(3)34(29)41)30-12-13-31-28-11-9-26-20-27(42)14-16-35(26,6)32(28)15-17-36(30,31)7/h9,18-19,21,27-28,30-32,42H,8,10-17,20H2,1-7H3/t21-,27+,28+,30-,31+,32+,35+,36-/m1/s1 |
| Chemical Name | (3S,8S,9S,10R,13R,14S,17R)-17-[(2R)-4-(2,2-difluoro-4,6,10,12-tetramethyl-3-aza-1-azonia-2-boranuidatricyclo[7.3.0.03,7]dodeca-1(12),4,6,8,10-pentaen-8-yl)butan-2-yl]-10,13-dimethyl-2,3,4,7,8,9,11,12,14,15,16,17-dodecahydro-1H-cyclopenta[a]phenanthren-3-ol |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: This product requires protection from light (avoid light exposure) during transportation and storage. |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| ln Vitro | BODIPY-cholesterol assay: The analogue is reconstituted in DMSO to a stock concentration of 1–10 μM in order to provide a stock solution for this assay[1]. PBS (or other buffer)-diluted cells are rinsed (300× g, 10 min) to eliminate surplus diluent, and the loose pellet is then resuspended in vehicle media at the appropriate concentration[1]. BODIPY-cholesterol (final concentration of 0.5–5 μM) is added to cell suspensions, combined well, and incubated at 37 °C for 10–20 minutes[1]. Before being subjected to a flow cytometric examination, the cells are incubated for two hours after being diluted with each of the capacitation medium conditions as described in Incubation media to a final concentration[1]. |
| References |
[1]. Potential of BODIPY-cholesterol for analysis of cholesterol transport and diffusion in living cells. Chem Phys Lipids. 2016 Jan;194:12-28. [2]. BODIPY-cholesterol: a new tool to visualize sterol trafficking in living cells and organiss. Traffic. 2008 Nov;9(11):1839-49. |
Solubility Data
| Solubility (In Vitro) |
DMSO: 1 mg/mL (1.73 mM) H2O: < 0.1 mg/mL |
| Solubility (In Vivo) |
Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently. (Please use freshly prepared in vivo formulations for optimal results.) |
| Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
| 1 mM | 1.7343 mL | 8.6714 mL | 17.3427 mL | |
| 5 mM | 0.3469 mL | 1.7343 mL | 3.4685 mL | |
| 10 mM | 0.1734 mL | 0.8671 mL | 1.7343 mL |
