BODIPY 558/568 C12 is a BODIPY dye. BODIPY dye is a small molecule dye with strong UV absorption ability. Its fluorescence peak is relatively sharp and its quantum yield is high. It is relatively insensitive to the polarity and pH of the environment and, therefore, is relatively stable under different physiological conditions. Due to the asymmetry of its structure, BODIPY has a variety of analogue structural products. BODIPY lipid droplet dye can penetrate the cell membrane well into the interior of the cell and perform specific staining by localizing on the polar lipids in the cell. Therefore, the dye may be utilized to label living cells and fixed cells. Maximum excitation/emission wavelength: 558/568 nm.

Physicochemical Properties

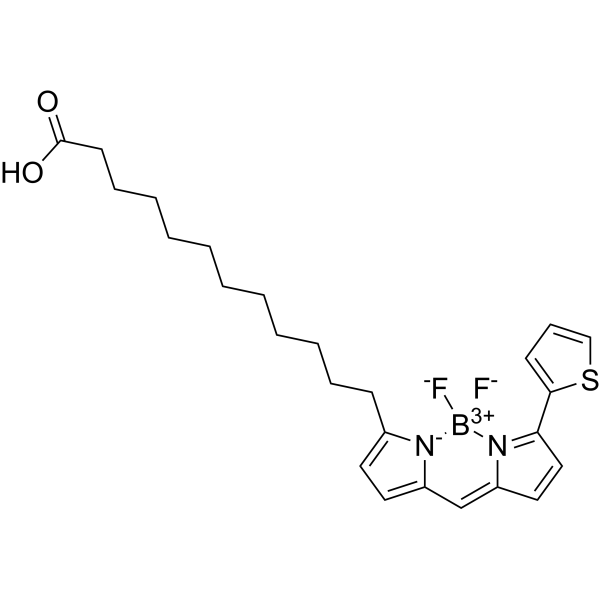

Molecular Formula	C25H30BN2O2F2S-.H+
Molecular Weight	472.399
Exact Mass	472.216
CAS #	158757-84-7
PubChem CID	156588920
Appearance	Brown to breen solid powder
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	6
Rotatable Bond Count	12
Heavy Atom Count	33
Complexity	796
Defined Atom Stereocenter Count	0
SMILES	[F-][B+3]1([N-]2C(=CC=C2C=C2C=CC(C3SC=CC=3)=N12)CCCCCCCCCCCC(=O)[O-])[F-].[H+]
InChi Key	PHUIDILRCYWCMI-UHFFFAOYSA-N
InChi Code	InChI=1S/C25H31BF2N2O2S/c27-26(28)29-20(11-8-6-4-2-1-3-5-7-9-13-25(31)32)14-15-21(29)19-22-16-17-23(30(22)26)24-12-10-18-33-24/h10,12,14-19H,1-9,11,13H2,(H,31,32)
Chemical Name	12-(2,2-difluoro-12-thiophen-2-yl-3-aza-1-azonia-2-boranuidatricyclo[7.3.0.03,7]dodeca-1(12),4,6,8,10-pentaen-4-yl)dodecanoate;hydron
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment (e.g. under nitrogen), avoid exposure to moisture and light.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro

Guidelines for usage 1. 1.1 Prepare the stock solution for BODIPY558/568C12 preparation. To make a 10 mM stock solution, dilute 1 milligram of BODIPY558/568C12 with 382 μL of anhydrous DMSO. Note: The BODIPY558/568C12 storage solution should be aliquoted and kept at -20°C or -80°C in the dark. 1.2 Making the working solution Prepare a 1–10 μM BODIPY558/568C12 working solution using either hot serum-free cell culture medium or diluted PBS storage solution. Note: Please prepare the BODIPY558/568C12 working fluid for usage by adjusting its concentration to suit the current circumstances. 2. Suspended cell staining (2.1): Centrifuge cells, add PBS, then wash twice for five minutes each time. 2.2 Add 1 mL of BODIPY558/568C12 working solution and incubate at room temperature for 5-30 minutes, or until the cell density reaches 1×106/mL. 2.3 Centrifuge at 400g for 3–4 minutes, discarding the supernatant. 2.4 After adding PBS, wash the cells twice for five minutes each. 2.5 Re-suspend the cells in 1 milliliter of PBS or serum-free media, and use a flow cytometer or fluorescence microscope to observe. 3. Adherent cell staining (3.1): Grow adherent cells on sterile coverslips. 3.2 Aspirate extra culture medium after removing the coverslip from the medium. 3.3 Cover the cells fully with 100 μL of the dye working solution, shake gently, and allow incubate for five to thirty minutes. 3.4 Aspirate the dye working solution, rinse with culture medium two or three times for five minutes each, and use a flow cytometer or fluorescence microscope to monitor. Storage temperature: -20°C, sealed against light for a year. Observations 1. Please modify the BODIPY558/568C12 working solution's concentration and incubation period to reflect the current circumstances. 2. It is advised that the experiment include a positive control. Before performing the next tests, incubate the cells in the control group with 30 μM oleic acid for 8 hours. 3. This product may not be used for clinical diagnosis or treatment, nor may it be included into food or medication. It is intended solely for professional use in scientific study. 4. Please wear disposable gloves and a lab coat for your health and safety.

References

[1]. Human cytomegalovirus infection induces adipocyte-like lipogenesis through activation of sterol regulatory element binding protein 1. J Virol. 2012 Mar;86(6):2942-9. [2]. BODIPY 493/503 Staining of Neutral Lipid Droplets for Microscopy and Quantification by Flow Cytometry. Bio Protoc. 2016 Sep 5;6(17):e1912.

Solubility Data

Solubility (In Vitro)

DMSO: 125 mg/mL (264.61 mM)

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.1169 mL	10.5843 mL	21.1685 mL
	5 mM	0.4234 mL	2.1169 mL	4.2337 mL
	10 mM	0.2117 mL	1.0584 mL	2.1169 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
