BIMU 8 is a potent and specific 5-HT4 agonist/activator with EC50s of 18 nM, 77 nM and 540 nM for the wild-type 5HT4 receptor, T3.36A and W6.48A mutant 5-HT4 receptors.

Physicochemical Properties

Molecular Formula	C19H26CLN4O2-
Molecular Weight	377.89
Exact Mass	378.182
CAS #	134296-40-5
PubChem CID	5311028
Appearance	White to off-white solid powder
LogP	3.511
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	3
Rotatable Bond Count	2
Heavy Atom Count	26
Complexity	538
Defined Atom Stereocenter Count	2
SMILES	Cl[H].O=C(N1C(N(C([H])(C([H])([H])[H])C([H])([H])[H])C2=C([H])C([H])=C([H])C([H])=C12)=O)N([H])C1([H])C([H])([H])[C@]2([H])C([H])([H])C([H])([H])[C@]([H])(C1([H])[H])N2C([H])([H])[H]
InChi Key	NQYXXIUVFVOJCX-XZPOUAKSSA-N
InChi Code	InChI=1S/C19H26N4O2.ClH/c1-12(2)22-16-6-4-5-7-17(16)23(19(22)25)18(24)20-13-10-14-8-9-15(11-13)21(14)3;/h4-7,12-15H,8-11H2,1-3H3,(H,20,24);1H/t13?,14-,15+;

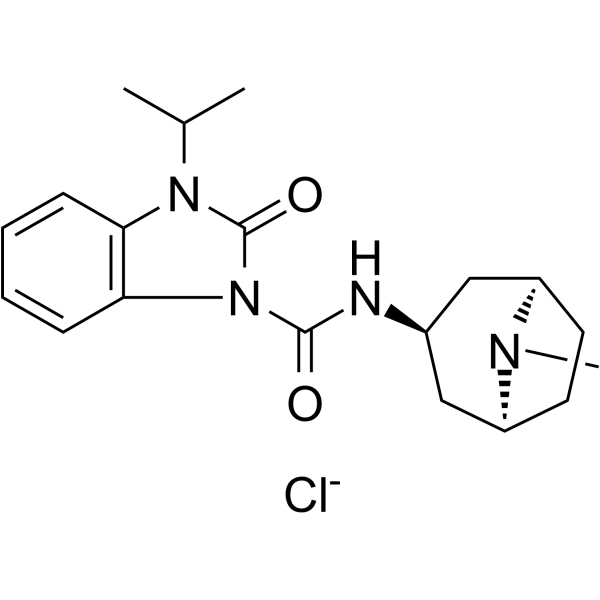

Chemical Name	N-[(1R,5S)-8-methyl-8-azabicyclo[3.2.1]octan-3-yl]-2-oxo-3-propan-2-ylbenzimidazole-1-carboxamide;hydrochloride
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment, avoid exposure to moisture.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	5-HT4 Receptor 18 nM (EC50) T3.36A-5-HT4 77 nM (EC50) W6.48A-5-HT4 540 nM (EC50)
ln Vitro	BIMU 8 (0.003-0.1 µM) enhances the magnitude of excitatory postsynaptic potentials (EPSPs) in the myenteric neurons of the guinea pig ileum, but it has no effect on any neuron's membrane potential[3].
ln Vivo	BIMU 8 (20–30 mg/kg sc and 60 mg/kg po in mice; 20 mg/kg ip in rats) significantly reduces pain in mice and rats. A BIMU 8 (10 μg/mouse) intracerebroventricular injection causes an antinociception in mice that is comparable in strength to that of available sc, ip, or po[1]. These doses are essentially useless when administered parenterally.
References	[1]. C Ghelardini, et al. Central cholinergic antinociception induced by 5HT4 agonists: BIMU 1 and BIMU 8. Life Sci. 1996;58(25):2297-309. [2]. Lucie P Pellissier, et al. Conformational toggle switches implicated in basal constitutive and agonist-induced activated states of 5-hydroxytryptamine-4 receptors. Mol Pharmacol. 2009 Apr;75(4):982-90. [3]. H Pan , et al. 5-HT1A and 5-HT4 receptors mediate inhibition and facilitation of fast synaptic transmission in enteric neurons. Am J Physiol. 1994 Feb;266(2 Pt 1):G230-8.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.6463 mL	13.2314 mL	26.4627 mL
	5 mM	0.5293 mL	2.6463 mL	5.2925 mL
	10 mM	0.2646 mL	1.3231 mL	2.6463 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
