Azido-PEG24-NHS ester is a PROTAC (PROteolysis TArgeting Chimera) linker of the Polyethylene glycol (PEG) category, may be utilized to prepare PROTAC protein degraders. Azido-PEG24-NHS ester is a reagent for click chemistry. It has an Azide (N3) moiety and could undergo CuAAc (copper-catalyzed azide-alkyne cycloaddition reaction) with compounds bearing an Alkyne group. SPAAC (Strain-promoted alkyne-azide cycloaddition) may also happen with compounds bearing a BCN or DBCO group.

Physicochemical Properties

Molecular Formula	C₅₅H₁₀₄N₄O₂₈
Molecular Weight	1269.42
Exact Mass	1268.683
CAS #	2375600-46-5
PubChem CID	126480440
Appearance	White to off-white solid powder
LogP	-3.5
Hydrogen Bond Donor Count	0
Hydrogen Bond Acceptor Count	30
Rotatable Bond Count	77
Heavy Atom Count	87
Complexity	1480
Defined Atom Stereocenter Count	0
InChi Key	MGAQCNKHLTVSCR-UHFFFAOYSA-N
InChi Code	InChI=1S/C55H104N4O28/c56-58-57-4-6-64-8-10-66-12-14-68-16-18-70-20-22-72-24-26-74-28-30-76-32-34-78-36-38-80-40-42-82-44-46-84-48-50-86-52-51-85-49-47-83-45-43-81-41-39-79-37-35-77-33-31-75-29-27-73-25-23-71-21-19-69-17-15-67-13-11-65-9-7-63-5-3-55(62)87-59-53(60)1-2-54(59)61/h1-52H2

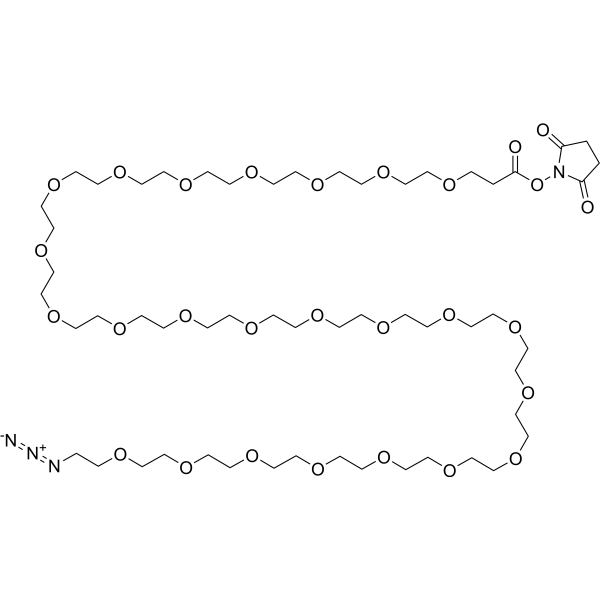

Chemical Name	(2,5-dioxopyrrolidin-1-yl) 3-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-(2-azidoethoxy)ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]propanoate
Synonyms	AzidoPEG24NHS ester; Azido PEG24 NHS ester
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	One ligand is for an E3 ubiquitin ligase, and the other is for the target protein; these two ligands are joined by a linker to form PROTACs. The intracellular ubiquitin-proteasome system is utilized by PROTACs to specifically destroy target proteins[1].
References	[1]. An S, et al. Small-molecule PROTACs: An emerging and promising approach for the development of targeted therapy drugs. EBioMedicine. 2018 Oct;36:553-562

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~78.78 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (1.97 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.5 mg/mL (1.97 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.5 mg/mL (1.97 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	0.7878 mL	3.9388 mL	7.8776 mL
	5 mM	0.1576 mL	0.7878 mL	1.5755 mL
	10 mM	0.0788 mL	0.3939 mL	0.7878 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
