Physicochemical Properties
| Molecular Formula | C20H25N3O3 |
| Molecular Weight | 355.43 |
| Exact Mass | 355.189 |
| CAS # | 545445-44-1 |
| PubChem CID | 22352226 |
| Appearance | White to light yellow solid powder |
| Density | 1.3±0.1 g/cm3 |
| Boiling Point | 625.0±55.0 °C at 760 mmHg |
| Flash Point | 331.8±31.5 °C |
| Vapour Pressure | 0.0±1.8 mmHg at 25°C |
| Index of Refraction | 1.611 |
| LogP | 1.67 |
| Hydrogen Bond Donor Count | 0 |
| Hydrogen Bond Acceptor Count | 4 |
| Rotatable Bond Count | 3 |
| Heavy Atom Count | 26 |
| Complexity | 563 |
| Defined Atom Stereocenter Count | 0 |

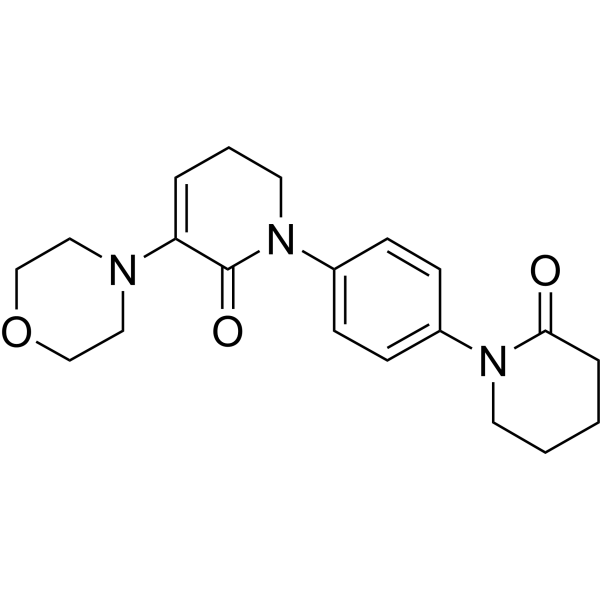

| SMILES | O1C([H])([H])C([H])([H])N(C([H])([H])C1([H])[H])C1=C([H])C([H])([H])C([H])([H])N(C2C([H])=C([H])C(=C([H])C=2[H])N2C(C([H])([H])C([H])([H])C([H])([H])C2([H])[H])=O)C1=O |
| InChi Key | SCVWQFDPLBFZAP-UHFFFAOYSA-N |
| InChi Code | InChI=1S/C20H25N3O3/c24-19-5-1-2-10-22(19)16-6-8-17(9-7-16)23-11-3-4-18(20(23)25)21-12-14-26-15-13-21/h4,6-9H,1-3,5,10-15H2 |
| Chemical Name | 5-morpholin-4-yl-1-[4-(2-oxopiperidin-1-yl)phenyl]-2,3-dihydropyridin-6-one |
| Synonyms | 545445-44-1; 3-Morpholino-1-(4-(2-oxopiperidin-1-yl)phenyl)-5,6-dihydropyridin-2(1H)-one; 5-morpholin-4-yl-1-[4-(2-oxopiperidin-1-yl)phenyl]-2,3-dihydropyridin-6-one; 5,6-Dihydro-3-(4-morpholinyl)-1-[4-(2-oxo-1-piperidinyl)phenyl]-2(1H)-pyridinone; 3-Morpholin-4-yl-1-[4-(2-oxopiperidin-1-yl)phenyl]-5,6-dihydro-1H-pyridin-2-one; 3-Morpholino-1-[4-(2-oxo-1-piperidyl)phenyl]-5,6-dihydropyridin-2(1H)-one; Anticancer agent 209; MFCD19440881; |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| Targets | Anticancer/antitumor |
| ln Vitro | In vitro cell viabilities of complex 1 with various concentrations on SW620 and HCT116 were evaluated by MTT assay with the anticancer drug Dox (Doxorubicin) as the positive control. The complex 1 shows increasing inhibition effect against the two kinds of cancer cells with the increasing dose of the complex 1 used. About 56% of SW620 cells were killed under 500 g/mL of 1, which is near to the value of Dox. As for the HCT116 cancer cells, complex 1 shows better anticancer activity than that of Dox with more than 70% of HCT116 cancer cells were killed under 500g/mL of 1. The above experimental results indicate that complex 1 may act as novel anticancer drug in the future [1]. |
| Cell Assay | In vitro cytotoxicity of 1 was evaluated by MTT (3-(4,5-dimethyl-2-thiazolyl)-2,5-diphenyl-2-Htetrazolium bromide) assays against the SW620 and HCT116 cancer cells. Briefly, the above mentioned cells were seeded in a 96-well plate in which cells density is 5000 cells per test well, and cultured overnight at 37◦C in a 5% CO2 incubator. The complex 1 was added to respective test well and the cells were cultured for 24 h in 5% CO2. The concentrations of 1 were 25, 100, 200, 500g/mL, respectively. Following incubation, MTT solution (20 mL) was added into each cell and cultured for another 4 h. Then the supernatant was replaced with 150 L of dimethyl sulfoxide (DMSO) each well, following by monitored using a microplate reader (Therom Multiskan MK3) at 490 nm. The cytotoxicity was estimated by the percentage of cell viability compared to untreated control cells [1]. |
| References |
[1]. Synthesis, crystal structure, anti-colon cancer activity of a new heterocycles compound. Main Group Chemistry, 18(4), 421–426. |
| Additional Infomation | In conclusion, we synthesized a novel heterocycles derivative and characterized them via IR, 1H NMR, HRMS, and single crystal X-ray crystallography. The MTT assay shows that complex 1 may act as novel anticancer drug in the future for its in vitro anticancer activities against two human colon cancer lines SW620 and HCT116. [1] |
Solubility Data
| Solubility (In Vitro) | May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples |
| Solubility (In Vivo) |
Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently. (Please use freshly prepared in vivo formulations for optimal results.) |
| Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
| 1 mM | 2.8135 mL | 14.0675 mL | 28.1349 mL | |
| 5 mM | 0.5627 mL | 2.8135 mL | 5.6270 mL | |
| 10 mM | 0.2813 mL | 1.4067 mL | 2.8135 mL |
