Amino-PEG13-amine is a PROTAC (PROteolysis TArgeting Chimera) linker of the Polyethylene glycol (PEG) category, may be utilized to prepare PROTAC protein degraders.

Physicochemical Properties

Molecular Formula	C28H60N2O13
Molecular Weight	632.781610488892
Exact Mass	632.409
CAS #	1228119-65-0
PubChem CID	85786999
Appearance	Typically exists as solid at room temperature
LogP	-3.6
Hydrogen Bond Donor Count	2
Hydrogen Bond Acceptor Count	15
Rotatable Bond Count	40
Heavy Atom Count	43
Complexity	448
Defined Atom Stereocenter Count	0
InChi Key	SUSUFCWBLAIXDN-UHFFFAOYSA-N
InChi Code	InChI=1S/C28H60N2O13/c29-1-3-31-5-7-33-9-11-35-13-15-37-17-19-39-21-23-41-25-27-43-28-26-42-24-22-40-20-18-38-16-14-36-12-10-34-8-6-32-4-2-30/h1-30H2

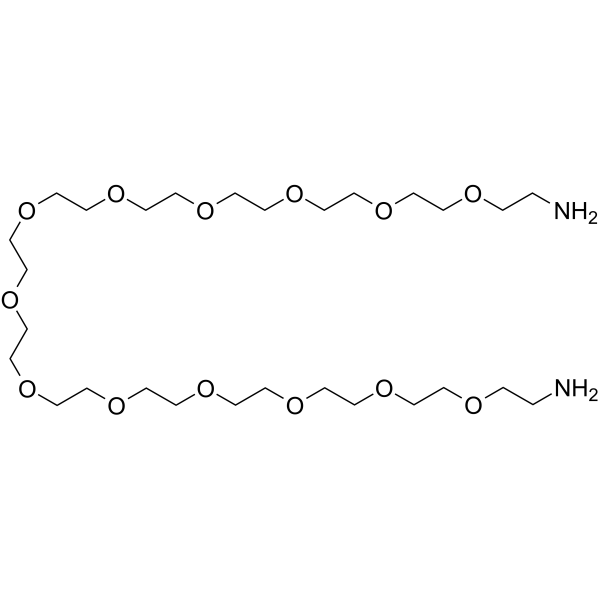

Chemical Name	2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-(2-aminoethoxy)ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethanamine
Synonyms	AminoPEG13amine; Amino PEG13 amine
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	One ligand is for an E3 ubiquitin ligase, and the other is for the target protein; these two ligands are joined by a linker to form PROTACs. The intracellular ubiquitin-proteasome system is utilized by PROTACs to specifically destroy target proteins[1].
References	[1]. An S, et al. Small-molecule PROTACs: An emerging and promising approach for the development of targeted therapy drugs. EBioMedicine. 2018 Oct;36:553-562

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~158.03 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (3.95 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.5 mg/mL (3.95 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.5803 mL	7.9016 mL	15.8033 mL
	5 mM	0.3161 mL	1.5803 mL	3.1607 mL
	10 mM	0.1580 mL	0.7902 mL	1.5803 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
