Amgen-23 (compound 23) is a potent inhibitor of sphingosine kinase (SPHK) with IC50s of 20 nM and 1.6 μM for SPHK1 and SPHK2, respectively. Amgen-23 could be used in anti-cancer research.

Physicochemical Properties

Molecular Formula	C23H25CL2N3O2S
Molecular Weight	478.43
Exact Mass	477.104
CAS #	1448706-15-7
PubChem CID	71627420
Appearance	White to off-white solid powder
LogP	5.3
Hydrogen Bond Donor Count	3
Hydrogen Bond Acceptor Count	6
Rotatable Bond Count	7
Heavy Atom Count	31
Complexity	555
Defined Atom Stereocenter Count	2
SMILES	N1(CCC2=CC=C(NC3=NC(C4=CC=C(Cl)C(Cl)=C4)=CS3)C=C2)CC[C@H](O)C[C@@H]1CO
InChi Key	SQJKFWCRPARYPY-MOPGFXCFSA-N
InChi Code	InChI=1S/C23H25Cl2N3O2S/c24-20-6-3-16(11-21(20)25)22-14-31-23(27-22)26-17-4-1-15(2-5-17)7-9-28-10-8-19(30)12-18(28)13-29/h1-6,11,14,18-19,29-30H,7-10,12-13H2,(H,26,27)/t18-,19+/m1/s1

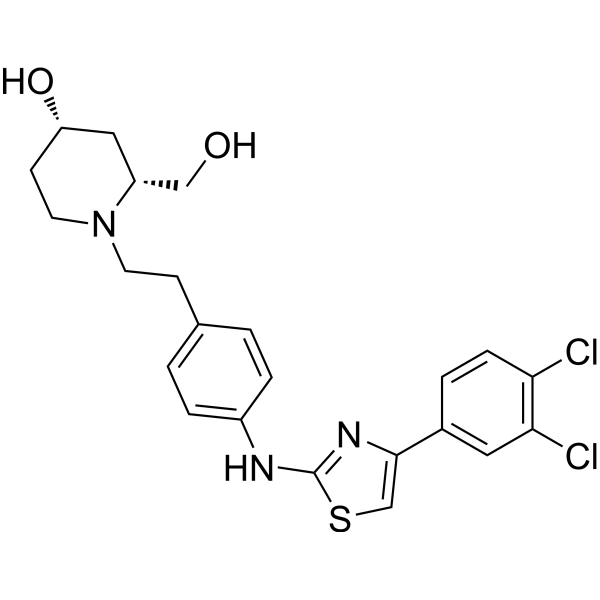

Chemical Name	(2R,4S)-1-[2-[4-[[4-(3,4-dichlorophenyl)-1,3-thiazol-2-yl]amino]phenyl]ethyl]-2-(hydroxymethyl)piperidin-4-ol
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

References

[1]. Structure guided design of a series of sphingosine kinase (SphK) inhibitors. Bioorg Med Chem Lett. 2013 Aug 15;23(16):4608-16.

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~209.02 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (5.23 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: 2.5 mg/mL (5.23 mM) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), suspension solution; with ultrasonication. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.5 mg/mL (5.23 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.0902 mL	10.4508 mL	20.9017 mL
	5 mM	0.4180 mL	2.0902 mL	4.1803 mL
	10 mM	0.2090 mL	1.0451 mL	2.0902 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
