Altropane is a novel and potent SPECT imaging agent

Physicochemical Properties

Molecular Formula	C18H21NO2FI
Molecular Weight	429.26724
Exact Mass	429.06
CAS #	180468-34-2
PubChem CID	6440180
Appearance	Typically exists as solid at room temperature
Density	1.498g/cm3
Boiling Point	440.7ºC at 760mmHg
Flash Point	220.3ºC
Vapour Pressure	5.76E-08mmHg at 25°C
Index of Refraction	1.586
LogP	3.821
Hydrogen Bond Donor Count	0
Hydrogen Bond Acceptor Count	4
Rotatable Bond Count	5
Heavy Atom Count	23
Complexity	450
Defined Atom Stereocenter Count	4
SMILES	I/C=C/CN1[C@H]2CC[C@@H]1[C@H]([C@H](C2)C1C=CC(F)=CC=1)C(OC)=O
InChi Key	GTQLIPQFXVKRKJ-UNSMHXHVSA-N
InChi Code	InChI=1S/C18H21FINO2/c1-23-18(22)17-15(12-3-5-13(19)6-4-12)11-14-7-8-16(17)21(14)10-2-9-20/h2-6,9,14-17H,7-8,10-11H2,1H3/b9-2+/t14-,15+,16+,17-/m0/s1

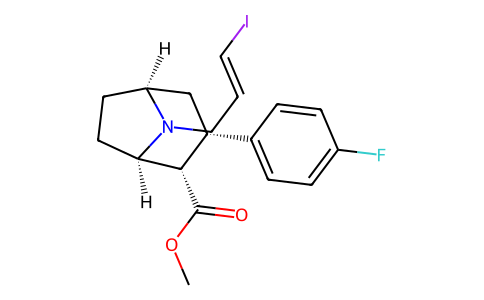

Chemical Name	methyl (1R,2S,3S,5S)-3-(4-fluorophenyl)-8-[(E)-3-iodoprop-2-enyl]-8-azabicyclo[3.2.1]octane-2-carboxylate
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Additional Infomation

Altropane is an azabicycloalkane. It derives from a hydride of a tropane. Boston Life Sciences (BLS) is developing Altropane as a potential radio-imaging agent to be used with single photon emission tomography (SPECT), for the early diagnosis of Parkinson's disease (PD) and attention deficit hyperactivity disorder (ADHD). See also: Altropane I-123 (annotation moved to). Drug Indication Investigated for use/treatment in attention deficit/hyperactivity disorder (ADHD), parkinson's disease, and pediatric indications. Mechanism of Action Positron emission tomography (PET) cameras are expensive and scarce, and the tests are non-reimbursable. A less costly and more available test such as a single photon emission computed tomography (SPECT) may be helpful in the diagnosis of early or atypical Parkinson's disease (PD) if its sensitivity is comparable to a PET scan. Altropane is an iodinated form of the N-allyl analog of WIN 35,428 which acts as a dopamine transport inhibitor. When radiolabeled with the gamma emitting isotope [123I], altropane serves as a SPECT ligand with high affinity and selectivity for the dopamine transporter. It is a good marker for dopamine neurons and is useful in detecting PD. Pharmacodynamics Altropane is a molecular-imaging agent that specifically binds to the dopamine transporter (DAT) protein found on the surface of dopamine-producing neurons, making it visible during SPECT imaging. Since most forms of Parkinsonian Syndromes result in a decreased number of dopamine-producing cells, it would be expected that these patients also have fewer DATs than do patients without PS. Thus, it is believed that altropane used in conjunction with SPECT imaging could be a useful test to distinguish Parkinsonian Syndrome tremors from non-Parkinsonian tremor: non-Parkinsonian patients would have more altropane-binding visible in the SPECT image, while Parkinsonian patients would have less.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.3295 mL	11.6477 mL	23.2954 mL
	5 mM	0.4659 mL	2.3295 mL	4.6591 mL
	10 mM	0.2330 mL	1.1648 mL	2.3295 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
