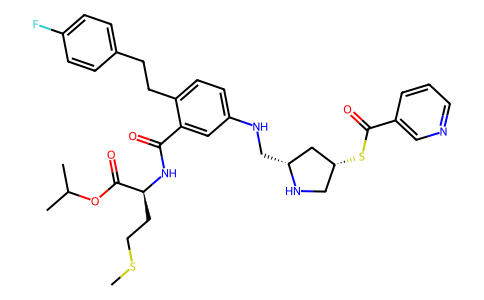

AZD-3409 is a novel and potent prenyl transferase inhibitor

Physicochemical Properties

Molecular Weight	652.842149496078
Exact Mass	652.255
CAS #	345915-10-8
PubChem CID	11377266
Appearance	Typically exists as solid at room temperature
LogP	6.317
Hydrogen Bond Donor Count	3
Hydrogen Bond Acceptor Count	10
Rotatable Bond Count	17
Heavy Atom Count	45
Complexity	938
Defined Atom Stereocenter Count	3
SMILES	S(C(C1C=NC=CC=1)=O)[C@@H]1CN[C@H](CNC2C=CC(CCC3C=CC(=CC=3)F)=C(C(N[C@H](C(=O)OC(C)C)CCSC)=O)C=2)C1
InChi Key	HKGUHEGKBLYKHY-QMOZSOIISA-N
InChi Code	InChI=1S/C34H41FN4O4S2/c1-22(2)43-33(41)31(14-16-44-3)39-32(40)30-18-27(13-10-24(30)9-6-23-7-11-26(35)12-8-23)37-20-28-17-29(21-38-28)45-34(42)25-5-4-15-36-19-25/h4-5,7-8,10-13,15,18-19,22,28-29,31,37-38H,6,9,14,16-17,20-21H2,1-3H3,(H,39,40)/t28-,29-,31-/m0/s1
Chemical Name	propan-2-yl (2S)-2-[[2-[2-(4-fluorophenyl)ethyl]-5-[[(2S,4S)-4-(pyridine-3-carbonylsulfanyl)pyrrolidin-2-yl]methylamino]benzoyl]amino]-4-methylsulfanylbutanoate
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ADME/Pharmacokinetics

Metabolism / Metabolites AZD3409 is converted to a thiol-ester intermediate, then, intracellularly, to a thiol-acid active species. Biological Half-Life 15–20 hours for the thiol-ester intermediate and 15–30 hours for the active thiol-acid metabolite.

Additional Infomation

AZD3409 is a farnesyl-transferase inhibitor (FAR) indicated for the treatment of solid tumors. Phase I trials were initiated January 2003, and were ongoing as of February 2004. As of February 2007 the development of AZD3409 had been discontinued. Drug Indication For the treatment of solid tumors. Mechanism of Action In preclinical studies, AZD3409 achieves up to 90% inhibition of FTase in tumors at well tolerated doses. In enzyme studies AZD3409 is also known to inhibit GGTase-1. Pharmacodynamics AZD3409 is a novel, oral, antitumor agent that acts as a prenyl transferase inhibitor. It has potentially broad antitumor activity both as monotherapy and in combination with other anticancer treatments. AZD3409 is a double pro-drug; its metabolism involves conversion to a thiol-ester intermediate, then, intracellularly, to a thiol-acid active species. Phase I trials were initiated January 2003, and were ongoing as of February 2004. Recent studies have shown that AZD3409 is a potent inhibitor of both prostate epithelial cell proliferation and cellular invasion, without an associated bone marrow cellular toxicity.

Solubility Data

Solubility (In Vitro)

May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.5318 mL	7.6588 mL	15.3177 mL
	5 mM	0.3064 mL	1.5318 mL	3.0635 mL
	10 mM	0.1532 mL	0.7659 mL	1.5318 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
