Caficrestat (Aldose reductase-IN-1) is an aldose reductase inhibitor (antagonist) with IC50 of 28.9 pM.

Physicochemical Properties

Molecular Formula	C17H10F3N5O3S
Molecular Weight	421.3532
Exact Mass	421.045
CAS #	1355612-71-3
PubChem CID	56639723
Appearance	White to off-white solid powder
Density	1.7±0.1 g/cm3
Boiling Point	632.1±65.0 °C at 760 mmHg
Flash Point	336.1±34.3 °C
Vapour Pressure	0.0±2.0 mmHg at 25°C
Index of Refraction	1.737
LogP	0.52
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	11
Rotatable Bond Count	4
Heavy Atom Count	29
Complexity	706
Defined Atom Stereocenter Count	0
InChi Key	YRGPAXAVTDMKDK-UHFFFAOYSA-N
InChi Code	InChI=1S/C17H10F3N5O3S/c18-17(19,20)8-1-2-11-9(5-8)23-12(29-11)7-25-16(28)15-14(21-3-4-22-15)10(24-25)6-13(26)27/h1-5H,6-7H2,(H,26,27)

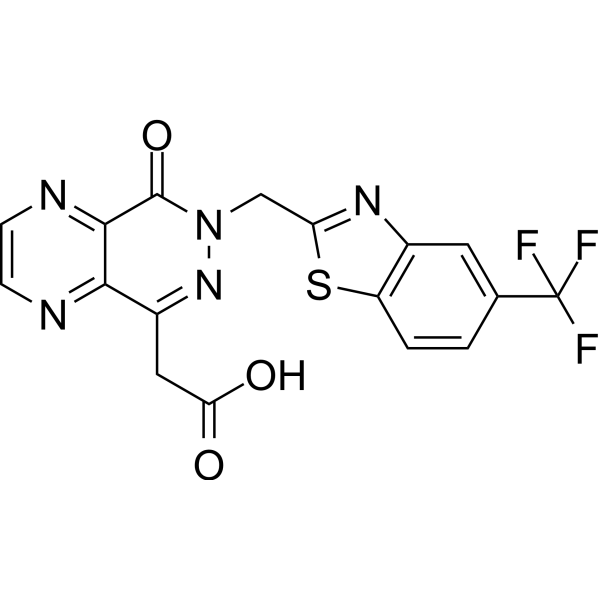

Chemical Name	2-[5-oxo-6-[[5-(trifluoromethyl)-1,3-benzothiazol-2-yl]methyl]pyrazino[2,3-d]pyridazin-8-yl]acetic acid
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

References	[1]. ALDOSE REDUCTASE INHIBITORS AND USES THEREOF.
Additional Infomation	AT-001 is under investigation in clinical trial NCT03062384 (AT-001 for Long-term Preservation of Brain Health in Aging).

Solubility Data

Solubility (In Vitro)

DMSO : ≥ 28 mg/mL (~66.45 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (5.93 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.5 mg/mL (5.93 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.5 mg/mL (5.93 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.3733 mL	11.8666 mL	23.7332 mL
	5 mM	0.4747 mL	2.3733 mL	4.7466 mL
	10 mM	0.2373 mL	1.1867 mL	2.3733 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
